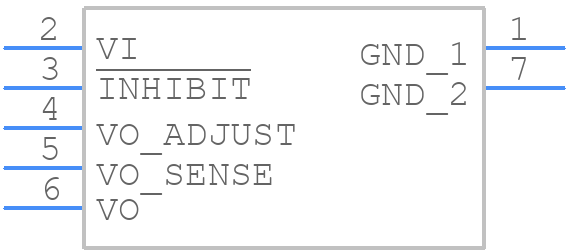

Part Symbol
-

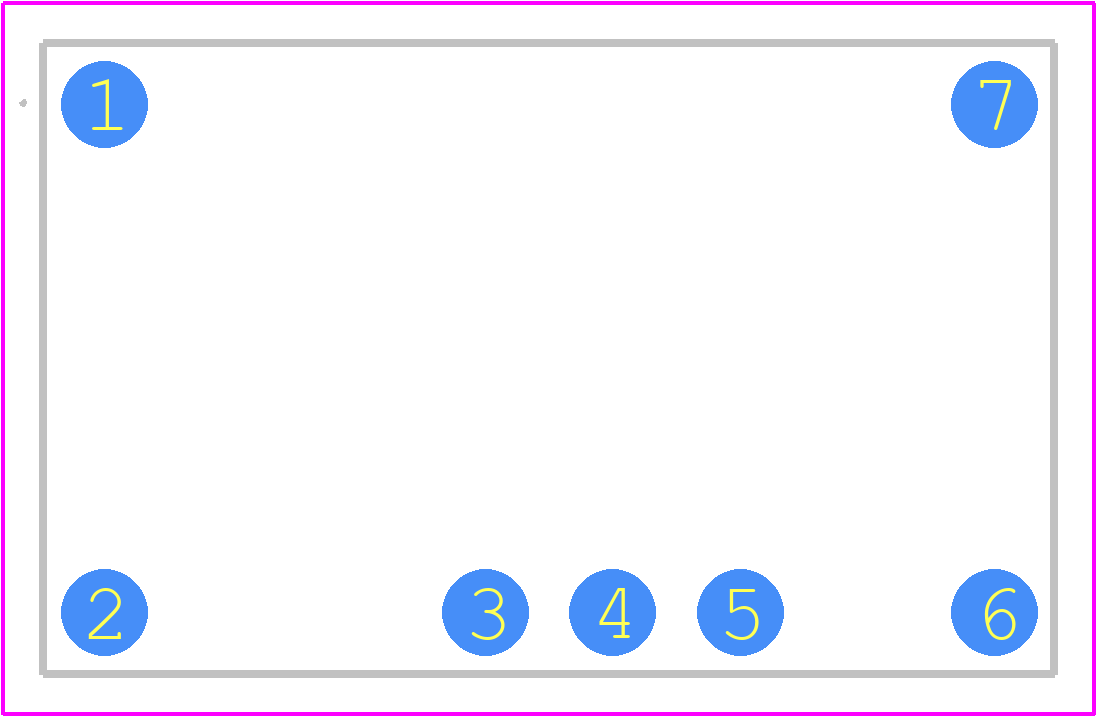

Footprint
-

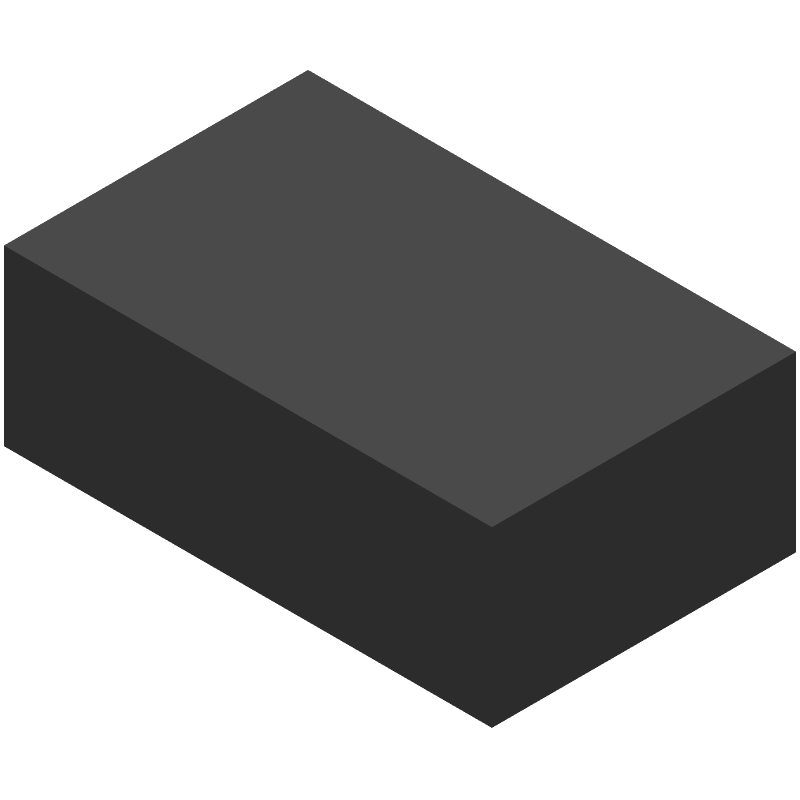

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PTN78060WAS by Texas Instruments
Results Overview of PTN78060WAS by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PTN78060WAS Information
PTN78060WAS by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| PTN78060WAS | Texas Instruments | 3-A, Wide-Input, Adjustable Switching Regulator Module 7-Surface Mount Module -40 to 85 | |
| PTN78060WAST | Texas Instruments | 3-A, Wide-Input, Adjustable Switching Regulator Module 7-Surface Mount Module -40 to 85 |
Price & Stock for PTN78060WAS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-20524-ND
|
DigiKey | DC DC CONVERTER 2.5-12.6V Min Qty: 1 Lead time: 18 Weeks Container: Tray |
130 In Stock |
|
$22.2163 / $25.3200 | Buy Now |
|
|
Quest Components | Manufacturer Supplied Status Information | 1 |
|
$27.9600 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 460 |
|
RFQ | |
|
|
Win Source Electronics | DC DC CONVERTER 2.5-12.6V / Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 3A 7V - 36V Input | 3358 |
|
Buy Now |
Part Details for PTN78060WAS
PTN78060WAS CAD Models
PTN78060WAS Part Data Attributes
|
|
PTN78060WAS
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PTN78060WAS
Texas Instruments
3-A, Wide-Input, Adjustable Switching Regulator Module 7-Surface Mount Module -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.40.95.80 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | REMOTE SHUTDOWN | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Efficiency (Main Output) | 86% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 7 V | |
| Input Voltage-Nom | 20 V | |
| JESD-30 Code | R-XDMA-X10 | |
| JESD-609 Code | e0 | |
| Length | 25.27 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 2.5 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 235 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 9 mm | |
| Surface Mount | NO | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 660 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | UNSPECIFIED | |
| Terminal Pitch | 3.175 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Total Power Output-Max | 45 W | |
| Width | 15.75 mm |
Alternate Parts for PTN78060WAS
This table gives cross-reference parts and alternative options found for PTN78060WAS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PTN78060WAS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PTN78060WAST | Texas Instruments | Check for Price | 3-A, Wide-Input, Adjustable Switching Regulator Module 7-Surface Mount Module -40 to 85 | PTN78060WAS vs PTN78060WAST |
PTN78060WAS Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure that the input voltage rises and falls monotonically, and that the enable pin is properly driven to prevent unwanted start-up or shutdown. A soft-start circuit can also be used to reduce inrush current.
-
The maximum output capacitance is limited by the device's stability and output impedance. A maximum of 10uF to 22uF ceramic or low-ESR electrolytic capacitors is recommended.
-
Use a TVS diode or a transient voltage suppressor in parallel with the input capacitor to clamp voltage transients. A fuse or a PTC thermistor can also be used to protect against overcurrent conditions.
-
A pi-filter or an LC filter with a series inductor and a shunt capacitor is recommended to reduce input ripple and noise. The filter components should be chosen to ensure a cutoff frequency below the device's switching frequency.
