PS5R-SD24 Information
PS5R-SD24 by IDEC Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PS5R-SD24
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Onlinecomponents.com | AC/DC Power Supply Single-OUT 24V 2.5A 60W RoHS: Compliant | Alternative Product Available |
|
$0 | Buy Now |
Part Details for PS5R-SD24

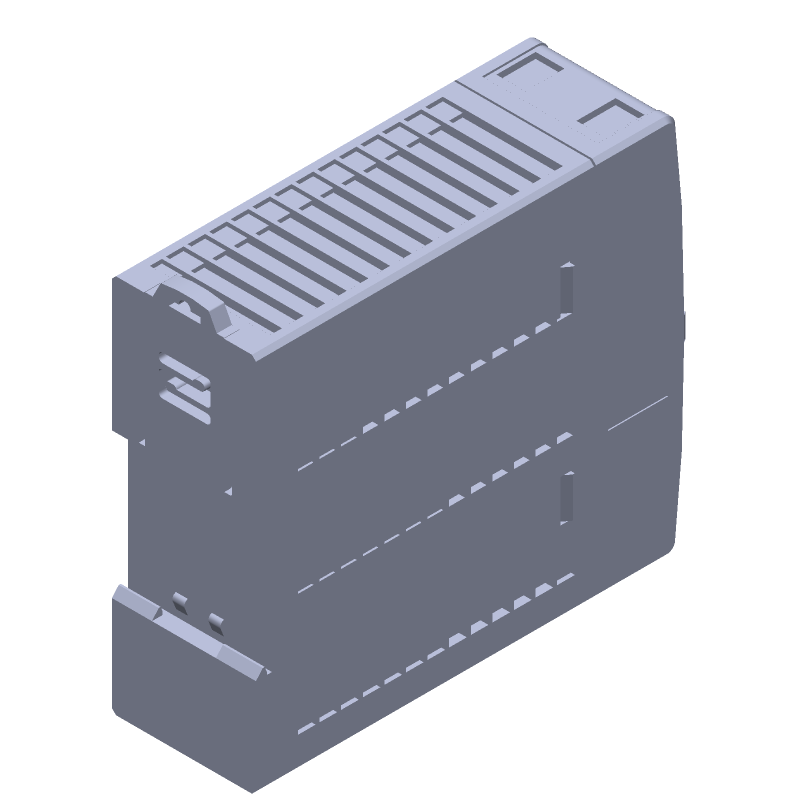

PS5R-SD24 CAD Models
PS5R-SD24 Part Data Attributes
|
|
PS5R-SD24
IDEC Corporation
Buy Now
Datasheet
|
Compare Parts:
PS5R-SD24
IDEC Corporation
Switch Mode Power Supply Din Rail Mount; Series:PS5R; Output Voltage:24VDC; Output Power Max:60W; Output Current:2.5A; Number of Outputs:1; External Depth:4.25"; External Height:3.74"; External Width:1.42"; Input Current:1.7A
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | IDEC CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Idec | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | UL, EN | |
| Efficiency (Main Output) | 83% | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 100 V | |
| JESD-30 Code | R-XXMA-X | |
| Length | 108 mm | |
| Line Regulation-Max | 0.4% | |
| Load Regulation-Max | 1.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Current-Max | 2.5 A | |
| Output Voltage-Max | 26.4 V | |
| Output Voltage-Min | 21.6 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER CURRENT, OVER VOLTAGE | |
| Seated Height-Max | 96 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Total Power Output-Max | 60 W | |
| Trim/Adjustable Output | YES | |
| Warm-up Time | 0.2 s | |
| Width | 36 mm |
