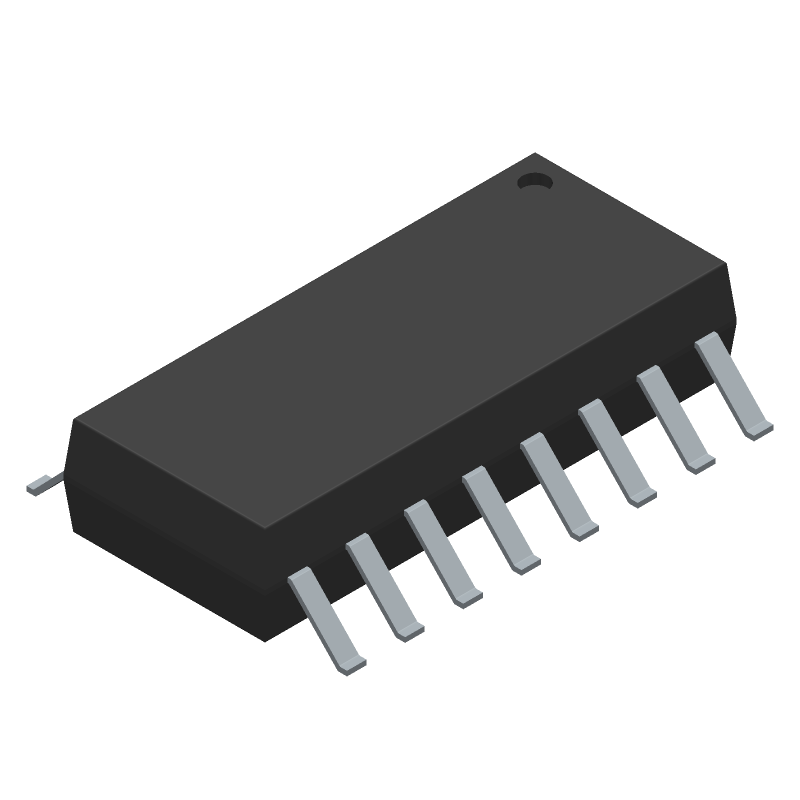

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PS2801-4 by NEC Electronics America Inc
Results Overview of PS2801-4 by NEC Electronics America Inc
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PS2801-4 Information
PS2801-4 by NEC Electronics America Inc is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Part Details for PS2801-4
PS2801-4 CAD Models
PS2801-4 Part Data Attributes
|
|
PS2801-4
NEC Electronics America Inc
Buy Now
Datasheet
|
Compare Parts:
PS2801-4
NEC Electronics America Inc
Transistor Output Optocoupler, 4-Element, 2500V Isolation, PLASTIC, SSOP-16
|
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEC ELECTRONICS AMERICA INC | |
| Package Description | PLASTIC, SSOP-16 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | NEC | |
| Additional Feature | UL RECOGNIZED | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | SEPARATE, 4 CHANNELS | |
| Current Transfer Ratio-Nom | 80% | |
| Dark Current-Max | 100 nA | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 2500 V | |
| Number of Elements | 4 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER |
