Optoelectronics / Optocoupler / PS2703-1-V-F3-K-A
Datasheets
PS2703-1-V-F3-K-A by: Renesas Electronics Corporation

NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,3.75KV ISOLATION,SO

Part Details for PS2703-1-V-F3-K-A by Renesas Electronics Corporation

Results Overview of PS2703-1-V-F3-K-A by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

PS2703-1-V-F3-K-A Information

PS2703-1-V-F3-K-A by Renesas Electronics Corporation is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.

Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.

Price & Stock for PS2703-1-V-F3-K-A

Part # Distributor Description Stock Price Buy
DISTI # 559-1451-2-ND
DigiKey OPTOISO 3.75KV 1CH TRANS 4-SOP Lead time: 30 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
Buy Now

Part Details for PS2703-1-V-F3-K-A

PS2703-1-V-F3-K-A CAD Models

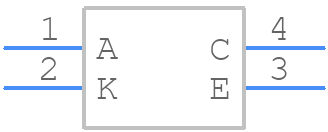

  • Part Symbol

    Part Symbol

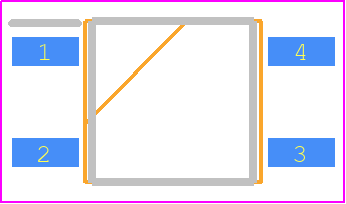

  • Footprint

    footprint

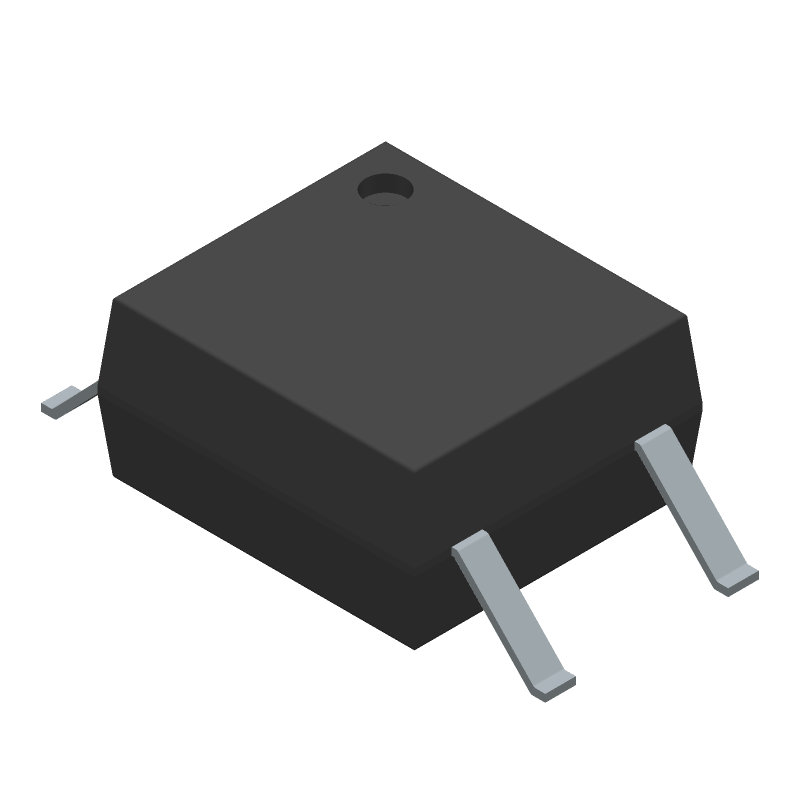

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PS2703-1-V-F3-K-A Part Data Attributes

Parametric Data
PS2703-1-V-F3-K-A Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
PS2703-1-V-F3-K-A Renesas Electronics Corporation NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,3.75KV ISOLATION,SO
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer RENESAS ELECTRONICS CORP
Reach Compliance Code compliant
HTS Code 8541.40.80.00
Samacsys Manufacturer Renesas Electronics
Current Transfer Ratio-Min 80%
Forward Current-Max 0.05 A
Forward Voltage-Max 1.4 V
Isolation Voltage-Max 3750 V
Mounting Feature SURFACE MOUNT
Number of Elements 1
On-State Current-Max 0.03 A
Operating Temperature-Max 100 °C
Operating Temperature-Min -55 °C
Power Dissipation-Max 0.15 W
Surface Mount YES

PS2703-1-V-F3-K-A Related Parts
