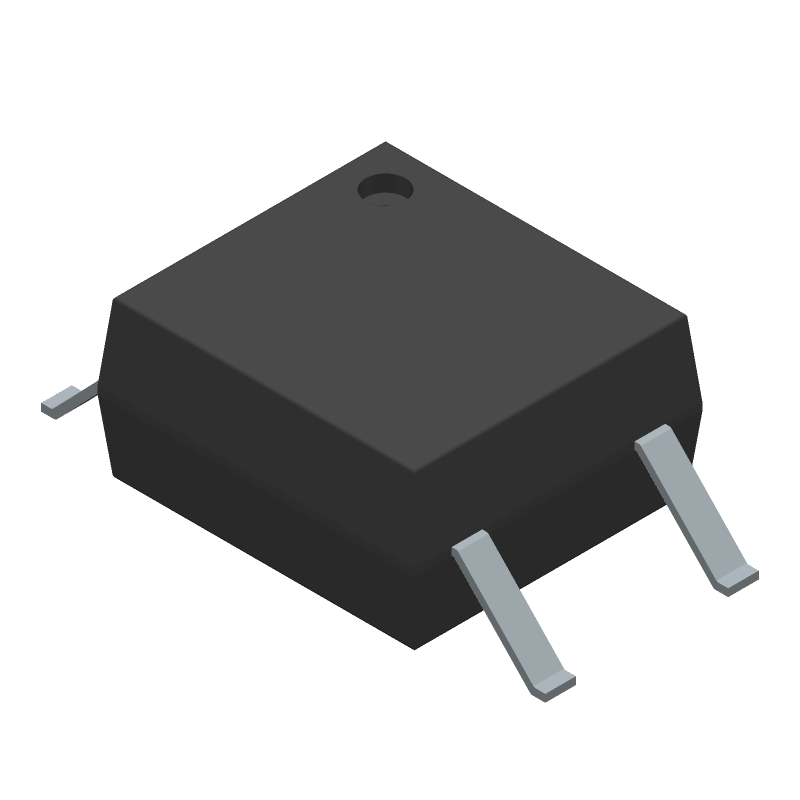

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PS2703-1-F3-A by Renesas Electronics Corporation
Results Overview of PS2703-1-F3-A by Renesas Electronics Corporation
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
PS2703-1-F3-A Information
PS2703-1-F3-A by Renesas Electronics Corporation is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for PS2703-1-F3-A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
66AH6781
|
Newark | Optocoupler, Transistor, 3.75Kv, Sop-4 Rohs Compliant: Yes |Renesas PS2703-1-F3-A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4200 |
|
$0.4050 / $0.9900 | Buy Now |
|
DISTI #
559-1155-1-ND
|
DigiKey | OPTOISO 3.75KV 1CH TRANS 4-SOP Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
19695 In Stock |
|
$0.3266 / $0.9900 | Buy Now |
|
DISTI #
PS2703-1-F3-A
|
Avnet Americas | Optocoupler, 1 Channel, SOP, 4 Pins, 50 mA, 3.75 kV, 50 % - Tape and Reel (Alt: PS2703-1-F3-A) RoHS: Compliant Min Qty: 7000 Package Multiple: 3500 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.4620 | Buy Now |
|
DISTI #
551-PS2703-1-F3-A
|
Mouser Electronics | Transistor Output Optocouplers Hi-Iso Photo 1-Ch RoHS: Compliant | 19183 |
|
$0.3260 / $0.9900 | Buy Now |
|
DISTI #
88151423
|
Verical | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 2314 | Americas - 1929 |
|
$0.4210 / $0.9500 | Buy Now |
|
|
Bristol Electronics | 4783 |
|
RFQ | ||
|
|
Quest Components | 1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER | 2567 |
|
$0.3742 / $1.0690 | Buy Now |
|
|
Rochester Electronics | PS2703 - High Isolation Voltage High Collector to Emitter Voltage Type SOP MULTI Photocoupler Series RoHS: Compliant Status: Active Min Qty: 1 | 355 |
|
$0.2415 / $0.3895 | Buy Now |
|
DISTI #
PS2703-1-F3-A
|
TME | Optocoupler, SMD, Ch: 1, OUT: transistor, Uinsul: 3.75kV, Uce: 120V Min Qty: 1 | 0 |
|
$0.3080 / $0.9230 | RFQ |
|
DISTI #
PS2703-1-F3-A
|
IBS Electronics | OPTOCOUPLER TRANSISTOR 3.75KV SOP-4 ROHS COMPLIANT: YES |RENESAS PS2703-1-F3-A Min Qty: 3500 Package Multiple: 1 | 0 |
|
$0.4485 / $0.4615 | Buy Now |
Part Details for PS2703-1-F3-A
PS2703-1-F3-A CAD Models
PS2703-1-F3-A Part Data Attributes
|
|
PS2703-1-F3-A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
PS2703-1-F3-A
Renesas Electronics Corporation
High Isolation Voltage High Collector to Emitter Voltage Type SOP MULTI Photocoupler Series, , /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Additional Feature | UL RECOGNIZED | |
| Coll-Emtr Bkdn Voltage-Min | 120 V | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Nom | 150% | |
| Dark Current-Max | 100 nA | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 3750 V | |
| JESD-609 Code | e6 | |
| Number of Elements | 1 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER | |
| Terminal Finish | TIN BISMUTH |
Alternate Parts for PS2703-1-F3-A
This table gives cross-reference parts and alternative options found for PS2703-1-F3-A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PS2703-1-F3-A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PS2703-1-F3 | California Eastern Laboratories (CEL) | Check for Price | PS2703-1-F3 | PS2703-1-F3-A vs PS2703-1-F3 |
