PS2562L2-1-A Information

PS2562L2-1-A by Renesas Electronics Corporation is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.

Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.

Price & Stock for PS2562L2-1-A

Part # Distributor Description Stock Price Buy
DISTI # 559-1389-ND
DigiKey OPTOISOLATOR 5KV 1CH DARL Min Qty: 1 Lead time: 18 Weeks Container: Tube 281
In Stock
  • 1 $1.2600
  • 10 $0.8860
  • 100 $0.6614
  • 500 $0.5616
  • 1,000 $0.5290
  • 2,000 $0.5013
  • 5,000 $0.4711
  • 10,000 $0.4523
$0.4523 / $1.2600 Buy Now
DISTI # PS2562L2-1-A
Avnet Americas Optocoupler DC-IN 1-CH Darlington DC-OUT 4-Pin PDIP SMD Magazine - Rail/Tube (Alt: PS2562L2-1-A) RoHS: Compliant Min Qty: 3300 Package Multiple: 100 Lead time: 18 Weeks, 0 Days Container: Tube 0
  • 1 $0.6160
$0.6160 Buy Now
DISTI # 551-PS2562L2-1-A
Mouser Electronics Transistor Output Optocouplers Darlington Tr DC BSI Couplr RoHS: Compliant 3270
  • 1 $1.2600
  • 10 $0.8860
  • 100 $0.6610
  • 500 $0.5730
  • 1,000 $0.5300
  • 2,500 $0.5120
  • 5,000 $0.4710
  • 10,000 $0.4480
$0.4480 / $1.2600 Buy Now

Part Details for PS2562L2-1-A

PS2562L2-1-A CAD Models

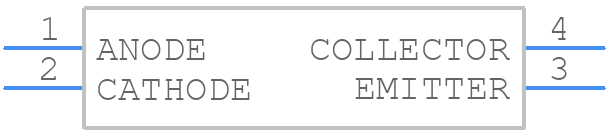

  • Part Symbol

    Part Symbol

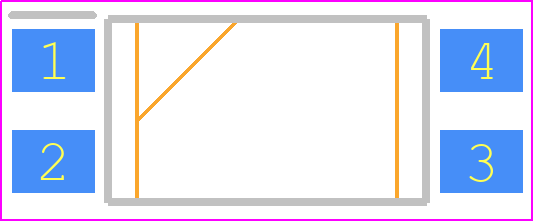

  • Footprint

    footprint

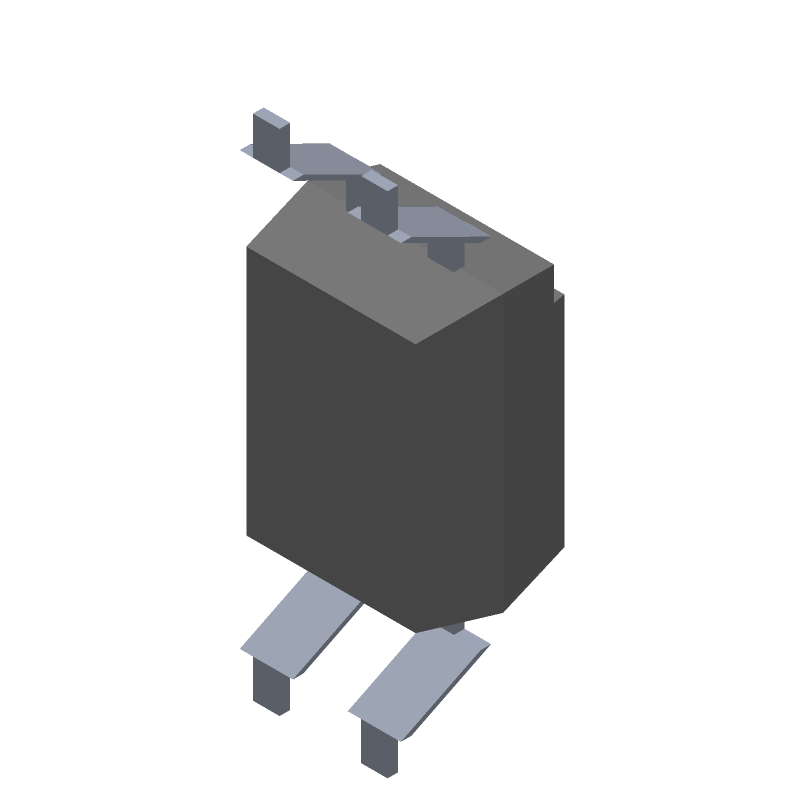

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PS2562L2-1-A Part Data Attributes

Parametric Data
PS2562L2-1-A Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
PS2562L2-1-A Renesas Electronics Corporation High Isolation Voltage Darlington Transistor Type MULTI Photocoupler Series, , /
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RENESAS ELECTRONICS CORP
Reach Compliance Code compliant
HTS Code 8541.40.80.00
Factory Lead Time 18 Weeks
Samacsys Manufacturer Renesas Electronics
Additional Feature UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min 40 V
Configuration SINGLE
Current Transfer Ratio-Nom 2000%
Dark Current-Max 400 nA
Forward Current-Max 0.08 A
Isolation Voltage-Max 5000 V
JESD-609 Code e1
Number of Elements 1
Operating Temperature-Max 100 °C
Operating Temperature-Min -55 °C
Optoelectronic Device Type DARLINGTON OUTPUT OPTOCOUPLER
Terminal Finish TIN SILVER COPPER
