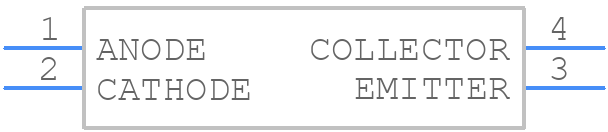

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PS2561L2-1-V-F3-A by Renesas Electronics Corporation
Results Overview of PS2561L2-1-V-F3-A by Renesas Electronics Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
PS2561L2-1-V-F3-A Information
PS2561L2-1-V-F3-A by Renesas Electronics Corporation is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for PS2561L2-1-V-F3-A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
559-1381-2-ND
|
DigiKey | OPTOISOLATOR 5KV 1CH TRANS 4-SMD Min Qty: 6000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$0.2475 / $0.2663 | Buy Now |
|
DISTI #
PS2561L2-1-V-F3-A
|
Avnet Americas | Optocoupler 1-Channel Open Collector-OUT 5000Vrms 4-Pin SDIP SMD Embossed T/R - Tape and Reel (Alt: PS2561L2-1-V-F3-A) RoHS: Compliant Min Qty: 6000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.3740 | Buy Now |
|
DISTI #
551-PS2561L2-1VF3A
|
Mouser Electronics | Transistor Output Optocouplers Hi-Iso Photo 1-Ch RoHS: Compliant | 0 |
|
Order Now |
Part Details for PS2561L2-1-V-F3-A
PS2561L2-1-V-F3-A CAD Models
PS2561L2-1-V-F3-A Part Data Attributes
|
|
PS2561L2-1-V-F3-A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
PS2561L2-1-V-F3-A
Renesas Electronics Corporation
Photocouplers / Optocouplers, , /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Additional Feature | UL APPROVED, VDE APPROVED | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Min | 80% | |
| Current Transfer Ratio-Nom | 200% | |
| Dark Current-Max | 100 nA | |
| Forward Current-Max | 0.08 A | |
| Forward Voltage-Max | 1.4 V | |
| Isolation Voltage-Max | 5000 V | |
| JESD-609 Code | e6 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.05 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Power Dissipation-Max | 0.15 W | |
| Surface Mount | YES | |
| Terminal Finish | TIN BISMUTH |
