Optoelectronics / Optocoupler / PS2532L-1-V-A
Datasheets
PS2532L-1-V-A by:

1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, ROHS COMPLIANT, SURFACE MOUNT, PLASTIC PACKAGE-4

Part Details for PS2532L-1-V-A by Renesas Electronics Corporation

Results Overview of PS2532L-1-V-A by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PS2532L-1-V-A Information

PS2532L-1-V-A by Renesas Electronics Corporation is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.

Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.

Part Details for PS2532L-1-V-A

PS2532L-1-V-A CAD Models

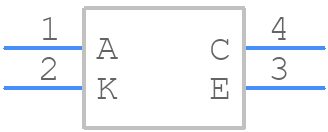

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PS2532L-1-V-A Part Data Attributes

Parametric Data
PS2532L-1-V-A Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
PS2532L-1-V-A Renesas Electronics Corporation 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, ROHS COMPLIANT, SURFACE MOUNT, PLASTIC PACKAGE-4
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer RENESAS ELECTRONICS CORP
Package Description LEAD FREE, SURFACE MOUNT, PLASTIC, DIP-4
Reach Compliance Code compliant
HTS Code 8541.40.80.00
Samacsys Manufacturer Renesas Electronics
Additional Feature VDE APPROVED
Coll-Emtr Bkdn Voltage-Min 300 V
Configuration SINGLE WITH BUILT-IN DIODE AND RESISTOR
Current Transfer Ratio-Min 1500%
Current Transfer Ratio-Nom 4000%
Dark Current-Max 400 nA
Forward Current-Max 0.08 A
Forward Voltage-Max 1.4 V
Isolation Voltage-Max 5000 V
JESD-609 Code e1
Mounting Feature SURFACE MOUNT
Number of Elements 1
On-State Current-Max 0.15 A
Operating Temperature-Max 100 °C
Operating Temperature-Min -55 °C
Optoelectronic Device Type DARLINGTON OUTPUT OPTOCOUPLER
Power Dissipation-Max 0.3 W
Surface Mount YES
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
