Part Details for PQME1-S5-S5-M-TR by CUI Inc
Results Overview of PQME1-S5-S5-M-TR by CUI Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PQME1-S5-S5-M-TR Information
PQME1-S5-S5-M-TR by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PQME1-S5-S5-M-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AJ0814
|
Newark | Dc-Dc Converter, 5V, 0.15A Rohs Compliant: Yes |Cui PQME1-S5-S5-M-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
102-6280-1-ND
|
DigiKey | DC DC CONVERTER 5V 750MW Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Limited Supply - Call |
|
$3.4936 / $4.3900 | Buy Now |
|
|
Neutron USA | Isolated DC/DC Converters dc-dc isolated, 0.75 W, 4.75~5.25 Vdc input, 5 Vdc, 0.15 A, single regulated output, SMT, T&, R | 0 |
|
$28.2900 | Buy Now |
Part Details for PQME1-S5-S5-M-TR

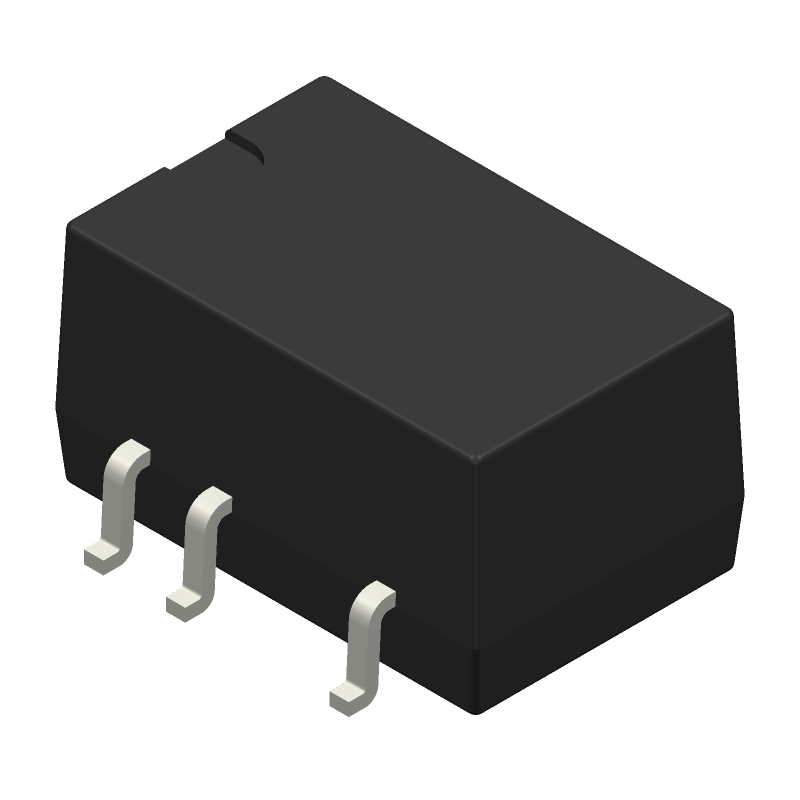

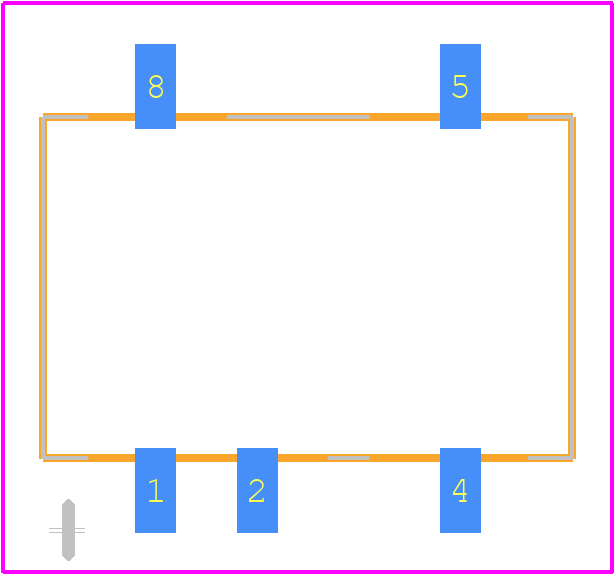

PQME1-S5-S5-M-TR CAD Models
PQME1-S5-S5-M-TR Part Data Attributes
|
|
PQME1-S5-S5-M-TR
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PQME1-S5-S5-M-TR
CUI Inc
DC-DC Regulated Power Supply Module
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | CUI INC | |
| Package Description | SMT-8/5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2019-07-02 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | EN, IEC, UL | |
| Efficiency (Main Output) | 72% | |
| Input Voltage-Max | 5.25 V | |
| Input Voltage-Min | 4.75 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDMA-G8 | |
| Length | 13.2 mm | |
| Line Regulation-Max | 0.25% | |
| Load Regulation-Max | 2% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.15 A | |
| Output Voltage-Max | 5.15 V | |
| Output Voltage-Min | 4.85 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.0265125 Vrms | |
| Seated Height-Max | 7.5 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 0.75 W | |
| Trim/Adjustable Output | NO | |
| Width | 8.5 mm |
