Power Circuits / Power Supply Modules / PQMC3-D24-S5-S
Datasheets

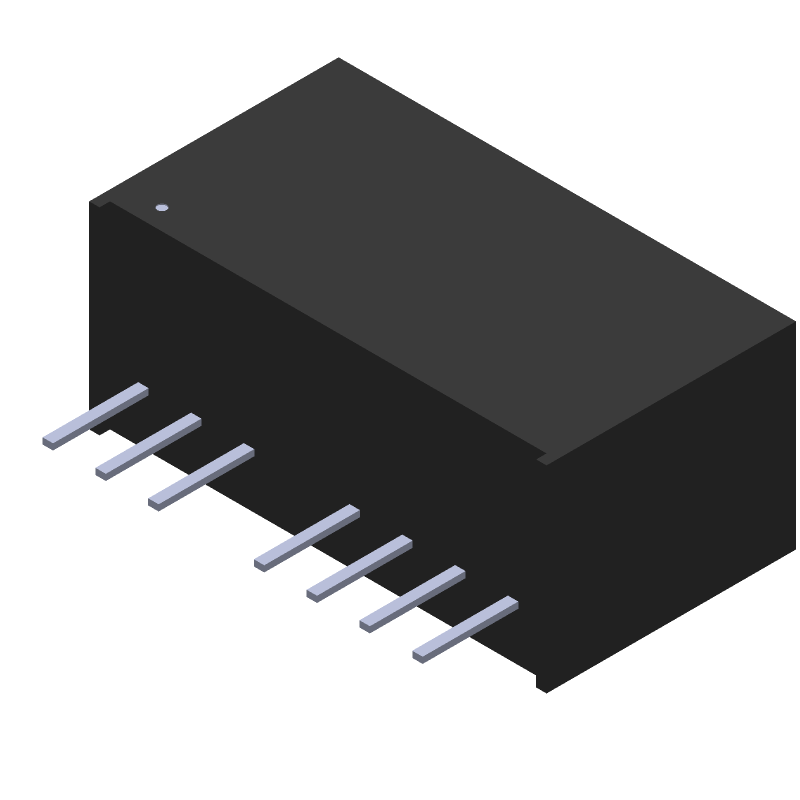

PQMC3-D24-S5-S by:

5 Vdc, 0.6 A, 3 W, 18~36 Vdc Input Range

Part Details for PQMC3-D24-S5-S by CUI Inc

Results Overview of PQMC3-D24-S5-S by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PQMC3-D24-S5-S Information

PQMC3-D24-S5-S by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74AC11000DR Texas Instruments Quadruple 2-Input Positive-NAND Gates 16-SOIC -40 to 85
74AC11008PWR Texas Instruments Quadruple 2-Input Positive-AND Gates 16-TSSOP -40 to 85
74AC11138N Texas Instruments 3-Line to 8-Line Decoders/Demultiplexers 16-PDIP -40 to 85

Price & Stock for PQMC3-D24-S5-S

Part # Distributor Description Stock Price Buy
DISTI # 102-2835-ND
DigiKey DC DC CONVERTER 5V 3W Min Qty: 22 Lead time: 18 Weeks Container: Tube Limited Supply - Call
  • 22 $12.7714
$12.7714 Buy Now
Onlinecomponents.com 3 W, 2:1 Input Range, Single/Dual Regulated Output, 8 Pin SIP, 1500 Vdc Isolation Dc-Dc Converter - 5 Vdc, 0.6 A, 3 W, 18~36 Vdc Input Range RoHS: Compliant Alternative Product Available
  • 0 $0
$0 Buy Now

Part Details for PQMC3-D24-S5-S

PQMC3-D24-S5-S Part Data Attributes

Parametric Data
PQMC3-D24-S5-S CUI Inc
Buy Now Datasheet
Compare Parts:
PQMC3-D24-S5-S CUI Inc 5 Vdc, 0.6 A, 3 W, 18~36 Vdc Input Range
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer CUI INC
Part Package Code MODULE
Package Description SIP-8/7
Pin Count 8/7
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer CUI Inc.
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max 36 V
Input Voltage-Min 18 V
Input Voltage-Nom 24 V
JESD-30 Code R-PSMA-P7
Length 22 mm
Load Regulation-Max 1%
Number of Functions 1
Number of Outputs 1
Number of Terminals 7
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Voltage-Max 5.15 V
Output Voltage-Min 4.85 V
Output Voltage-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Seated Height-Max 12.25 mm
Surface Mount NO
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 3 W
Trim/Adjustable Output NO
Width 9.5 mm

Alternate Parts for PQMC3-D24-S5-S

This table gives cross-reference parts and alternative options found for PQMC3-D24-S5-S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PQMC3-D24-S5-S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PYBJ3-D24-S5-M CUI Inc Check for Price Power Supply Module PQMC3-D24-S5-S vs PYBJ3-D24-S5-M
PQM3-D24-S5-M CUI Inc Check for Price 5 Vdc, 0.6 A, 3 W, 18~36 Vdc Input Range PQMC3-D24-S5-S vs PQM3-D24-S5-M
SUS32405C Cosel USA Inc Check for Price DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, DIP-6 PQMC3-D24-S5-S vs SUS32405C
SUS32405C-G Cosel USA Inc Check for Price DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, DIP-6 PQMC3-D24-S5-S vs SUS32405C-G
PQME3-D24-S5-M CUI Inc Check for Price 5 V, 0.6 A, 3 W, 9~36 Vdc Input Range PQMC3-D24-S5-S vs PQME3-D24-S5-M
PUZ3-D24-S5-D1 CUI Inc Check for Price DC-DC Regulated Power Supply Module PQMC3-D24-S5-S vs PUZ3-D24-S5-D1
FKC03-24S05-SMD P-DUKE Check for Price DC-DC Regulated Power Supply Module, 1 Output, 3W, PQMC3-D24-S5-S vs FKC03-24S05-SMD
PQP3-D24-S5-M CUI Inc Check for Price Power Supply Module PQMC3-D24-S5-S vs PQP3-D24-S5-M
PQM3-D24-S5-M-TR CUI Inc Check for Price DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid PQMC3-D24-S5-S vs PQM3-D24-S5-M-TR
PYBJ3-D24-S5-OM CUI Inc Check for Price Power Supply Module PQMC3-D24-S5-S vs PYBJ3-D24-S5-OM

PQMC3-D24-S5-S Related Parts

PQMC3-D24-S5-S Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the PQMC3-D24-S5-S is -40°C to +85°C.

  • Yes, the PQMC3-D24-S5-S is designed to operate in humid environments, with a relative humidity of up to 95% non-condensing.

  • The recommended input voltage range for the PQMC3-D24-S5-S is 18-36VDC.

  • Yes, the PQMC3-D24-S5-S is designed to meet the requirements for use in Class I, Division 2 hazardous locations.

  • The maximum output current for the PQMC3-D24-S5-S is 5A.
