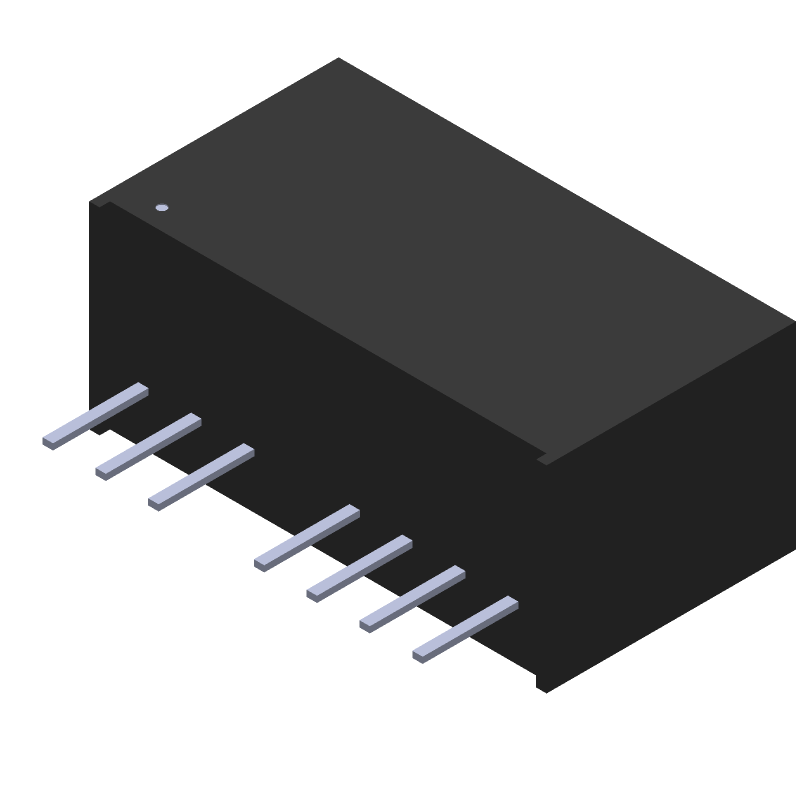

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PQMC1-D12-D12-S by CUI Inc
Results Overview of PQMC1-D12-D12-S by CUI Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PQMC1-D12-D12-S Information
PQMC1-D12-D12-S by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PQMC1-D12-D12-S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2266-PQMC1-D12-D12-S-ND
|
DigiKey | DC DC CONVERTER +/-12V 1W Min Qty: 4 Lead time: 18 Weeks Container: Tube MARKETPLACE PRODUCT |
110 In Stock |
|
$18.8500 / $20.3500 | Buy Now |
|
DISTI #
102-2805-ND
|
DigiKey | DC DC CONVERTER +/-12V 1W Min Qty: 4 Lead time: 18 Weeks Container: Tube | Limited Supply - Call |
|
$10.8246 | Buy Now |
Part Details for PQMC1-D12-D12-S
PQMC1-D12-D12-S CAD Models
PQMC1-D12-D12-S Part Data Attributes
|
|
PQMC1-D12-D12-S
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PQMC1-D12-D12-S
CUI Inc
12/-12 Vdc, 0.042/-0.042 A, 1 W, 9~18 Vdc Input Range
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | CUI INC | |
| Package Description | SIP-8/7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | CUI Inc. | |
| Additional Feature | IT ALSO HAS -12V OUTPUT | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | EN | |
| Efficiency (Main Output) | 81% | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PSMA-T7 | |
| Length | 22 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.75% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.042 A | |
| Output Voltage-Max | 12.36 V | |
| Output Voltage-Min | 11.64 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.0265125 Vrms | |
| Seated Height-Max | 12.25 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.5 mm |
PQMC1-D12-D12-S Frequently Asked Questions (FAQ)
-
CUI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces separate to minimize noise and EMI. Additionally, it's recommended to use a common mode choke and a decoupling capacitor at the input.
-
CUI recommends derating the output power by 2.5% per degree Celsius above 40°C to ensure reliable operation. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material if necessary.
-
CUI recommends using a maximum of 10uF of input capacitance to avoid affecting the module's stability and performance. Excessive input capacitance can cause oscillations or instability.
-
Yes, the PQMC1-D12-D12-S can be used in redundant or parallel configurations, but it's essential to ensure that the modules are synchronized and that the output voltages are matched to avoid any potential issues.
-
The typical efficiency of the PQMC1-D12-D12-S is around 85-90% at full load, depending on the input voltage and operating conditions.
