PQB3-D24-D12-D by:

12/-12 Vdc, 0.125 A, 3 W, 18~36 Vdc Input Range

Part Details for PQB3-D24-D12-D by CUI Inc

Results Overview of PQB3-D24-D12-D by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

PQB3-D24-D12-D Information

PQB3-D24-D12-D by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
LD09P24A4GV00LF Amphenol Communications Solutions D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
DB5W5P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets.
DCV8W8P543M30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets.

Price & Stock for PQB3-D24-D12-D

Part # Distributor Description Stock Price Buy
DISTI # 102-2793-ND
DigiKey DC DC CONVERTER +/-12V 3W Min Qty: 15 Lead time: 18 Weeks Container: Tube Limited Supply - Call
  • 15 $13.9780
$13.9780 Buy Now
Onlinecomponents.com 3 W, 2:1 Input Range, Single/Dual Regulated Output, 24 Pin DIP, 1500 Vdc Isolation Dc-Dc Converter - 12/-12 Vdc, 0.125 A, 3 W, 18~36 Vdc Input Range RoHS: Compliant 15 Partner Stock
  • 0 $0
$0 Buy Now
Vyrian Other Function Semiconductors 5
RFQ

Part Details for PQB3-D24-D12-D

PQB3-D24-D12-D Part Data Attributes

Parametric Data
PQB3-D24-D12-D CUI Inc
Buy Now Datasheet
Compare Parts:

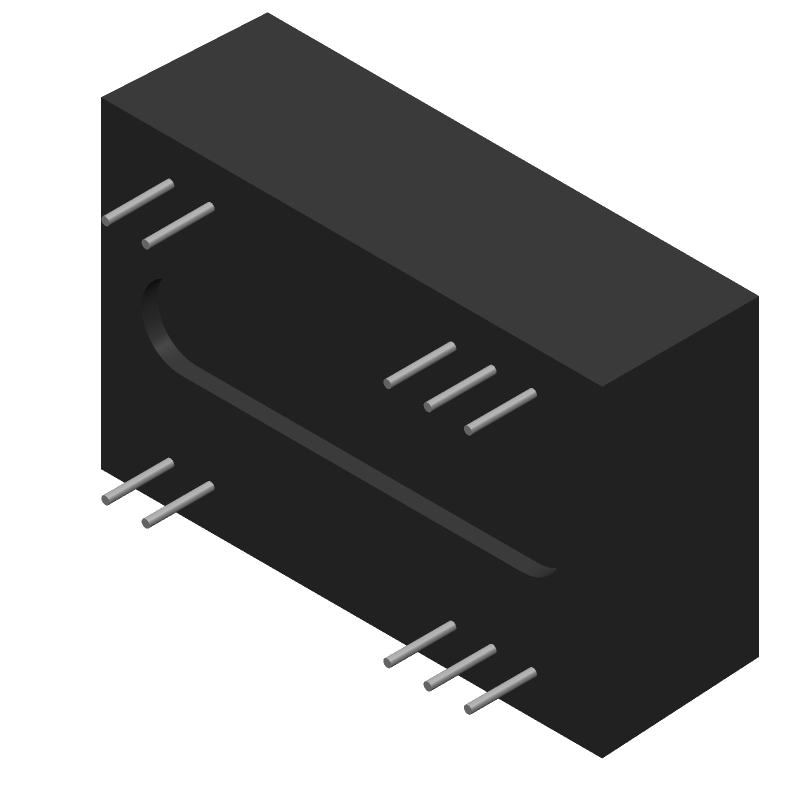

PQB3-D24-D12-D CUI Inc 12/-12 Vdc, 0.125 A, 3 W, 18~36 Vdc Input Range
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer CUI INC
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer CUI Inc.
Additional Feature IT ALSO HAS -12V OUTPUT
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Approvals CE, EN
Efficiency (Main Output) 84%
Input Voltage-Max 36 V
Input Voltage-Min 18 V
Input Voltage-Nom 24 V
JESD-30 Code R-PDMA-P10
Length 31.6 mm
Line Regulation-Max 0.5%
Load Regulation-Max 0.5%
Number of Functions 1
Number of Outputs 2
Number of Terminals 10
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.125 A
Output Voltage-Max 12.36 V
Output Voltage-Min 11.64 V
Output Voltage-Nom 12 V
Package Body Material PLASTIC/EPOXY
Package Code DMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Protections SHORT CIRCUIT
Ripple Voltage (Main Out) 0.02828 Vrms
Seated Height-Max 10.7 mm
Surface Mount NO
Switching Frequency-Max 200 kHz
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 3 W
Trim/Adjustable Output NO
Width 20.3 mm
