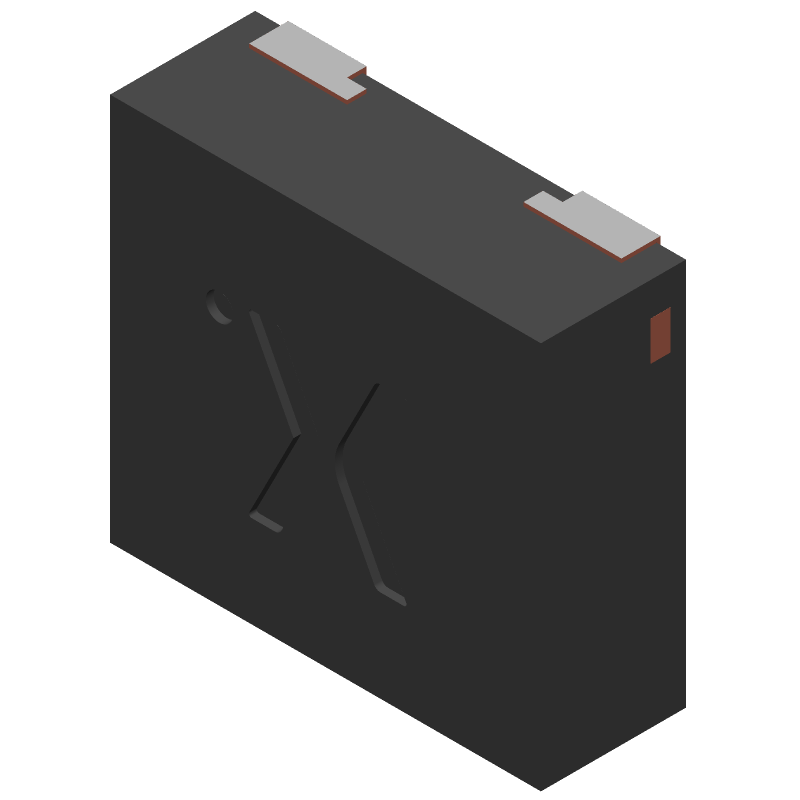

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PMXB75UPEZ by Nexperia
Results Overview of PMXB75UPEZ by Nexperia
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PMXB75UPEZ Information
PMXB75UPEZ by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PMXB75UPEZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-2314-1-ND
|
DigiKey | MOSFET P-CH 20V 2.9A DFN1010D-3 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
11768 In Stock |
|
$0.0610 / $0.4000 | Buy Now |
|
DISTI #
PMXB75UPEZ
|
Avnet Americas | Trans MOSFET P-CH 20V 2.9A 3-Pin DFN T/R - Tape and Reel (Alt: PMXB75UPEZ) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0529 / $0.0583 | Buy Now |
|
DISTI #
771-PMXB75UPEZ
|
Mouser Electronics | MOSFETs N-channel TrenchMOS standard level FET RoHS: Compliant | 28365 |
|
$0.0600 / $0.3800 | Buy Now |
|
DISTI #
86006437
|
Verical | Trans MOSFET P-CH 20V 2.9A 3-Pin DFN-D EP T/R RoHS: Compliant Min Qty: 4033 Package Multiple: 1 Date Code: 2201 | Americas - 138879 |
|
$0.0930 | Buy Now |
|
DISTI #
86032347
|
Verical | Trans MOSFET P-CH 20V 2.9A 3-Pin DFN-D EP T/R RoHS: Compliant Min Qty: 4033 Package Multiple: 1 Date Code: 2101 | Americas - 10000 |
|
$0.0930 | Buy Now |
|
|
Rochester Electronics | PMXB75UPE - Small Signal Field-Effect Transistor, 2.9A, 20V, P-Channel, MOSFET, DFN1010D-3 RoHS: Compliant Status: Active Min Qty: 1 | 148879 |
|
$0.0461 / $0.0744 | Buy Now |
|
DISTI #
PMXB75UPEZ
|
TTI | MOSFETs N-channel TrenchMOS standard level FET RoHS: Compliant pbFree: Pb-Free Min Qty: 15000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.0570 / $0.0620 | Buy Now |
|
DISTI #
PMXB75UPEZ
|
Avnet Asia | Trans MOSFET P-CH 20V 2.9A 3-Pin DFN T/R (Alt: PMXB75UPEZ) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days | 0 |
|
$0.0548 / $0.0613 | Buy Now |
|
DISTI #
PMXB75UPEZ
|
Avnet Silica | Trans MOSFET PCH 20V 29A 3Pin DFN TR (Alt: PMXB75UPEZ) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
PMXB75UPEZ
|
EBV Elektronik | Trans MOSFET PCH 20V 29A 3Pin DFN TR (Alt: PMXB75UPEZ) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for PMXB75UPEZ
PMXB75UPEZ CAD Models
PMXB75UPEZ Part Data Attributes
|
|
PMXB75UPEZ
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PMXB75UPEZ
Nexperia
PMXB75UPE - 20 V, P-channel Trench MOSFET@en-us DFN 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFN | |
| Package Description | DFN1010D-3, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT1215 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 2.9 A | |
| Drain-source On Resistance-Max | 0.085 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-N3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
PMXB75UPEZ Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the PMXB75UPEZ near a thermal pad or a heat sink, using a large copper area for heat dissipation, and minimizing thermal resistance by using thermal vias.
-
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, use a suitable heat sink, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
-
The recommended soldering conditions for the PMXB75UPEZ include a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that follows the IPC J-STD-020 standard.
-
To protect the PMXB75UPEZ from electrostatic discharge (ESD), it's essential to follow proper ESD handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits in the design.
-
The PMXB75UPEZ's power MOSFET structure requires careful consideration of gate-source voltage, gate-drain capacitance, and drain-source resistance when designing the circuit to ensure optimal performance and minimize losses.
