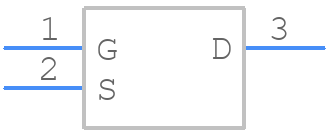

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PMV30XPEAR by Nexperia
Results Overview of PMV30XPEAR by Nexperia
- Distributor Offerings: (25 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
PMV30XPEAR Information
PMV30XPEAR by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PMV30XPEAR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
99Y2086
|
Newark | Mosfet, P- Ch, -20V, -4.5A, To-236Ab, Transistor Polarity:P Channel, Continuous Drain Current Id:-4.5A, Drain Source Voltage Vds:-20V, On Resistance Rds(On):0.028Ohm, Rds(On) Test Voltage Vgs:-4.5V, Threshold Voltage Vgs:-1V, Power Rohs Compliant: Yes |Nexperia PMV30XPEAR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1432 |
|
$0.2150 / $0.2510 | Buy Now |
|
DISTI #
86AK5977
|
Newark | Mosfet, P-Ch, 20V, 4.5A, To-236Ab Rohs Compliant: Yes |Nexperia PMV30XPEAR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1450 / $0.1560 | Buy Now |
|
DISTI #
1727-2531-1-ND
|
DigiKey | MOSFET P-CH 20V 4.5A TO236AB Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10772 In Stock |
|
$0.0949 / $0.2000 | Buy Now |
|
DISTI #
PMV30XPEAR
|
Avnet Americas | Trans MOSFET P-CH 20V 5.3A 3-Pin TO-236AB T/R - Tape and Reel (Alt: PMV30XPEAR) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0854 / $0.0906 | Buy Now |
|
DISTI #
771-PMV30XPEAR
|
Mouser Electronics | MOSFETs 20 V, 4 A P-channel Trench MOSFET RoHS: Compliant | 186527 |
|
$0.0940 / $0.1700 | Buy Now |
|
DISTI #
A03:0893_06870719
|
Arrow Electronics | Trans MOSFET P-CH 20V 4.5A 3-Pin SOT-23 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2345 | Asia - 33000 |
|
$0.0890 | Buy Now |
|
DISTI #
E02:0323_09316545
|
Arrow Electronics | Trans MOSFET P-CH 20V 4.5A 3-Pin SOT-23 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2511 | Europe - 12000 |
|
$0.0956 / $0.1001 | Buy Now |
|
DISTI #
V36:1790_13800193
|
Arrow Electronics | Trans MOSFET P-CH 20V 4.5A 3-Pin SOT-23 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2434 | Americas - 6000 |
|
$0.0867 / $0.0990 | Buy Now |
|
DISTI #
V72:2272_13800193
|
Arrow Electronics | Trans MOSFET P-CH 20V 4.5A 3-Pin SOT-23 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2303 Container: Cut Strips | Americas - 7 |
|
$0.1000 | Buy Now |
|
DISTI #
77251977
|
Verical | Trans MOSFET P-CH 20V 4.5A 3-Pin SOT-23 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 33000 |
|
$0.0890 | Buy Now |
Part Details for PMV30XPEAR
PMV30XPEAR CAD Models
PMV30XPEAR Part Data Attributes
|
|
PMV30XPEAR
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PMV30XPEAR
Nexperia
PMV30XPEA - 20 V, P-channel Trench MOSFET@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 4.5 A | |
| Drain-source On Resistance-Max | 0.057 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
PMV30XPEAR Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component away from heat sources and ensure good airflow.
-
Use a heat sink, ensure good airflow, and consider derating the device's power handling at high temperatures. Also, follow Nexperia's thermal design guidelines.
-
The maximum allowed voltage on the input pins is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation.
-
Yes, but ensure the device is properly bypassed and decoupled. Follow Nexperia's application notes for switching regulator designs.
-
Use ESD protection devices, such as TVS diodes, and follow Nexperia's ESD protection guidelines. Ensure proper PCB layout and handling practices.
