Part Details for PMLL4148L,135 by Nexperia
Results Overview of PMLL4148L,135 by Nexperia
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
PMLL4148L,135 Information
PMLL4148L,135 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PMLL4148L,135
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC3061
|
Newark | Pmll4148L/Sod80/Llds Rohs Compliant: Yes |Nexperia PMLL4148L,135 RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 300000 |
|
$0.0090 | Buy Now |
|
DISTI #
1727-6289-1-ND
|
DigiKey | DIODE STANDARD 75V 200MA LLDS Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
72805 In Stock |
|
$0.0142 / $0.1000 | Buy Now |
|
DISTI #
PMLL4148L,135
|
Avnet Americas | Diode Switching 100V 0.2A 2-Pin Mini-MELF T/R - Tape and Reel (Alt: PMLL4148L,135) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 300000 |
|
$0.0076 / $0.0083 | Buy Now |
|
DISTI #
771-PMLL4148L135
|
Mouser Electronics | Small Signal Switching Diodes High-speed diode RoHS: Compliant | 97443 |
|
$0.0120 / $0.1000 | Buy Now |
|
DISTI #
E02:0323_00162666
|
Arrow Electronics | Diode Switching 100V 0.2A 2-Pin Mini-MELF T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Date Code: 2322 | Europe - 130000 |
|
$0.0117 / $0.0123 | Buy Now |
|
DISTI #
V72:2272_06540409
|
Arrow Electronics | Diode Switching 100V 0.2A 2-Pin Mini-MELF T/R RoHS: Compliant Min Qty: 6579 Package Multiple: 1 Lead time: 8 Weeks Date Code: 1731 Container: Cut Strips | Americas - 78157 |
|
$0.0151 / $0.0152 | Buy Now |
|
DISTI #
V36:1790_06540409
|
Arrow Electronics | Diode Switching 100V 0.2A 2-Pin Mini-MELF T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Date Code: 2442 | Americas - 30000 |
|
$0.0079 / $0.0121 | Buy Now |
|
DISTI #
E21:3489_00162666
|
Arrow Electronics | Diode Switching 100V 0.2A 2-Pin Mini-MELF T/R RoHS: Compliant Min Qty: 1917 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2240 | Europe - 1917 |
|
$0.0113 | Buy Now |
|
|
Future Electronics | PMLL4148L Series 100 V 200 mA Surface Mount Switching Diode - SOD-80C RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Container: Reel | 40000Reel |
|
$0.0075 / $0.0081 | Buy Now |
|
|
Future Electronics | PMLL4148L Series 100 V 200 mA Surface Mount Switching Diode - SOD-80C RoHS: Compliant pbFree: Yes Min Qty: 80000 Package Multiple: 10000 Lead time: 8 Weeks Container: Reel | 0Reel |
|
$0.0075 / $0.0081 | Buy Now |
Part Details for PMLL4148L,135
PMLL4148L,135 CAD Models
PMLL4148L,135 Part Data Attributes
|
|
PMLL4148L,135
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PMLL4148L,135
Nexperia

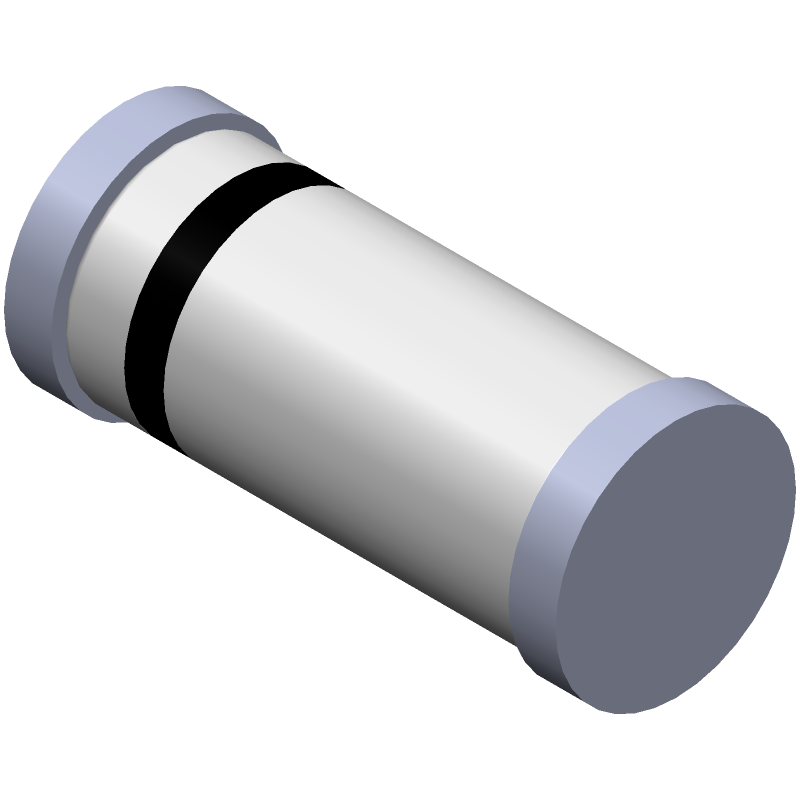

PMLL4148L; PMLL4448 - High-speed switching diodes@en-us MELF 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | MELF | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD80C | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | O-LELF-R2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.5 W | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | WRAP AROUND | |
| Terminal Position | END | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for PMLL4148L,135
