PMEG045T150EPD - 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier@en-us DFP 3-Pin

Part Details for PMEG045T150EPDAZ by Nexperia

Results Overview of PMEG045T150EPDAZ by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

PMEG045T150EPDAZ Information

PMEG045T150EPDAZ by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for PMEG045T150EPDAZ

Part # Distributor Description Stock Price Buy
DISTI # 1727-PMEG045T150EPDAZCT-ND
DigiKey DIODE SCHOTTKY 45V 15A CFP15 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2894
In Stock
  • 1 $1.5400
  • 10 $0.9720
  • 100 $0.6472
  • 500 $0.5080
  • 1,000 $0.4632
  • 2,000 $0.4465
  • 5,000 $0.3848
  • 10,000 $0.3648
$0.3648 / $1.5400 Buy Now
DISTI # PMEG045T150EPDAZ
Avnet Americas Diode Schottky 45V 15A 3-Pin CFP15 Plastic T/R - Tape and Reel (Alt: PMEG045T150EPDAZ) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.3433
  • 10,000 $0.3404
  • 20,000 $0.3375
  • 30,000 $0.3345
  • 40,000 $0.3316
$0.3316 / $0.3433 Buy Now
DISTI # 771-PMEG045T150EPDAZ
Mouser Electronics Schottky Diodes & Rectifiers 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier RoHS: Compliant 0
  • 5,000 $0.3840
  • 10,000 $0.3640
$0.3640 / $0.3840 Order Now
DISTI # V72:2272_13800191
Arrow Electronics Diode Schottky 21A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 1809 Container: Cut Strips Americas - 5
  • 0 $0.3754
  • 1 $0.1941
$0.1941 / $0.3754 Buy Now
DISTI # 86022036
Verical Diode Schottky 21A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 750 Package Multiple: 1 Date Code: 1801 Americas - 16270
  • 750 $0.5003
  • 1,000 $0.4614
  • 10,000 $0.4114
  • 100,000 $0.3446
$0.3446 / $0.5003 Buy Now
DISTI # 86010451
Verical Diode Schottky 21A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 750 Package Multiple: 1 Date Code: 2001 Americas - 9300
  • 750 $0.5003
  • 1,000 $0.4614
  • 10,000 $0.4114
  • 100,000 $0.3446
$0.3446 / $0.5003 Buy Now
DISTI # 87073765
Verical Diode Schottky 21A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 750 Package Multiple: 1 Date Code: 2201 Americas - 4900
  • 750 $0.5003
  • 1,000 $0.4614
  • 10,000 $0.4114
  • 100,000 $0.3446
$0.3446 / $0.5003 Buy Now
DISTI # 87173080
Verical Diode Schottky 21A 3-Pin(2+Tab) CFP15 T/R Automotive AEC-Q101 Min Qty: 82 Package Multiple: 1 Date Code: 2317 Americas - 2881
  • 82 $0.4450
$0.4450 Buy Now
Rochester Electronics PMEG045T150EPD - 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier RoHS: Compliant Status: Active Min Qty: 1 30470
  • 100 $0.4447
  • 500 $0.4002
  • 1,000 $0.3691
  • 10,000 $0.3291
  • 100,000 $0.2757
$0.2757 / $0.4447 Buy Now
DISTI # PMEG045T150EPDAZ
TTI Schottky Diodes & Rectifiers 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 0
  • 5,000 $0.4860
$0.4860 Buy Now
DISTI # PMEG045T150EPDAZ
IBS Electronics DIODE SCHOTTKY 45V 21A AUTOMOTIVE 3-PIN(2&#x2B, TAB) CFP15 T/R Min Qty: 5000 Package Multiple: 1 0
  • 5,000 $0.4550
$0.4550 Buy Now
DISTI # PMEG045T150EPDAZ
Avnet Silica Diode Schottky 45V 15A 3Pin CFP15 Plastic TR (Alt: PMEG045T150EPDAZ) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PMEG045T150EPDAZ
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 105
  • 5 $0.2550
$0.2550 Buy Now
DISTI # PMEG045T150EPDAZ
EBV Elektronik Diode Schottky 45V 15A 3Pin CFP15 Plastic TR (Alt: PMEG045T150EPDAZ) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for PMEG045T150EPDAZ

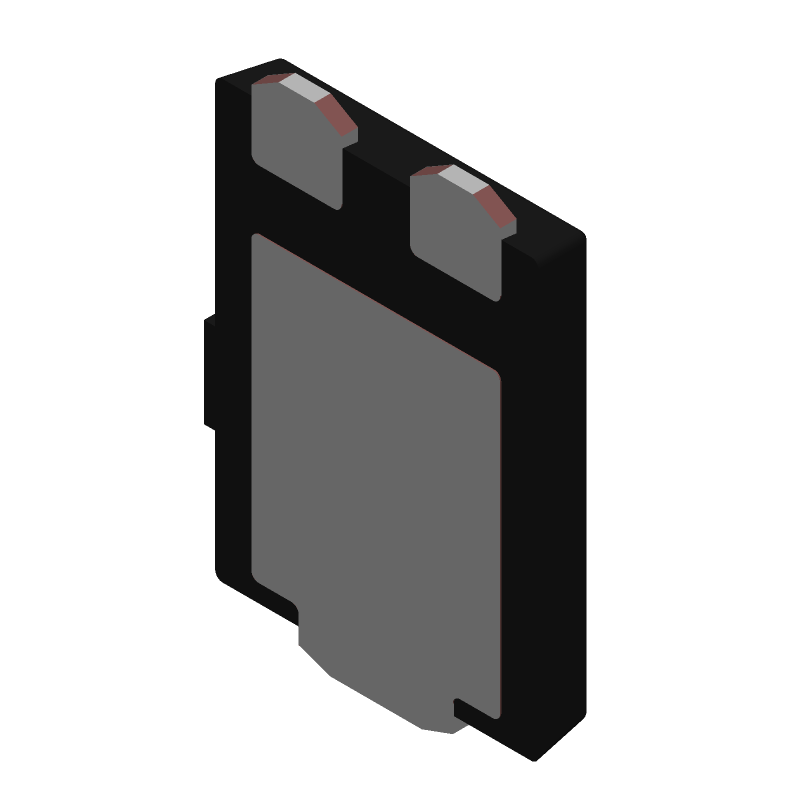

PMEG045T150EPDAZ CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PMEG045T150EPDAZ Part Data Attributes

Parametric Data
PMEG045T150EPDAZ Nexperia
Buy Now Datasheet
Compare Parts:
PMEG045T150EPDAZ Nexperia PMEG045T150EPD - 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier@en-us DFP 3-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code DFP
Pin Count 3
Manufacturer Package Code SOT1289
Reach Compliance Code not_compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Nexperia
Additional Feature FREE WHEELING DIODE, LOW LEAKAGE CURRENT
Application EFFICIENCY
Case Connection CATHODE
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.55 V
JESD-30 Code R-PDSO-F3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 210 A
Number of Elements 1
Number of Phases 1
Number of Terminals 3
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max 1.66 W
Reference Standard IEC-60134
Rep Pk Reverse Voltage-Max 45 V
Reverse Current-Max 100 µA
Reverse Recovery Time-Max 0.02 µs
Surface Mount YES
Technology SCHOTTKY
Terminal Finish TIN
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

PMEG045T150EPDAZ Related Parts

PMEG045T150EPDAZ Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for PMEG045T150EPDAZ is a pad layout with a minimum size of 1.5 mm x 1.5 mm, with a thermal pad of 2.5 mm x 2.5 mm. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.

  • To ensure the reliability of PMEG045T150EPDAZ in high-temperature applications, it's crucial to follow the recommended operating temperature range (up to 150°C), use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider derating the device's power dissipation according to the ambient temperature.

  • The maximum allowed voltage transient for PMEG045T150EPDAZ is 80 V for a duration of less than 100 ms. Exceeding this limit may damage the device. It's essential to ensure that the input voltage remains within the recommended operating range to prevent damage.

  • PMEG045T150EPDAZ is not designed for use in high-humidity environments. The device is sensitive to moisture, and exposure to high humidity may lead to reliability issues or even failure. If you need a device for high-humidity applications, consider using a different part with moisture-resistant packaging.

  • To calculate the power dissipation of PMEG045T150EPDAZ, you need to consider the input voltage, output current, and efficiency of the device. Use the following formula: Pd = (Vin x Iin) - (Vout x Iout), where Pd is the power dissipation, Vin is the input voltage, Iin is the input current, Vout is the output voltage, and Iout is the output current.
