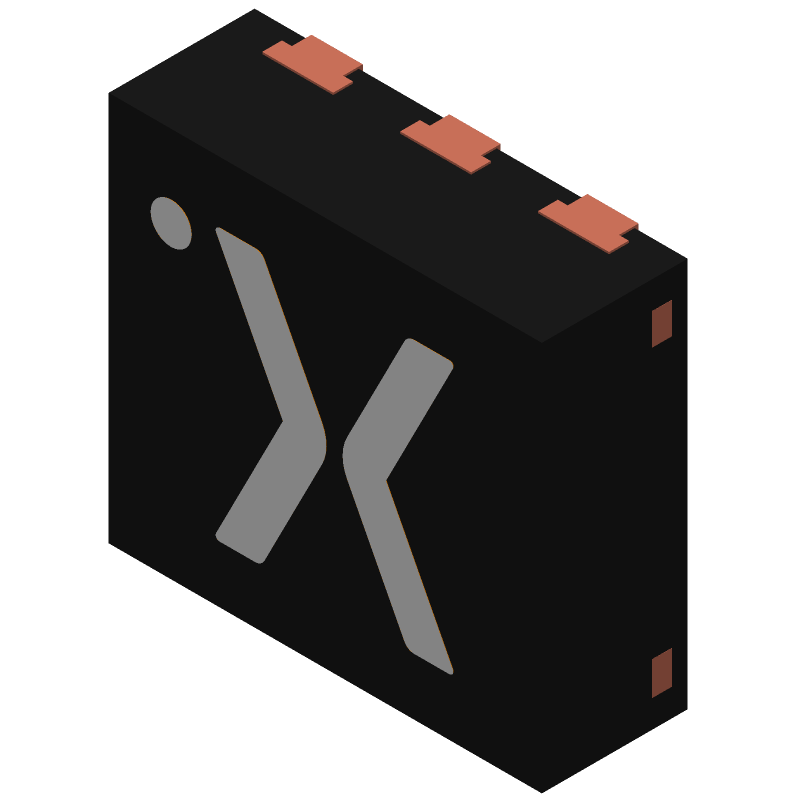

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PMDXB950UPELZ by Nexperia
Results Overview of PMDXB950UPELZ by Nexperia
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
PMDXB950UPELZ Information
PMDXB950UPELZ by Nexperia is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PMDXB950UPELZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AC3825
|
Newark | Mosfet, Dual P-Ch, -20V, -0.5A, Dfn1010B, Transistor Polarity:Dual P Channel, Continuous Drain Current Id:-500Ma, Drain Source Voltage Vds:-20V, On Resistance Rds(On):1.02Ohm, Rds(On) Test Voltage Vgs:-4.5V, Threshold Voltage Rohs Compliant: Yes |Nexperia PMDXB950UPELZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 286 |
|
$0.0380 | Buy Now |
|
DISTI #
1727-2601-1-ND
|
DigiKey | MOSFET 2P-CH 20V 0.5A 6DFN Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
37983 In Stock |
|
$0.0854 / $0.4200 | Buy Now |
|
DISTI #
PMDXB950UPELZ
|
Avnet Americas | Trans MOSFET Array Dual P-CH 20V 0.5A 6-Pin DFN1010B T/R - Tape and Reel (Alt: PMDXB950UPELZ) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0737 / $0.0815 | Buy Now |
|
DISTI #
771-PMDXB950UPELZ
|
Mouser Electronics | MOSFETs 20 V, dual P-channel Trench MOSFET RoHS: Compliant | 6959 |
|
$0.0840 / $0.4000 | Buy Now |
|
DISTI #
P40:2555_23989962
|
Arrow Electronics | Trans MOSFET P-CH 20V 0.5A 6-Pin DFN-B EP T/R RoHS: Compliant Min Qty: 1459 Package Multiple: 1 Date Code: 2308 | Europe - 480000 |
|
$0.0767 | Buy Now |
|
DISTI #
E02:0323_10321933
|
Arrow Electronics | Trans MOSFET P-CH 20V 0.5A 6-Pin DFN-B EP T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 8 Weeks Date Code: 2308 | Europe - 15000 |
|
$0.0184 | Buy Now |
|
DISTI #
87907447
|
Verical | Trans MOSFET P-CH 20V 0.5A 6-Pin DFN-B EP T/R RoHS: Compliant Min Qty: 3469 Package Multiple: 1 Date Code: 2201 | Americas - 10000 |
|
$0.0808 / $0.1081 | Buy Now |
|
DISTI #
66460124
|
Verical | Trans MOSFET P-CH 20V 0.5A 6-Pin DFN-B EP T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 | Americas - 10000 |
|
$0.0182 | Buy Now |
|
|
Rochester Electronics | PMDXB950UPEL - 20 V, dual P-channel Trench MOSFET RoHS: Compliant Status: Active Min Qty: 1 | 10000 |
|
$0.0646 / $0.1042 | Buy Now |
|
DISTI #
PMDXB950UPELZ
|
TTI | MOSFETs 20 V, dual P-channel Trench MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.0800 / $0.0860 | Buy Now |
Part Details for PMDXB950UPELZ
PMDXB950UPELZ CAD Models
PMDXB950UPELZ Part Data Attributes
|
|
PMDXB950UPELZ
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PMDXB950UPELZ
Nexperia
PMDXB950UPEL - 20 V, dual P-channel Trench MOSFET@en-us DFN 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFN | |
| Package Description | DFN1010B-6, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT1216 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | DRAIN | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 0.5 A | |
| Drain-source On Resistance-Max | 1.4 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-N6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
