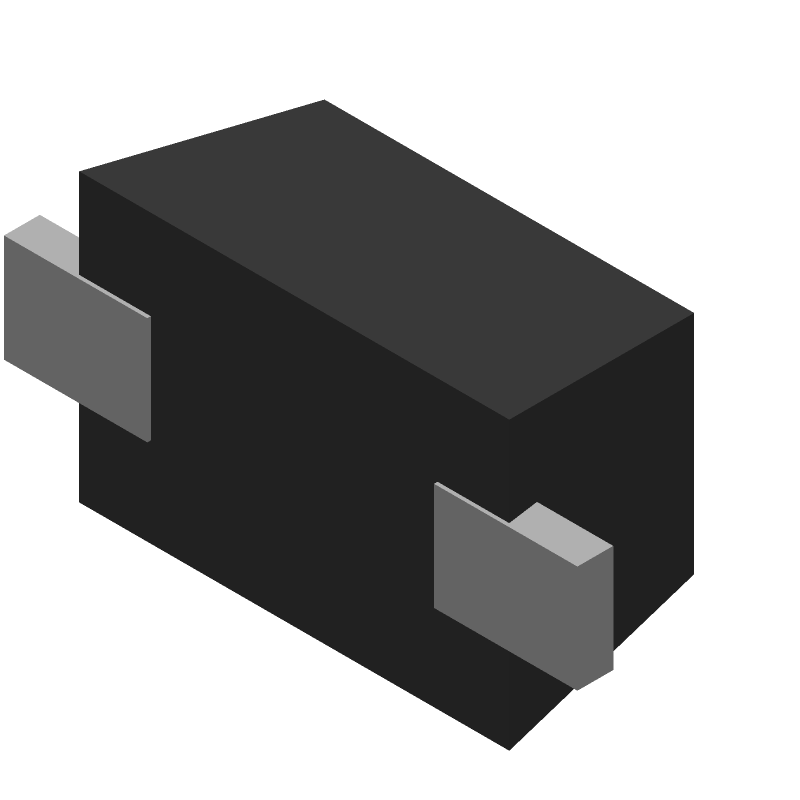

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PJSD24TS_R1_00001 by PanJit Semiconductor
Results Overview of PJSD24TS_R1_00001 by PanJit Semiconductor
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
PJSD24TS_R1_00001 Information
PJSD24TS_R1_00001 by PanJit Semiconductor is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PJSD24TS_R1_00001
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
241-PJSD24TSR100001
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 24V,ESD Protection,SOD-523,UNI RoHS: Compliant | 10628 |
|
$0.0420 / $0.2300 | Buy Now |
|
DISTI #
87656714
|
Verical | PJSD24TS_R1_00001 Min Qty: 2017 Package Multiple: 1 | Americas - 5000 |
|
$0.0729 / $0.1510 | Buy Now |
|
DISTI #
PJSD24TS-R1
|
TME | Diode: TVS, 120W, 26.7V, unidirectional, SOD523, reel,tape, 25pF Min Qty: 1 | 0 |
|
$0.0595 / $0.3078 | RFQ |
|
|
NAC | 24V,ESD Protection,SOD-523,UNI RoHS: Compliant Min Qty: 30000 Package Multiple: 5000 Container: Reel | 0 |
|
$0.0200 / $0.0240 | Buy Now |
|
DISTI #
PJSD24TS_R1_00001
|
Avnet Silica | SOD 523250W43V25pFESD ProtSMDsingle (Alt: PJSD24TS_R1_00001) RoHS: Compliant Min Qty: 30000 Package Multiple: 5000 Lead time: 18 Weeks, 0 Days | Silica - 20000 |
|
Buy Now |
Part Details for PJSD24TS_R1_00001
PJSD24TS_R1_00001 CAD Models
PJSD24TS_R1_00001 Part Data Attributes
|
|
PJSD24TS_R1_00001
PanJit Semiconductor
Buy Now
Datasheet
|
Compare Parts:
PJSD24TS_R1_00001
PanJit Semiconductor
Trans Voltage Suppressor Diode, 120W, 24V V(RWM), Unidirectional, 1 Element, Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANJIT INTERNATIONAL INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | PANJIT | |
| Breakdown Voltage-Min | 26.7 V | |
| Breakdown Voltage-Nom | 26.7 V | |
| Clamping Voltage-Max | 32 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| Non-rep Peak Rev Power Dis-Max | 120 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Rep Pk Reverse Voltage-Max | 24 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL |
Alternate Parts for PJSD24TS_R1_00001
This table gives cross-reference parts and alternative options found for PJSD24TS_R1_00001. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PJSD24TS_R1_00001, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PJSD24TS | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 120W, 24V V(RWM), Unidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2 | PJSD24TS_R1_00001 vs PJSD24TS |
| PJSD24TS_R2_00001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 120W, 24V V(RWM), Unidirectional, 1 Element, Silicon, | PJSD24TS_R1_00001 vs PJSD24TS_R2_00001 |
