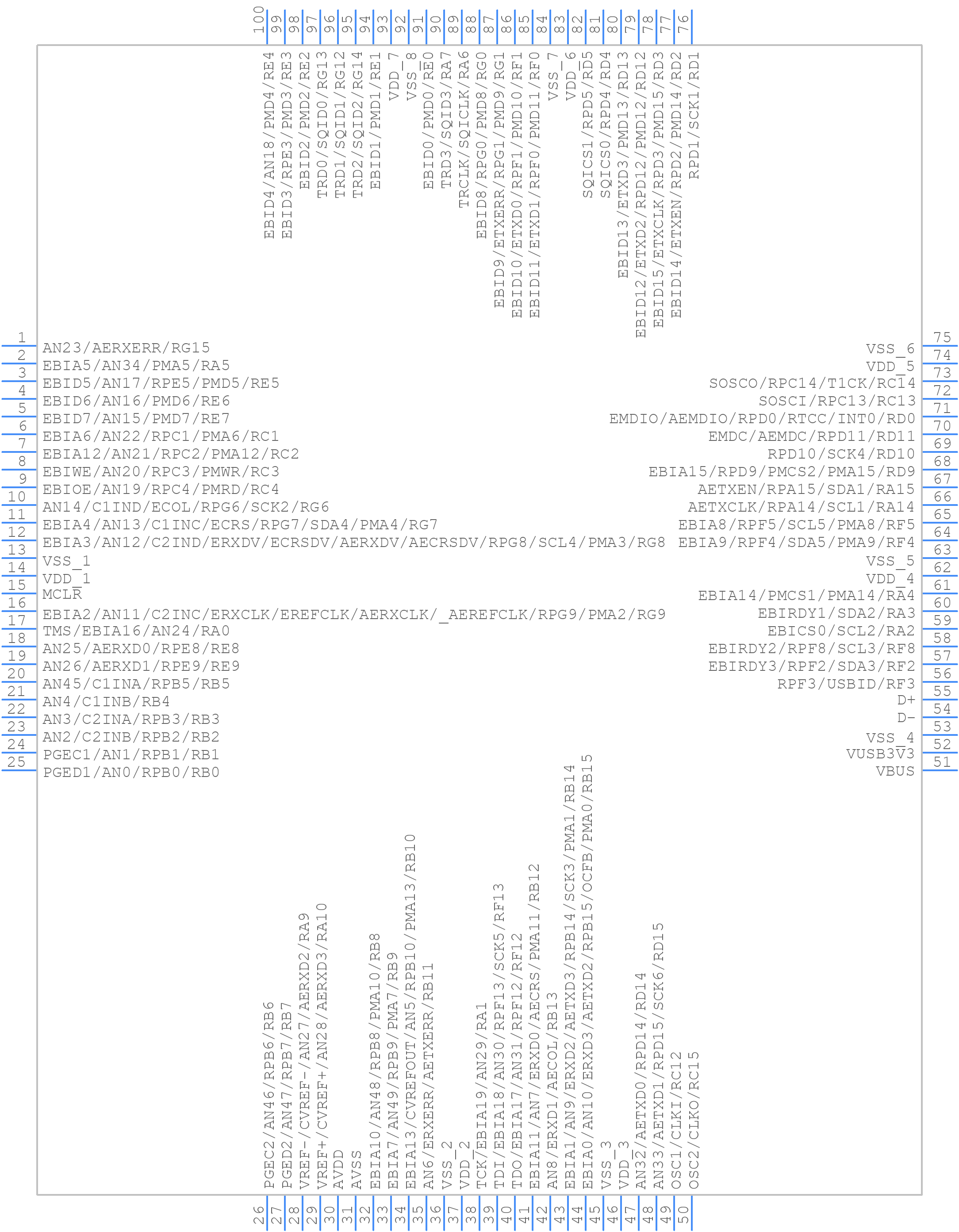

Part Symbol
-
Footprint
-

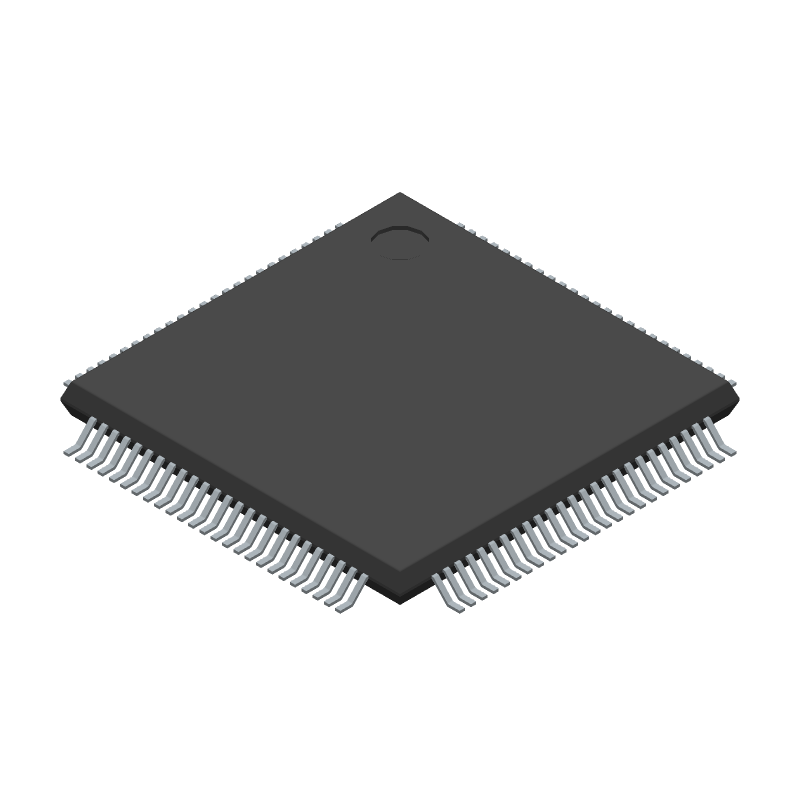

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PIC32MZ2048EFM100-I/PT by Microchip Technology Inc
Results Overview of PIC32MZ2048EFM100-I/PT by Microchip Technology Inc
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PIC32MZ2048EFM100-I/PT Information
PIC32MZ2048EFM100-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC32MZ2048EFM100-I/PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47Y9508
|
Newark | Mcu, 252Mhz, 32Bit, Tqfp-100, Product Range:Pic32 Family Pic32Mzef Series Microcontrollers, Device Core:Pic32, Data Bus Width:32 Bit, Operating Frequency Max:252Mhz, Program Memory Size:2Mb, No. Of Pins:100Pins, No. Of I/O S:78I/O S Rohs Compliant: Yes |Microchip PIC32MZ2048EFM100-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 429 |
|
$13.0400 / $15.4000 | Buy Now |
|
DISTI #
PIC32MZ2048EFM100-I/PT-ND
|
DigiKey | IC MCU 32BIT 2MB FLASH 100TQFP Min Qty: 1 Lead time: 6 Weeks Container: Tray |
378 In Stock |
|
$13.0400 / $15.7100 | Buy Now |
|
DISTI #
PIC32MZ2048EFM100-I/PT
|
Avnet Americas | 32 Bit Microcontroller, PIC32 Family PIC32MZEF Series Microcontrollers, PIC32, 32 bit, 252 MHz - Trays (Alt: PIC32MZ2048EFM100-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tray | 1361 |
|
$13.0400 / $15.7100 | Buy Now |
|
DISTI #
47Y9508
|
Avnet Americas | 32 Bit Microcontroller, PIC32 Family PIC32MZEF Series Microcontrollers, PIC32, 32 bit, 252 MHz - Bulk (Alt: 47Y9508) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 31 Weeks, 4 Days Container: Bulk | 429 Partner Stock |
|
$13.5600 / $15.9600 | Buy Now |
|
DISTI #
579-MZ2048EFM100IPT
|
Mouser Electronics | 32-bit Microcontrollers - MCU 32-BIT MCU 2048KB FL 512KB RAM, Crypto RoHS: Compliant | 1109 |
|
$13.0400 / $15.7100 | Buy Now |
|
DISTI #
V99:2348_13978436
|
Arrow Electronics | Secure MCU 32bit PIC32 PIC RISC 2MB Flash 3.3V 100-Pin TQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2332 | Americas - 104 |
|
$7.7260 / $14.2640 | Buy Now |
|
DISTI #
PIC32MZ2048EFM100-I/PT
|
Microchip Technology Inc | 32 Bit MCU, FPU, 2MB Flash, 512KB RAM, 200MHz, 100Pin, USB-HS, ENET, CAN, Crypto, TQFP, Projected EOL: 2039-07-09 COO: Thailand ECCN: 5A992.c RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray |
1455 Alternates Available |
|
$11.4100 / $15.7100 | Buy Now |
|
|
Onlinecomponents.com | 32 Bit MCU - Floating Point Unit - Audio & Graphics Interfaces - HS USB - Ethernet - Advanced Analog - PIC32 EF Family Features (Crypto and CAN)2048Kb Flash - 200MHz - 100-lead TQFP - -40°C to +85°C RoHS: Compliant |
714 In Stock 1309 Factory Stock |
|
$12.5300 / $17.1400 | Buy Now |
|
DISTI #
88069869
|
Verical | Secure MCU 32bit PIC32 PIC RISC 2MB Flash 3.3V 100-Pin TQFP Tray RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2402 | Americas - 714 |
|
$16.4580 / $22.2820 | Buy Now |
|
DISTI #
87212756
|
Verical | Secure MCU 32bit PIC32 PIC RISC 2MB Flash 3.3V 100-Pin TQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2439 | Americas - 476 |
|
$13.1100 / $15.3900 | Buy Now |
Part Details for PIC32MZ2048EFM100-I/PT
PIC32MZ2048EFM100-I/PT CAD Models
PIC32MZ2048EFM100-I/PT Part Data Attributes
|
|
PIC32MZ2048EFM100-I/PT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC32MZ2048EFM100-I/PT
Microchip Technology Inc
MICROCONTROLLER
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | TQFP-100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 31 Weeks, 4 Days | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | IT ALSO HAS 12-CH DEDICATED DMA AND 160KBYTE OF BOOT FLASH MEMORY | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | PIC32 | |
| Clock Frequency-Max | 64 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e3 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 8 | |
| Number of External Interrupts | 5 | |
| Number of I/O Lines | 78 | |
| Number of Terminals | 100 | |
| Number of Timers | 10 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| RAM (bytes) | 524288 | |
| RAM (words) | 524288 | |
| ROM (words) | 2097152 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.2 mm | |
| Speed | 252 MHz | |
| Supply Current-Max | 135 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.1 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for PIC32MZ2048EFM100-I/PT
This table gives cross-reference parts and alternative options found for PIC32MZ2048EFM100-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MZ2048EFM100-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PIC32MZ2048EFM100T-I/PT | Microchip Technology Inc | $15.6100 | IC MCU 32BIT 2MB FLASH 100TQFP | PIC32MZ2048EFM100-I/PT vs PIC32MZ2048EFM100T-I/PT |
PIC32MZ2048EFM100-I/PT Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the PIC32MZ2048EFM100-I/PT is 200 MHz.
-
The PIC32MZ2048EFM100-I/PT has 2 MB of flash memory.
-
The maximum operating temperature range of the PIC32MZ2048EFM100-I/PT is -40°C to +85°C.
-
Yes, the PIC32MZ2048EFM100-I/PT has a built-in USB 2.0 OTG interface.
-
The power consumption of the PIC32MZ2048EFM100-I/PT varies depending on the operating frequency and mode, but it can be as low as 1.6 mA/MHz in Run mode.
