Microcontrollers and Processors / Microcontrollers / PIC32MZ1024EFE100-I/PF
Datasheets
PIC32MZ1024EFE100-I/PF by: Microchip Technology Inc

PIC32MZ1024EFE100-I/PF

Part Details for PIC32MZ1024EFE100-I/PF by Microchip Technology Inc

Results Overview of PIC32MZ1024EFE100-I/PF by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC32MZ1024EFE100-I/PF Information

PIC32MZ1024EFE100-I/PF by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC32MZ1024EFE100-I/PF

Part # Distributor Description Stock Price Buy
DISTI # 47Y9339
Newark Mcu, 32Bit, Pic32, 200Mhz, Tqfp-100, Product Range:Pic32 Family Pic32Mzef Series Microcontrollers, Device Core:Pic32, Data Bus Width:32 Bit, Operating Frequency Max:200Mhz, Program Memory Size:1Mb, No. Of Pins:100Pins Rohs Compliant: Yes |Microchip PIC32MZ1024EFE100-I/PF RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 25 $12.1600
  • 100 $11.0900
$11.0900 / $12.1600 Buy Now
DISTI # PIC32MZ1024EFE100-I/PF-ND
DigiKey IC MCU 32BIT 1MB FLASH 100TQFP Min Qty: 1 Lead time: 7 Weeks Container: Tray 77
In Stock
  • 1 $12.9600
  • 25 $11.8900
  • 100 $10.7601
$10.7601 / $12.9600 Buy Now
DISTI # PIC32MZ1024EFE100-I/PF
Avnet Americas 1024KB FLASH, 256KB RAM, NO CRYPTO, NO CAN - Trays (Alt: PIC32MZ1024EFE100-I/PF) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 7 Weeks, 0 Days Container: Tray 0
  • 90 $11.1260
  • 180 $11.0347
  • 360 $10.9424
  • 540 $10.8515
  • 720 $10.7596
$10.7596 / $11.1260 Buy Now
DISTI # 579-MZ1024EFE100IPF
Mouser Electronics 32-bit Microcontrollers - MCU 32-BIT MCU 1024KB FL 256KB RAM, No Crypto RoHS: Compliant 20
  • 1 $12.9600
  • 25 $11.8900
  • 90 $10.7600
$10.7600 / $12.9600 Buy Now
DISTI # PIC32MZ1024EFE100-I/PF
Microchip Technology Inc 32 Bit MCU, FPU, 1MB Flash, 256KB RAM, 200MHz, 100Pin, USB-HS, ENET, SQI, TQFP, Projected EOL: 2039-07-09 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tray 87

Alternates Available
  • 1 $12.9600
  • 25 $11.8900
  • 100 $10.7600
  • 1,000 $9.9000
  • 5,000 $9.4200
$9.4200 / $12.9600 Buy Now
Onlinecomponents.com 32 Bit MCU - Floating Point Unit - Audio & Graphics Interfaces - HS USB - Ethernet - Advanced Analog - PIC32 EF Family Features (no CAN, no Crypto)1024Kb Flash - 200MHz - 100-lead TQFP - -40°C to +85°C RoHS: Compliant 0
  • 23 $16.1600
  • 45 $12.3900
  • 68 $11.4800
  • 90 $11.2500
$11.2500 / $16.1600 Buy Now
DISTI # 32MZ1024EFE100-IPF
TME IC: PIC microcontroller, 1024kB, 2.2÷3.6VDC, SMD, TQFP100, PIC32 Min Qty: 1 0
  • 1 $14.2000
  • 5 $13.1400
  • 25 $12.0900
  • 90 $11.4800
$11.4800 / $14.2000 RFQ
DISTI # PIC32MZ1024EFE100-I/PF
IBS Electronics 32 BIT MCU FPU 1MB FLASH 256KB RAM 200MHZ 100PIN USB-HS ENET SQI Min Qty: 90 Package Multiple: 1 0
  • 90 $14.1310
$14.1310 Buy Now
NAC 1024KB Flash, 256KB RAM, No Crypto, No CAN - Package: 100 TQFP 14x14x1mm TRAY RoHS: Compliant Min Qty: 90 Package Multiple: 90 Container: Tray 0
  • 1 $13.4600
  • 100 $12.2000
  • 500 $11.4400
  • 1,000 $11.1600
$11.1600 / $13.4600 Buy Now
DISTI # PIC32MZ1024EFE100-I/PF
Avnet Silica 1024KB FLASH 256KB RAM NO CRYPTO NO CAN (Alt: PIC32MZ1024EFE100-I/PF) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC32MZ1024EFE100-I/PF
EBV Elektronik 1024KB FLASH 256KB RAM NO CRYPTO NO CAN (Alt: PIC32MZ1024EFE100-I/PF) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics 32 Bit MCU - Floating Point Unit - Audio & Graphics Interfaces - HS USB - Ethernet - Advanced Analog - PIC32 EF Family Features (no CAN, no Crypto)1024Kb Flash - 200MHz - 100-lead TQFP - -40°C to +85°C RoHS: Compliant 0
  • 23 $16.1600
  • 45 $12.3900
  • 68 $11.4800
  • 90 $11.2500
$11.2500 / $16.1600 Buy Now
Vyrian Peripheral ICs 164
RFQ
Win Source Electronics IC MCU 32BIT 1MB FLASH 100TQFP / MIPS32® M-Class PIC® 32MZ Microcontroller IC 32-Bit Single-Core 200MHz 1MB (1M x 8) FLASH 100-TQFP (14x14) 1115
  • 2 $31.2813
  • 5 $25.6666
  • 7 $24.8646
  • 10 $24.0626
  • 13 $23.2605
  • 17 $20.8542
$20.8542 / $31.2813 Buy Now

Part Details for PIC32MZ1024EFE100-I/PF

PIC32MZ1024EFE100-I/PF CAD Models

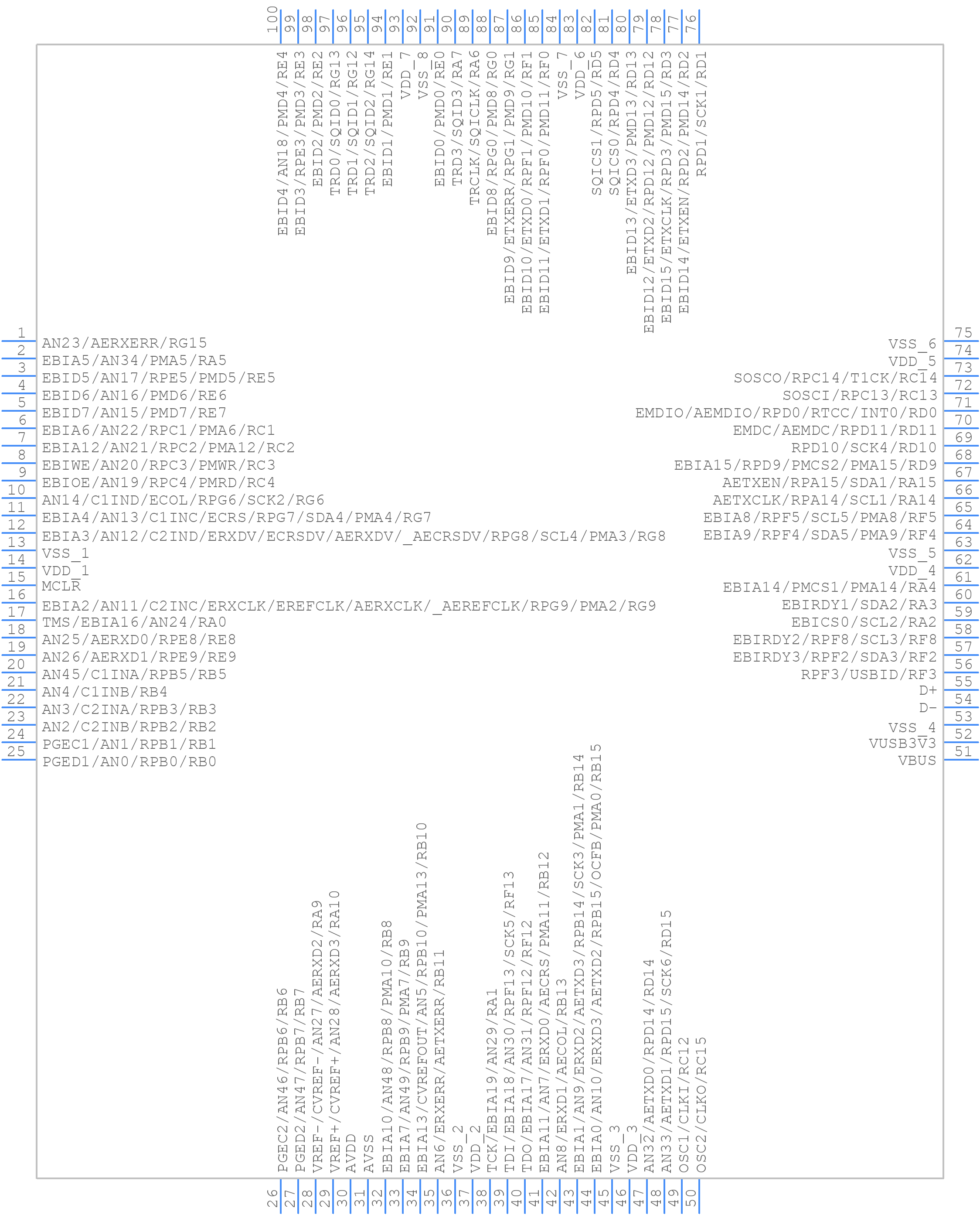

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC32MZ1024EFE100-I/PF Part Data Attributes

Parametric Data
PIC32MZ1024EFE100-I/PF Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC32MZ1024EFE100-I/PF Microchip Technology Inc PIC32MZ1024EFE100-I/PF
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature IT ALSO HAS 12-CH DEDICATED DMA AND 160KBYTE OF BOOT FLASH MEMORY
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family PIC32
Clock Frequency-Max 64 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 14 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 12
Number of External Interrupts 5
Number of I/O Lines 78
Number of Terminals 100
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP100,.63SQ
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 262144
RAM (words) 262144
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 200 MHz
Supply Current-Max 130 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC32MZ1024EFE100-I/PF

This table gives cross-reference parts and alternative options found for PIC32MZ1024EFE100-I/PF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MZ1024EFE100-I/PF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC32MZ1024EFE100-I/GJX Microchip Technology Inc $12.2250 Microcontroller, 32-Bit, FLASH, 252MHz, CMOS, PBGA100 PIC32MZ1024EFE100-I/PF vs PIC32MZ1024EFE100-I/GJX

PIC32MZ1024EFE100-I/PF Related Parts

PIC32MZ1024EFE100-I/PF Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC32MZ1024EFE100-I/PF is 200 MHz.

  • The PIC32MZ1024EFE100-I/PF has 1024 KB (1 MB) of flash memory.

  • The PIC32MZ1024EFE100-I/PF has 128 KB of RAM.

  • Yes, the PIC32MZ1024EFE100-I/PF has a USB 2.0 On-The-Go (OTG) interface.

  • The PIC32MZ1024EFE100-I/PF can operate at 3.3V, but not 5V. The recommended operating voltage is 3.0V to 3.6V.
