Microcontrollers and Processors / Microcontrollers / PIC32MK0512GPE100T-I/PT
Datasheets
PIC32MK0512GPE100T-I/PT by: Microchip Technology Inc

MCU32 120MHZ 4 I2C 6 I2S USB FS

Part Details for PIC32MK0512GPE100T-I/PT by Microchip Technology Inc

Results Overview of PIC32MK0512GPE100T-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC32MK0512GPE100T-I/PT Information

PIC32MK0512GPE100T-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC32MK0512GPE100T-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 23AC8694
Newark Mcu, 32Bit, 120Mhz, Tqfp-100, Product Range:Pic32 Family Pic32Mkgp Series Microcontrollers, Device Core:Pic32, Data Bus Width:32 Bit, Operating Frequency Max:120Mhz, Program Memory Size:512Kb, No. Of Pins:100Pins, Qualification:- Rohs Compliant: Yes |Microchip PIC32MK0512GPE100T-I/PT RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,200 $8.4100
$8.4100 Buy Now
DISTI # PIC32MK0512GPE100T-I/PTCT-ND
DigiKey IC MCU 32BIT 512KB FLASH 100TQFP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1499
In Stock
  • 1 $9.8200
  • 25 $9.0100
  • 100 $8.1600
  • 1,200 $8.1600
$8.1600 / $9.8200 Buy Now
DISTI # PIC32MK0512GPE100T
Avnet Americas - Tape and Reel (Alt: PIC32MK0512GPE100T) RoHS: Not Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 1,200 $8.4266
  • 2,400 $8.3575
  • 4,800 $8.2875
  • 7,200 $8.2187
  • 9,600 $8.1491
$8.1491 / $8.4266 Buy Now
DISTI # 579-MK0512GPE100TIPT
Mouser Electronics 32-bit Microcontrollers - MCU MCU32, 120MHz, 4 I2C, 6 I2S, USB FS, CAN 2.0B, 12-bit ADC RoHS: Compliant 244
  • 1 $9.8200
  • 25 $9.0100
  • 100 $8.1600
$8.1600 / $9.8200 Buy Now
DISTI # PIC32MK0512GPE100T-I/PT
Microchip Technology Inc 32 Bit MCU, FPU, 512KB Flash, 128KB RAM, EEPROM, 120MHz, 100Pin, USB, CAN, TQFP, Projected EOL: 2044-04-18 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 996

Alternates Available
  • 1 $9.8200
  • 25 $9.0100
  • 100 $8.1600
  • 1,000 $7.5100
  • 5,000 $7.1300
$7.1300 / $9.8200 Buy Now
Onlinecomponents.com 32-bit General Purpose MCU - 512 KB Flash - 256KB SRAM - 4KB EEPROM - 2.2 to 3.6V - -40°C to +85°C - 100-pin TQFP - Teap&Reel RoHS: Compliant 0
  • 300 $22.5000
  • 600 $11.8800
  • 900 $8.1700
  • 1,200 $8.0000
$8.0000 / $22.5000 Buy Now
NAC MCU32, 120MHz, 4 I2C, 6 I2S, USB FS, CAN 2.0B, 12-bit ADC - Package: 100 TQFP 12x12x1mm T/R RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 0
  • 1 $10.1900
  • 100 $9.2400
  • 500 $8.6600
  • 1,000 $8.4500
$8.4500 / $10.1900 Buy Now
DISTI # PIC32MK0512GPE100T-I/PT
Avnet Silica (Alt: PIC32MK0512GPE100T-I/PT) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC32MK0512GPE100T-I/PT
EBV Elektronik (Alt: PIC32MK0512GPE100T-I/PT) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics 32-bit General Purpose MCU - 512 KB Flash - 256KB SRAM - 4KB EEPROM - 2.2 to 3.6V - -40°C to +85°C - 100-pin TQFP - Teap&Reel RoHS: Compliant 0
  • 300 $22.5000
  • 600 $11.8800
  • 900 $8.1700
  • 1,200 $8.0000
$8.0000 / $22.5000 Buy Now

Part Details for PIC32MK0512GPE100T-I/PT

PIC32MK0512GPE100T-I/PT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

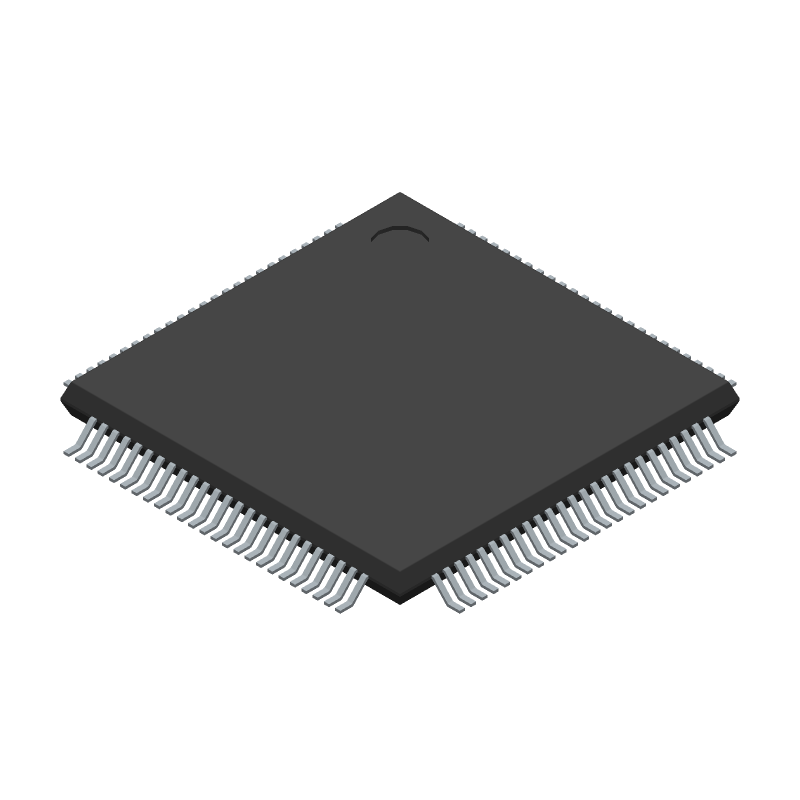

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC32MK0512GPE100T-I/PT Part Data Attributes

Parametric Data
PIC32MK0512GPE100T-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC32MK0512GPE100T-I/PT Microchip Technology Inc MCU32 120MHZ 4 I2C 6 I2S USB FS
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description TQFP-100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family PIC32
Clock Frequency-Max 64 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 12 mm
Low Power Mode YES
Number of DMA Channels 21
Number of External Interrupts 5
Number of I/O Lines 77
Number of Serial I/Os 6
Number of Terminals 100
Number of Timers 12
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TFQFP
Package Equivalence Code TQFP100,.55SQ,16
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE, FINE PITCH
RAM (bytes) 131072
ROM (words) 524288
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.2 mm
Speed 120 MHz
Supply Current-Max 55 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.4 mm
Terminal Position QUAD
Width 12 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC32MK0512GPE100T-I/PT

This table gives cross-reference parts and alternative options found for PIC32MK0512GPE100T-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MK0512GPE100T-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC32MK0512GPE100-E/PT Microchip Technology Inc Check for Price MCU32, 120MHZ,CAN 2.0B, 12-BIT A PIC32MK0512GPE100T-I/PT vs PIC32MK0512GPE100-E/PT

PIC32MK0512GPE100T-I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC32MK0512GPE100T-I/PT is 120 MHz.

  • The PIC32MK0512GPE100T-I/PT has 1 MB of flash memory.

  • The PIC32MK0512GPE100T-I/PT can operate at 3.3V, but not 5V. The recommended operating voltage is 3.0V to 3.6V.

  • Yes, the PIC32MK0512GPE100T-I/PT has a built-in USB 2.0 Full-Speed interface.

  • Yes, the PIC32MK0512GPE100T-I/PT is rated for industrial temperature range operation (-40°C to +85°C).
