Microcontrollers and Processors / Microcontrollers / PIC24FJ96GA010-I/PT
Datasheets
PIC24FJ96GA010-I/PT by: Microchip Technology Inc

16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-100

Part Details for PIC24FJ96GA010-I/PT by Microchip Technology Inc

Results Overview of PIC24FJ96GA010-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC24FJ96GA010-I/PT Information

PIC24FJ96GA010-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24FJ96GA010-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 56K7353
Newark Microcontroller Rohs Compliant: Yes |Microchip PIC24FJ96GA010-I/PT RoHS: Compliant Min Qty: 238 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $4.4200
$4.4200 Buy Now
DISTI # PIC24FJ96GA010-I/PT-ND
DigiKey IC MCU 16BIT 96KB FLASH 100TQFP Min Qty: 238 Lead time: 14 Weeks Container: Tray Temporarily Out of Stock
  • 238 $4.2900
$4.2900 Buy Now
DISTI # PIC24FJ96GA010-I/PT
Avnet Americas - Trays (Alt: PIC24FJ96GA010-I/PT) RoHS: Compliant Min Qty: 238 Package Multiple: 119 Lead time: 14 Weeks, 0 Days Container: Tray 0
  • 238 $4.5375
  • 476 $4.4644
  • 714 $4.3920
  • 1,190 $4.3194
  • 2,380 $4.2471
$4.2471 / $4.5375 Buy Now
DISTI # 579-PIC24FJ96GA010
Mouser Electronics 16-bit Microcontrollers - MCU 96KB 84 I/O RoHS: Compliant 0
  • 238 $4.2900
$4.2900 Order Now
DISTI # PIC24FJ96GA010-I/PT
Microchip Technology Inc 16-Bit MCU, 96KB Flash, 8KB RAM, 100 pin TQFP, TQFP, Projected EOL: 2034-10-04 COO: Taiwan, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 14 Weeks, 0 Days Container: Tray 0

Alternates Available
  • 1 $5.1700
  • 25 $4.7500
  • 100 $4.2900
  • 1,000 $3.9500
  • 5,000 $3.7500
$3.7500 / $5.1700 Buy Now
DISTI # 70045744
RS PIC24FJ96GA010-I/PT,16bit PIC Microcontroller,32MHz,96kb Flash,100-Pin TQFP Min Qty: 238 Package Multiple: 1 Lead time: 30 Weeks, 0 Days Container: Bulk 0
  • 238 $8.3900
  • 1,190 $7.9700
  • 2,380 $7.5500
  • 4,760 $7.1300
$7.1300 / $8.3900 RFQ
Onlinecomponents.com Microcontroller - PIC 24F - 16-Bit - 16MHz - 84 I/O - 96KB (32K x 24) FLASH - 8K x 8 RAM - 2 to 3.6V - 100-TQFP (12x12). RoHS: Compliant 0
  • 60 $6.5300
  • 119 $4.9300
  • 179 $4.5900
  • 238 $4.5000
$4.5000 / $6.5300 Buy Now
Bristol Electronics   80
RFQ
Quest Components   64
  • 1 $9.0000
  • 12 $6.0000
  • 43 $5.5500
$5.5500 / $9.0000 Buy Now
DISTI # PIC24FJ96GA010
TME IC: PIC microcontroller, 96kB, I2C x2,IrDA,LIN,SPI x2,UART x2 Min Qty: 1 0
  • 1 $5.3400
  • 5 $5.0700
  • 25 $4.5400
  • 100 $4.1200
$4.1200 / $5.3400 RFQ
NAC 96KB Flash, 8 Kb RAM, 84 I/O - Package: 100 TQFP 12x12x1mm TRAY RoHS: Compliant Min Qty: 119 Package Multiple: 119 Container: Tray 0
  • 1 $5.3400
  • 100 $4.8400
  • 500 $4.5400
  • 1,000 $4.4300
$4.4300 / $5.3400 Buy Now
DISTI # PIC24FJ96GA010-I/PT
Avnet Silica (Alt: PIC24FJ96GA010-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics Microcontroller - PIC 24F - 16-Bit - 16MHz - 84 I/O - 96KB (32K x 24) FLASH - 8K x 8 RAM - 2 to 3.6V - 100-TQFP (12x12). RoHS: Compliant 0
  • 60 $6.5300
  • 119 $4.9300
  • 179 $4.5900
  • 238 $4.5000
$4.5000 / $6.5300 Buy Now

Part Details for PIC24FJ96GA010-I/PT

PIC24FJ96GA010-I/PT CAD Models

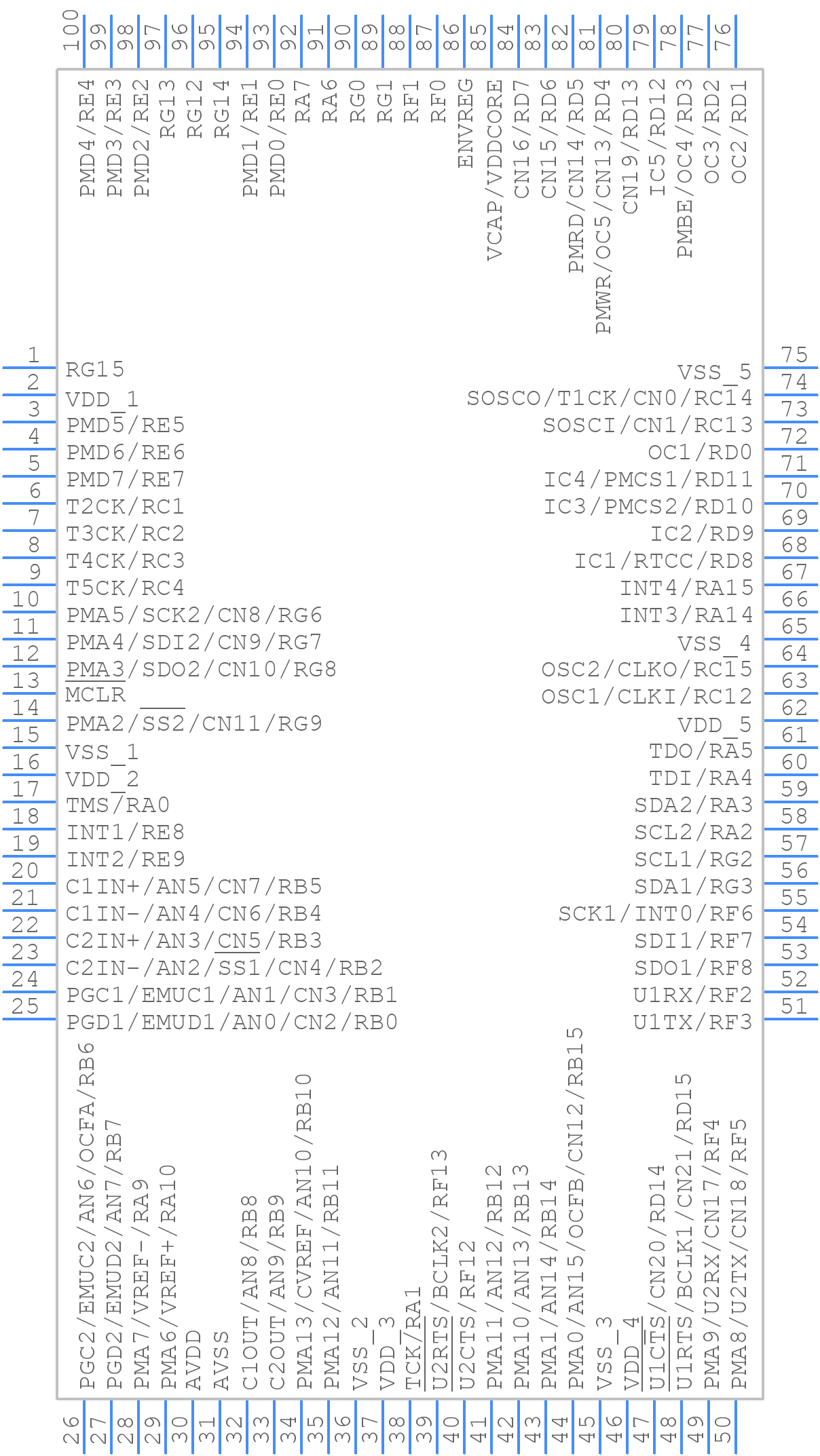

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

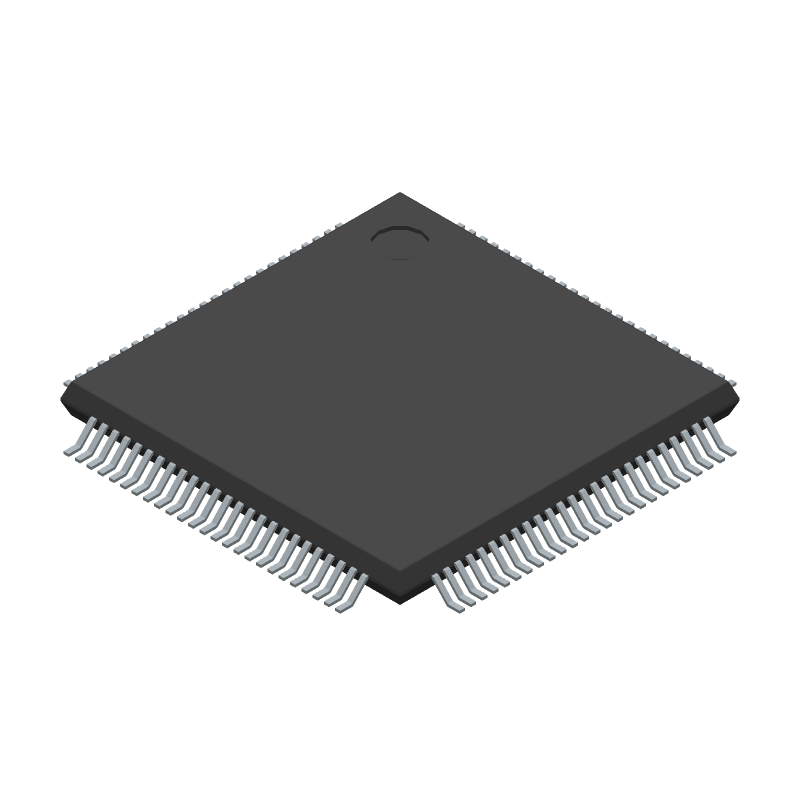

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC24FJ96GA010-I/PT Part Data Attributes

Parametric Data
PIC24FJ96GA010-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC24FJ96GA010-I/PT Microchip Technology Inc 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-100
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code QFP
Package Description 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-100
Pin Count 100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 14 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family PIC24
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 12 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 5
Number of I/O Lines 84
Number of Serial I/Os 2
Number of Terminals 100
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP100,.55SQ,16
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 98304
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.2 mm
Speed 32 MHz
Supply Current-Max 32 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.4 mm
Terminal Position QUAD
Width 12 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC24FJ96GA010-I/PT

This table gives cross-reference parts and alternative options found for PIC24FJ96GA010-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC24FJ96GA010-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC24FJ96GA010T-I/PT Microchip Technology Inc Check for Price 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-100 PIC24FJ96GA010-I/PT vs PIC24FJ96GA010T-I/PT
Part Number Manufacturer Composite Price Description Compare
MSP430F5438AIPZR Texas Instruments $6.7205 25-MHz MCU with 256-KB flash, 16-KB SRAM, 12-bit ADC, DMA, UART/SPI/I2C, timer, HW multiplier 100-LQFP -40 to 85 PIC24FJ96GA010-I/PT vs MSP430F5438AIPZR
PIC24FJ192GB110-I/PF Microchip Technology Inc $7.1970 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 14 X 14 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ96GA010-I/PT vs PIC24FJ192GB110-I/PF
LM3S9790-IBZ80-C1 Texas Instruments Check for Price 32-BIT, FLASH, 80MHz, MICROCONTROLLER, PBGA108, ROHS COMPLIANT, MO-219F, BGA-108 PIC24FJ96GA010-I/PT vs LM3S9790-IBZ80-C1
MSP430F5637IPZR Texas Instruments Check for Price 20 MHz MCU with 192KB Flash, 16KB SRAM, 12-bit ADC, 12-bit DAC, comparator, DMA, USB 100-LQFP -40 to 85 PIC24FJ96GA010-I/PT vs MSP430F5637IPZR
PIC24FJ128DA210T-I/PT Microchip Technology Inc Check for Price 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ96GA010-I/PT vs PIC24FJ128DA210T-I/PT
MSP430F5438TPZR Texas Instruments Check for Price 16-Bit Ultra-Low-Power Microcontroller, 256KB Flash, 16KB RAM, 12 Bit ADC, 4 USCIs, 32-bit HW Multi 100-LQFP -40 to 105 PIC24FJ96GA010-I/PT vs MSP430F5438TPZR
XMS430F5438IPZ Texas Instruments Check for Price 16-Bit Ultra-Low-Power Microcontroller, 256KB Flash, 16KB RAM, 12 Bit ADC, 4 USCIs, 32-bit HW Multi 100-LQFP -40 to 85 PIC24FJ96GA010-I/PT vs XMS430F5438IPZ
LM3S9B90-IBZ80-C5 Texas Instruments Check for Price Stellaris LM3S Microcontroller 108-NFBGA -40 to 85 PIC24FJ96GA010-I/PT vs LM3S9B90-IBZ80-C5
MSP430F5636IPZR Texas Instruments Check for Price 20 MHz MCU with 128KB Flash, 16KB SRAM, 12-bit ADC, 12-bit DAC, comparator, DMA, USB 100-LQFP -40 to 85 PIC24FJ96GA010-I/PT vs MSP430F5636IPZR
PIC24FJ128DA110T-I/PT Microchip Technology Inc Check for Price 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ96GA010-I/PT vs PIC24FJ128DA110T-I/PT
