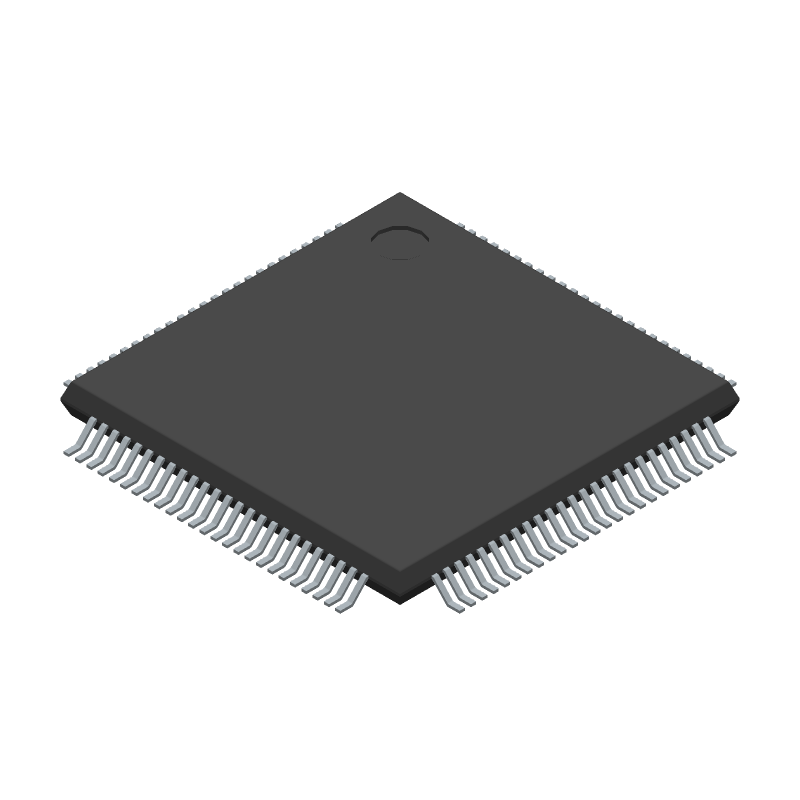

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PIC24FJ128GA310-I/PT by Microchip Technology Inc
Results Overview of PIC24FJ128GA310-I/PT by Microchip Technology Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
PIC24FJ128GA310-I/PT Information
PIC24FJ128GA310-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC24FJ128GA310-I/PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78T4450
|
Newark | 16 Bit Microcontroller, General Purpose, Pic24Fj, 32 Mhz, 128 Kb, 8 Kb, 100, Tqfp Rohs Compliant: Yes |Microchip PIC24FJ128GA310-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 475 |
|
$4.4300 / $5.3600 | Buy Now |
|
DISTI #
PIC24FJ128GA310-I/PT-ND
|
DigiKey | IC MCU 16BIT 128KB FLASH 100TQFP Min Qty: 1 Lead time: 5 Weeks Container: Tray |
14130 In Stock |
|
$4.4300 / $5.3600 | Buy Now |
|
DISTI #
PIC24FJ128GA310-I/PT
|
Avnet Americas | 16 Bit Microcontroller, General Purpose, PIC24 Family PIC24FJGA Series Microcontrollers, PIC24 - Trays (Alt: PIC24FJ128GA310-I/PT) RoHS: Compliant Min Qty: 238 Package Multiple: 119 Lead time: 5 Weeks, 0 Days Container: Tray | 0 |
|
$4.4300 / $5.3600 | Buy Now |
|
DISTI #
579-24FJ128GA310IPT
|
Mouser Electronics | 16-bit Microcontrollers - MCU 16b 16MIPS 128KB FL 8KBRAM LCD XLP Vbat RoHS: Compliant | 1099 |
|
$4.4300 / $5.3600 | Buy Now |
|
DISTI #
V99:2348_06497423
|
Arrow Electronics | MCU 16-bit PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2245 | Americas - 218 |
|
$5.6292 | Buy Now |
|
DISTI #
PIC24FJ128GA310-I/PT
|
Microchip Technology Inc | 16-bit, 16 MIPS, 128KB Flash, 8KB RAM, LCD Drive, 85 I/O, nanoWatt XLP, TQFP, Projected EOL: 2039-11-03 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tray |
15 Alternates Available |
|
$3.8800 / $5.3600 | Buy Now |
|
DISTI #
70388804
|
RS | PIC24FJ128GA310-I/PT,16bit PIC Microcontroller,32MHz,128kb Flash,100-Pin TQFP Min Qty: 238 Package Multiple: 1 Lead time: 35 Weeks, 0 Days Container: Bulk | 0 |
|
$4.5600 / $5.3600 | RFQ |
|
|
Onlinecomponents.com | MCU 16-bit PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray RoHS: Compliant |
213 In Stock |
|
$4.6800 / $7.1000 | Buy Now |
|
DISTI #
65655733
|
Verical | MCU 16-bit PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2245 | Americas - 218 |
|
$5.6292 | Buy Now |
|
DISTI #
66313346
|
Verical | MCU 16-bit PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray RoHS: Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2245 | Americas - 210 |
|
$6.6690 / $9.2300 | Buy Now |
Part Details for PIC24FJ128GA310-I/PT
PIC24FJ128GA310-I/PT CAD Models
PIC24FJ128GA310-I/PT Part Data Attributes
|
|
PIC24FJ128GA310-I/PT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC24FJ128GA310-I/PT
Microchip Technology Inc
PIC24FJ128GA310-I/PT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | PIC24 | |
| Clock Frequency-Max | 32 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e3 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 6 | |
| Number of External Interrupts | 5 | |
| Number of I/O Lines | 85 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 100 | |
| Number of Timers | 7 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TQFP | |
| Package Equivalence Code | TQFP100,.55SQ,16 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 8192 | |
| ROM (words) | 131072 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.2 mm | |
| Speed | 32 MHz | |
| Supply Current-Max | 6.9 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for PIC24FJ128GA310-I/PT
This table gives cross-reference parts and alternative options found for PIC24FJ128GA310-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC24FJ128GA310-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PIC24FJ128GA310-I/BG | Microchip Technology Inc | $5.0727 | PIC24FJ128GA310-I/BG | PIC24FJ128GA310-I/PT vs PIC24FJ128GA310-I/BG |
| PIC24FJ128GA310-I/PF | Microchip Technology Inc | $5.4794 | PIC24FJ128GA310-I/PF | PIC24FJ128GA310-I/PT vs PIC24FJ128GA310-I/PF |
| PIC24FJ128GA310T-I/PT | Microchip Technology Inc | $5.5100 | PIC24FJ128GA310T-I/PT | PIC24FJ128GA310-I/PT vs PIC24FJ128GA310T-I/PT |
| PIC24FJ128GA310-I/PTREL | Microchip Technology Inc | Check for Price | Microcontroller, 16-Bit, FLASH, 32MHz, CMOS, PQFP100 | PIC24FJ128GA310-I/PT vs PIC24FJ128GA310-I/PTREL |
| PIC24FJ128GA310T-I/BG | Microchip Technology Inc | Check for Price | PIC24FJ128GA310T-I/BG | PIC24FJ128GA310-I/PT vs PIC24FJ128GA310T-I/BG |
| PIC24FJ128GA310T-I/PF | Microchip Technology Inc | Check for Price | PIC24FJ128GA310T-I/PF | PIC24FJ128GA310-I/PT vs PIC24FJ128GA310T-I/PF |
PIC24FJ128GA310-I/PT Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the PIC24FJ128GA310-I/PT is 32 MHz.
-
The PIC24FJ128GA310-I/PT has 128 KB of flash memory.
-
The PIC24FJ128GA310-I/PT can operate at 3.3V, but not 5V. The recommended operating voltage is 2.3V to 3.6V.
-
No, the PIC24FJ128GA310-I/PT does not have a built-in USB interface. However, it can be used with an external USB transceiver chip.
-
Yes, the PIC24FJ128GA310-I/PT is rated for industrial temperature ranges (-40°C to +85°C).
