Microcontrollers and Processors / Microcontrollers / PIC24FJ128GA204-I/ML
Datasheets
PIC24FJ128GA204-I/ML by: Microchip Technology Inc

IC MICROCONTROLLER, Microcontroller

Part Details for PIC24FJ128GA204-I/ML by Microchip Technology Inc

Results Overview of PIC24FJ128GA204-I/ML by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC24FJ128GA204-I/ML Information

PIC24FJ128GA204-I/ML by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24FJ128GA204-I/ML

Part # Distributor Description Stock Price Buy
DISTI # 75X0114
Newark Mcu, 16Bit, Pic24F, 32Mhz, Qfn-44, Product Range:Pic24 Family Pic24Fj Ga Series Microcontrollers, Architecture:Pic24, No. Of Bits:16Bit, Cpu Speed:32Mhz, Program Memory Size:128Kb, Ram Memory Size:8Kb, No. Of Pins:44Pins, Mcu Case Rohs Compliant: Yes |Microchip PIC24FJ128GA204-I/ML RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 196
  • 1 $5.1700
  • 10 $4.9600
  • 25 $4.7500
  • 90 $4.5200
  • 135 $4.2900
$4.2900 / $5.1700 Buy Now
DISTI # PIC24FJ128GA204-I/ML-ND
DigiKey IC MCU 16BIT 128KB FLASH 44QFN Min Qty: 1 Lead time: 5 Weeks Container: Tube 3170
In Stock
  • 1 $5.1700
  • 25 $4.7500
  • 100 $4.2900
$4.2900 / $5.1700 Buy Now
DISTI # PIC24FJ128GA204-I/ML
Avnet Americas - Rail/Tube (Alt: PIC24FJ128GA204-I/ML) RoHS: Compliant Min Qty: 180 Package Multiple: 45 Lead time: 5 Weeks, 0 Days Container: Tube 0
  • 1 $5.1700
  • 25 $4.7500
  • 100 $4.2900
$4.2900 / $5.1700 Buy Now
DISTI # 579-24FJ128GA204IML
Mouser Electronics 16-bit Microcontrollers - MCU 128KB Flsh 8KB RAM 16MIPS Crypto RoHS: Compliant 1914
  • 1 $5.1700
  • 10 $5.0700
  • 25 $4.6700
  • 90 $4.2900
$4.2900 / $5.1700 Buy Now
DISTI # VBF:5286_06497411
Arrow Electronics MCU 16-bit PIC RISC 128KB Flash 3.3V 44-Pin QFN EP Tube RoHS: Compliant Min Qty: 45 Package Multiple: 45 Lead time: 5 Weeks Date Code: 2203 Americas - 40
  • 45 $4.5480
$4.5480 Buy Now
DISTI # PIC24FJ128GA204-I/ML
Microchip Technology Inc 16-bit, 16 MIPS, 128KB Flash, 8KB RAM, nanowatt XLP, SEC, QFN, Projected EOL: 2039-05-22 COO: Thailand ECCN: 5A992.c RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube 1352

Alternates Available
  • 1 $5.1700
  • 25 $4.7500
  • 100 $4.2900
  • 1,000 $3.9500
  • 5,000 $3.7500
$3.7500 / $5.1700 Buy Now
DISTI # 70431569
RS 44 QFN 8x8x0.9mm TUBE128KB Flash, 8KB RAM, 16 MIPS, Crypto Min Qty: 180 Package Multiple: 1 Lead time: 46 Weeks, 0 Days Container: Bulk 0
  • 180 $5.2200
  • 900 $4.9600
  • 1,800 $4.7000
  • 3,600 $4.4400
$4.4400 / $5.2200 RFQ
Onlinecomponents.com Secure MCU 16bit PIC24 PIC RISC 128KB Flash 3.3V Automotive 44-Pin QFN EP Tube RoHS: Compliant 720 In Stock
1350 Factory Stock
  • 45 $6.5800
  • 90 $4.9300
  • 135 $4.6100
  • 180 $4.5100
$4.5100 / $6.5800 Buy Now
DISTI # 70389658
Verical MCU 16-bit PIC RISC 128KB Flash 3.3V 44-Pin QFN EP Tube RoHS: Compliant Min Qty: 45 Package Multiple: 45 Date Code: 2333 Americas - 720
  • 45 $8.1841
  • 90 $6.0269
  • 135 $5.5879
  • 180 $5.4667
$5.4667 / $8.1841 Buy Now
DISTI # 24FJ128GA204-I/ML
TME IC: PIC microcontroller, 128kB, I2C x2,I2S x3,SPI x3,UART x4 Min Qty: 1 0
  • 1 $5.0700
  • 10 $4.7900
  • 25 $4.5400
  • 100 $4.1900
$4.1900 / $5.0700 RFQ
DISTI # PIC24FJ128GA204-I/ML
IBS Electronics SECURE MCU 16BIT PIC24 PIC RISC 128KB FLASH 3.3V AUTOMOTIVE 44-PIN QFN EP TUBE Min Qty: 45 Package Multiple: 1 720
  • 45 $8.5540
  • 90 $6.4090
  • 135 $5.9930
  • 180 $5.8630
$5.8630 / $8.5540 Buy Now
NAC 128KB Flash, 8KB RAM, 16 MIPS, Crypto - Package: 44 QFN 8x8x0.9mm TUBE RoHS: Compliant Min Qty: 90 Package Multiple: 45 Container: Tube 0
  • 1 $5.3400
  • 100 $4.8400
  • 500 $4.5400
  • 1,000 $4.4300
$4.4300 / $5.3400 Buy Now
DISTI # PIC24FJ128GA204-I/ML
Avnet Silica (Alt: PIC24FJ128GA204-I/ML) RoHS: Compliant Min Qty: 45 Package Multiple: 45 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC24FJ128GA204-I/ML
EBV Elektronik (Alt: PIC24FJ128GA204-I/ML) RoHS: Compliant Min Qty: 45 Package Multiple: 45 Lead time: 6 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Secure MCU 16bit PIC24 PIC RISC 128KB Flash 3.3V Automotive 44-Pin QFN EP Tube RoHS: Compliant 720 In Stock
1350 Factory Stock
  • 45 $6.5800
  • 90 $4.9300
  • 135 $4.6100
  • 180 $4.5100
$4.5100 / $6.5800 Buy Now

Part Details for PIC24FJ128GA204-I/ML

PIC24FJ128GA204-I/ML CAD Models

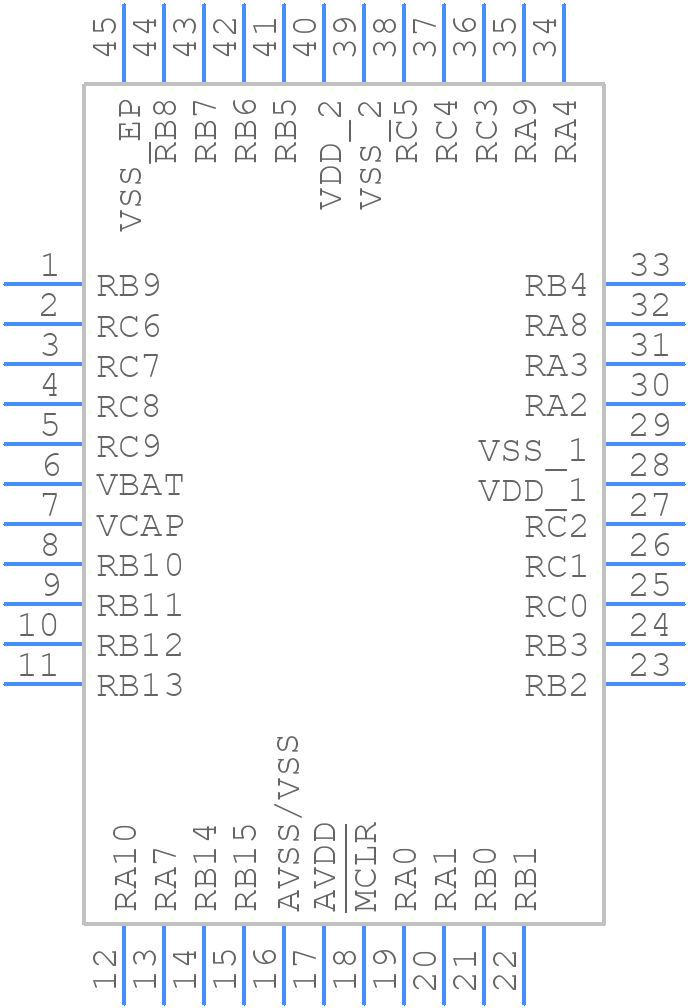

  • Part Symbol

    Part Symbol

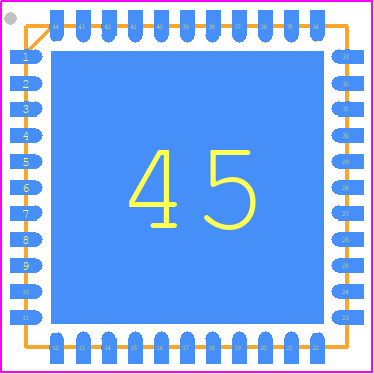

  • Footprint

    footprint

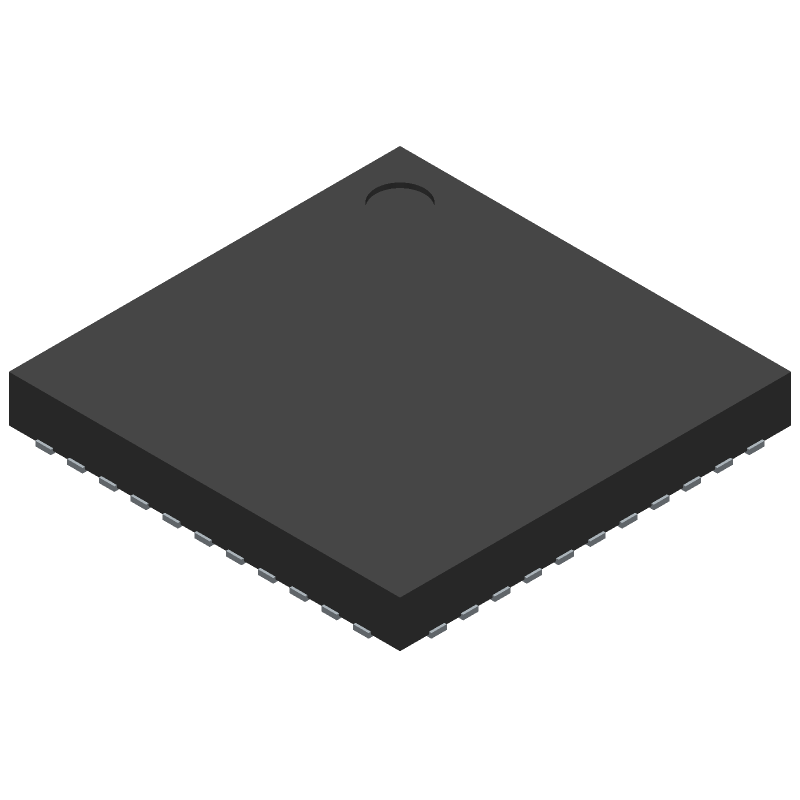

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC24FJ128GA204-I/ML Part Data Attributes

Parametric Data
PIC24FJ128GA204-I/ML Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC24FJ128GA204-I/ML Microchip Technology Inc IC MICROCONTROLLER, Microcontroller
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family PIC24
Clock Frequency-Max 48 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N44
JESD-609 Code e3
Length 8 mm
Low Power Mode YES
Number of DMA Channels 6
Number of External Interrupts 5
Number of I/O Lines 36
Number of Serial I/Os 1
Number of Terminals 44
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC44,.31SQ,25
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 131072
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1 mm
Speed 8 MHz
Supply Current-Max 7.6 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position QUAD
Width 8 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC24FJ128GA204-I/ML

This table gives cross-reference parts and alternative options found for PIC24FJ128GA204-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC24FJ128GA204-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC24FJ128GA204T-I/ML Microchip Technology Inc $5.2950 IC MICROCONTROLLER, Microcontroller PIC24FJ128GA204-I/ML vs PIC24FJ128GA204T-I/ML
PIC24FJ128GA204T-I/PT Microchip Technology Inc Check for Price IC MICROCONTROLLER, Microcontroller PIC24FJ128GA204-I/ML vs PIC24FJ128GA204T-I/PT

PIC24FJ128GA204-I/ML Related Parts

PIC24FJ128GA204-I/ML Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC24FJ128GA204-I/ML is 32 MHz.

  • The PIC24FJ128GA204-I/ML has 128 KB of flash memory.

  • The PIC24FJ128GA204-I/ML can operate at 2.0V to 3.6V, but it is not recommended to operate at 5V.

  • No, the PIC24FJ128GA204-I/ML does not have a built-in USB interface.

  • The PIC24FJ128GA204-I/ML has two UARTs.
