Microcontrollers and Processors / Microcontrollers / PIC24FJ128GA010-I/PT
Datasheets
PIC24FJ128GA010-I/PT by: Microchip Technology Inc

16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-100

Part Details for PIC24FJ128GA010-I/PT by Microchip Technology Inc

Results Overview of PIC24FJ128GA010-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC24FJ128GA010-I/PT Information

PIC24FJ128GA010-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24FJ128GA010-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 92K8163
Newark 16 Bit Microcontroller, General Purpose, Pic24Fj, 32 Mhz, 128 Kb, 8 Kb, 100, Tqfp Rohs Compliant: Yes |Microchip PIC24FJ128GA010-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 989
  • 1 $8.5900
  • 10 $8.3600
  • 25 $8.1200
  • 50 $8.0100
  • 100 $7.9100
$7.9100 / $8.5900 Buy Now
DISTI # PIC24FJ128GA010-I/PT-ND
DigiKey IC MCU 16BIT 128KB FLASH 100TQFP Min Qty: 1 Lead time: 14 Weeks Container: Tray 376
In Stock
  • 1 $5.7200
  • 25 $5.2500
  • 100 $5.0375
$5.0375 / $5.7200 Buy Now
DISTI # PIC24FJ128GA010-I/PT
Avnet Americas - Trays (Alt: PIC24FJ128GA010-I/PT) RoHS: Compliant Min Qty: 238 Package Multiple: 119 Lead time: 14 Weeks, 0 Days Container: Tray 0
  • 238 $5.0375
  • 476 $4.9563
  • 714 $4.8760
  • 1,190 $4.7953
  • 2,380 $4.7151
$4.7151 / $5.0375 Buy Now
DISTI # 579-24FJ128GA010IPT
Mouser Electronics 16-bit Microcontrollers - MCU 128KB 84 I/O RoHS: Compliant 179
  • 1 $5.7200
  • 25 $5.0400
  • 119 $5.0300
$5.0300 / $5.7200 Buy Now
DISTI # PIC24FJ128GA010-I/PT
Microchip Technology Inc 100 Pin, 128 KB Flash, 8 Kb RAM, 84 I/O, TQFP, Projected EOL: 2034-07-31 COO: Taiwan, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 14 Weeks, 0 Days Container: Tray 26

Alternates Available
  • 1 $5.7200
  • 25 $5.2500
  • 100 $4.7600
  • 1,000 $4.3700
  • 5,000 $4.1400
$4.1400 / $5.7200 Buy Now
DISTI # 70045738
RS PIC24FJ128GA010-I/PT,16bit PIC Microcontroller,32MHz,128kb Flash,100-Pin TQFP Min Qty: 238 Package Multiple: 1 Lead time: 31 Weeks, 0 Days Container: Bulk 0
  • 238 $7.5600
  • 1,190 $7.1800
  • 2,380 $6.8000
  • 4,760 $6.4200
$6.4200 / $7.5600 RFQ
Onlinecomponents.com MCU 16-bit PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray RoHS: Compliant 476 In Stock
  • 5 $8.3600
  • 10 $8.2400
  • 25 $8.1100
  • 60 $7.9900
  • 119 $6.0400
  • 179 $5.6300
  • 238 $5.5100
$5.5100 / $8.3600 Buy Now
DISTI # 69825447
Verical MCU 16-bit PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray RoHS: Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2330 Americas - 475
  • 10 $10.7120
  • 10 $10.8680
  • 25 $10.5430
  • 60 $10.3870
  • 120 $7.8520
$7.8520 / $10.8680 Buy Now
DISTI # 24FJ128GA010-I/PT
TME IC: PIC microcontroller, 128kB, 32MHz, 2÷3.6VDC, SMD, TQFP100 Min Qty: 1 0
  • 1 $6.2100
  • 5 $5.9500
  • 25 $5.7400
  • 100 $5.4800
$5.4800 / $6.2100 RFQ
DISTI # PIC24FJ128GA010-I/PT
IBS Electronics MCU 16-BIT PIC24 PIC RISC 128KB FLASH 2.5V/3.3V 100-PIN TQFP TRAY - TRAYS Min Qty: 5 Package Multiple: 1 476
  • 5 $10.8680
  • 10 $10.7120
  • 25 $10.5430
  • 60 $10.3870
  • 119 $7.8520
  • 179 $7.3190
  • 238 $7.1630
$7.1630 / $10.8680 Buy Now
NAC 128KB Flash, 8 Kb RAM, 84 I/O - Package: 100 TQFP 12x12x1mm TRAY RoHS: Compliant Min Qty: 119 Package Multiple: 119 Container: Tray 0
  • 1 $5.9300
  • 100 $5.3700
  • 500 $5.0400
  • 1,000 $4.9100
$4.9100 / $5.9300 Buy Now
DISTI # PIC24FJ128GA010-I/PT
Avnet Silica (Alt: PIC24FJ128GA010-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC24FJ128GA010-I/PT
EBV Elektronik (Alt: PIC24FJ128GA010-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 16-bit PIC RISC 128KB Flash 2.5V/3.3V 100-Pin TQFP Tray RoHS: Compliant 476 In Stock
  • 5 $8.3600
  • 10 $8.2400
  • 25 $8.1100
  • 60 $7.9900
  • 119 $6.0400
  • 179 $5.6300
  • 238 $5.5100
$5.5100 / $8.3600 Buy Now
Vyrian Peripheral ICs 528
RFQ

Part Details for PIC24FJ128GA010-I/PT

PIC24FJ128GA010-I/PT CAD Models

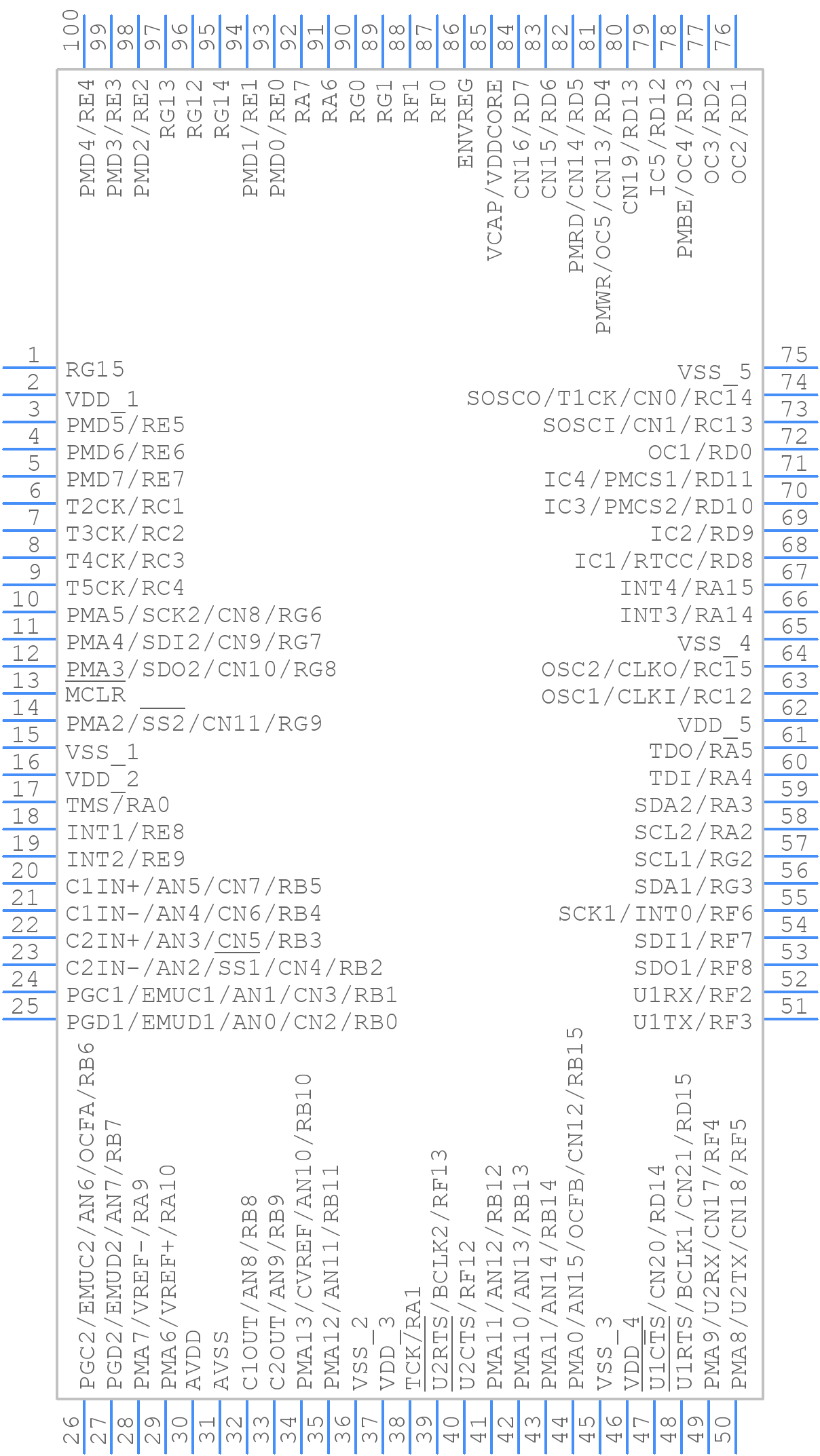

  • Part Symbol

    Part Symbol

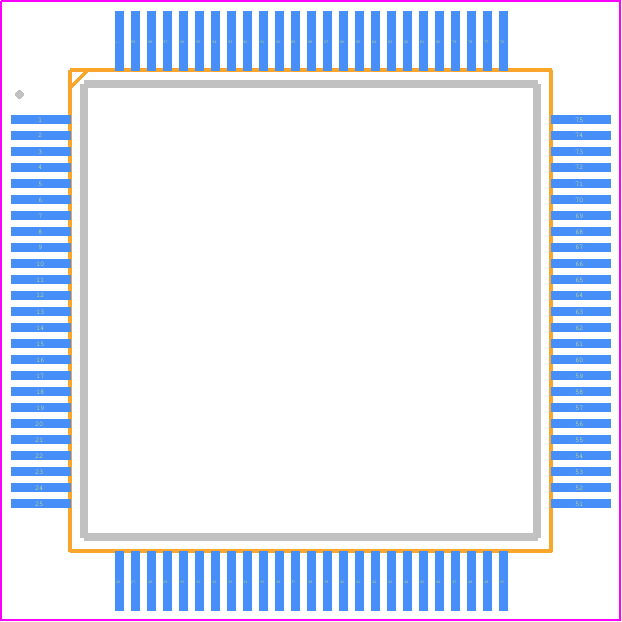

  • Footprint

    footprint

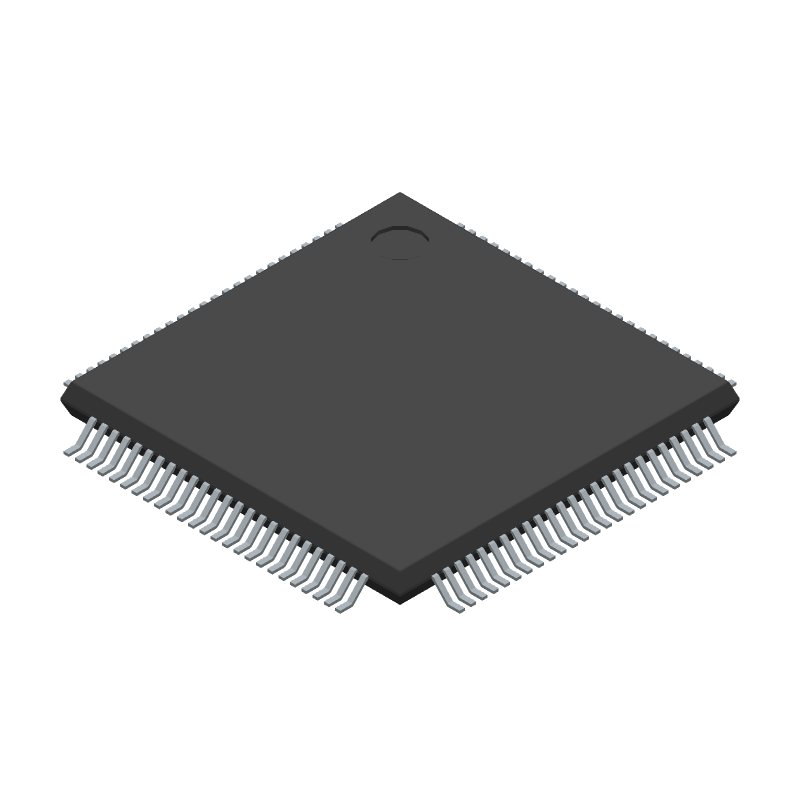

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC24FJ128GA010-I/PT Part Data Attributes

Parametric Data
PIC24FJ128GA010-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC24FJ128GA010-I/PT Microchip Technology Inc 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-100
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code QFP
Package Description 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-100
Pin Count 100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 14 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 16
Boundary Scan YES
CPU Family PIC24
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 12 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of External Interrupts 5
Number of I/O Lines 84
Number of Serial I/Os 2
Number of Terminals 100
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP100,.55SQ,16
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 131072
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.2 mm
Speed 32 MHz
Supply Current-Max 32 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.4 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 12 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC24FJ128GA010-I/PT

This table gives cross-reference parts and alternative options found for PIC24FJ128GA010-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC24FJ128GA010-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MKL17Z256VFT4 NXP Semiconductors $3.9452 RISC MICROCONTROLLER PIC24FJ128GA010-I/PT vs MKL17Z256VFT4
PIC24FJ128DA110-I/PT Microchip Technology Inc $5.7703 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs PIC24FJ128DA110-I/PT
PIC24FJ96GA010-I/PF Microchip Technology Inc $5.9419 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 14 X 14 MM, 1 MM HEIGHT, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs PIC24FJ96GA010-I/PF
MKL17Z256VMP4R NXP Semiconductors $51.6541 RISC MICROCONTROLLER PIC24FJ128GA010-I/PT vs MKL17Z256VMP4R
PIC24FJ192GB110-I/PT Microchip Technology Inc $6.6303 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs PIC24FJ192GB110-I/PT
PIC24FJ192GA110-I/PT Microchip Technology Inc $6.7248 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs PIC24FJ192GA110-I/PT
PIC24FJ128GA010-I/PF Microchip Technology Inc $7.4192 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 14 X 14 MM, 1 MM HEIGHT, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs PIC24FJ128GA010-I/PF
DSPIC33FJ64GS610-I/PT Microchip Technology Inc $7.8146 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs DSPIC33FJ64GS610-I/PT
PIC24FJ128DA210-I/PT Microchip Technology Inc $9.1248 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs PIC24FJ128DA210-I/PT
PIC24FJ192GA110-I/PF Microchip Technology Inc Check for Price 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PQFP100, 14 X 14 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100 PIC24FJ128GA010-I/PT vs PIC24FJ192GA110-I/PF

PIC24FJ128GA010-I/PT Related Parts

PIC24FJ128GA010-I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC24FJ128GA010-I/PT is 32 MHz.

  • The PIC24FJ128GA010-I/PT has 128 KB of flash memory.

  • The PIC24FJ128GA010-I/PT can operate at 2.0V to 3.6V, but it is not recommended to operate at 5V.

  • No, the PIC24FJ128GA010-I/PT does not have a built-in USB interface.

  • The PIC24FJ128GA010-I/PT has 2 UARTs.
