Microcontrollers and Processors / Microcontrollers / PIC18LF24K40-I/SO
Datasheets
PIC18LF24K40-I/SO by: Microchip Technology Inc

RISC MICROCONTROLLER

Part Details for PIC18LF24K40-I/SO by Microchip Technology Inc

Results Overview of PIC18LF24K40-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Automotive

PIC18LF24K40-I/SO Information

PIC18LF24K40-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18LF24K40-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 98Y9322
Newark 16Kb Flash, 1Kb Ram, 256B Eeprom, 10B Adc2, 5B Dac, Comp, Pwm, Ccp, Cwg, Hlt, Wwdt, Scan/Crc, Zcd, Pps, Eusart, Spi/I2C, Idle/Doze/Pmd 28 Soic .300In Tube Rohs Compliant: Yes |Microchip PIC18LF24K40-I/SO RoHS: Compliant Min Qty: 513 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.3500
$1.3500 Buy Now
DISTI # PIC18LF24K40-I/SO
Avnet Americas MCCPIC18LF24K40-I/SO - Rail/Tube (Alt: PIC18LF24K40-I/SO) RoHS: Compliant Min Qty: 459 Package Multiple: 27 Lead time: 5 Weeks, 0 Days Container: Tube 0
  • 1 $1.6000
  • 25 $1.4700
  • 100 $1.3100
$1.3100 / $1.6000 Buy Now
DISTI # 579-PIC18LF24K40I/SO
Mouser Electronics 8-bit Microcontrollers - MCU 16KB Flash, 1KB RAM, 256B EEPROM, 10b ADC2, 5b DAC, Comp, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DOZE/PMD RoHS: Compliant 0
  • 513 $1.3100
$1.3100 Order Now
DISTI # PIC18LF24K40-I/SO
Microchip Technology Inc 16KB, 1KB RAM, 256 EE, 25 I/O, CIPs, 10b AADC, 5b DAC, Comp, 16b PWM, CCP, WWDT, SOIC, Projected EOL: 2044-03-28 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube 540

Alternates Available
  • 1 $1.6000
  • 25 $1.4700
  • 100 $1.3100
  • 1,000 $1.2300
  • 5,000 $1.1600
$1.1600 / $1.6000 Buy Now
Onlinecomponents.com   RoHS: Compliant 540 Factory Stock
  • 129 $2.0300
  • 257 $1.5300
  • 385 $1.4300
  • 513 $1.4000
$1.4000 / $2.0300 Buy Now
DISTI # PIC18LF24K40-I/SO
TME IC: PIC microcontroller, 64MHz, 1.8÷3.6VDC, SMD, SO28-W, PIC18 Min Qty: 1 0
  • 1 $1.6800
  • 5 $1.5900
  • 25 $1.5300
  • 108 $1.4100
$1.4100 / $1.6800 RFQ
NAC 16KB Flash, 1KB RAM, 256B EEPROM, 10b ADC2, 5b DAC, Comp, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DOZE/PMD - Package: 28 SOIC .300in TUBE RoHS: Compliant Min Qty: 243 Package Multiple: 27 Container: Tube 0
  • 1 $1.7200
  • 100 $1.5600
  • 500 $1.4400
  • 1,000 $1.4000
$1.4000 / $1.7200 Buy Now
DISTI # PIC18LF24K40-I/SO
Avnet Silica MCCPIC18LF24K40ISO (Alt: PIC18LF24K40-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics   RoHS: Compliant 540 Factory Stock
  • 129 $2.0300
  • 257 $1.5300
  • 385 $1.4300
  • 513 $1.4000
$1.4000 / $2.0300 Buy Now

Part Details for PIC18LF24K40-I/SO

PIC18LF24K40-I/SO CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

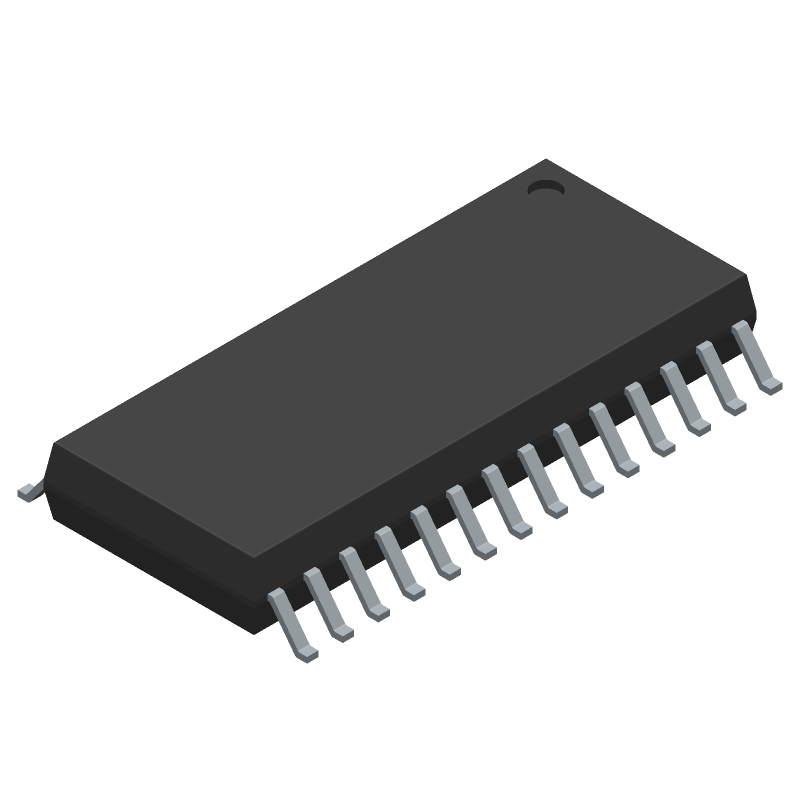

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18LF24K40-I/SO Part Data Attributes

Parametric Data
PIC18LF24K40-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18LF24K40-I/SO Microchip Technology Inc RISC MICROCONTROLLER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description SOIC-28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Date Of Intro 2016-09-15
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES WITH 2.5VMIN @32 MHZ AND 1.8VMIN @16MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Low Power Mode YES
Number of External Interrupts 3
Number of I/O Lines 25
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
RAM (bytes) 1024
ROM (words) 8192
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 2.65 mm
Speed 64 MHz
Supply Current-Max 9.4 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18LF24K40-I/SO

This table gives cross-reference parts and alternative options found for PIC18LF24K40-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18LF24K40-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F24K40-I/SO Microchip Technology Inc $1.5309 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18F24K40-I/SO
PIC18LF24K40-E/SO Microchip Technology Inc $1.5774 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18LF24K40-E/SO
Part Number Manufacturer Composite Price Description Compare
PIC18LF24K40-I/SS Microchip Technology Inc $1.3996 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18LF24K40-I/SS
PIC18F24K40-I/SS Microchip Technology Inc $1.4234 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18F24K40-I/SS
PIC18LF24K40-E/SS Microchip Technology Inc $1.5035 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18LF24K40-E/SS
PIC18F24K40-E/SS Microchip Technology Inc $1.5057 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18F24K40-E/SS
PIC18LF24K40-E/ML Microchip Technology Inc $1.5058 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18LF24K40-E/ML
PIC18LF24K40-E/MV Microchip Technology Inc $1.5277 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18LF24K40-E/MV
PIC18F24K40-E/SO Microchip Technology Inc $1.5806 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18F24K40-E/SO
PIC18F24K40T-I/SO Microchip Technology Inc $1.5929 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18F24K40T-I/SO
PIC18LF24K40T-I/SO Microchip Technology Inc $1.6586 RISC MICROCONTROLLER PIC18LF24K40-I/SO vs PIC18LF24K40T-I/SO
PIC18F24K40-E/P301 Microchip Technology Inc Check for Price RISC Microcontroller PIC18LF24K40-I/SO vs PIC18F24K40-E/P301

PIC18LF24K40-I/SO Related Parts

PIC18LF24K40-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18LF24K40 is 48 MHz.

  • The PIC18LF24K40 has 24 KB of flash memory.

  • No, the PIC18LF24K40 is a low-voltage device and operates at 1.8V to 3.6V. It is not recommended to operate it at 5V.

  • No, the PIC18LF24K40 does not have built-in USB support. However, it can be used with external USB controllers or implemented using bit-banging techniques.

  • The PIC18LF24K40 has two UARTs (EUSART1 and EUSART2).
