PIC18F97J60T-I/PT by: Microchip Technology Inc

16-BIT, FLASH, 41.6667 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, MS-026, TQFP-100

Part Details for PIC18F97J60T-I/PT by Microchip Technology Inc

Results Overview of PIC18F97J60T-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC18F97J60T-I/PT Information

PIC18F97J60T-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F97J60T-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 59M1140
Newark 8 Bit Microcontroller, Flash, Pic18F, 41.667 Mhz, 128 Kb, 3.7 Kb, 100, Tqfp Rohs Compliant: Yes |Microchip PIC18F97J60T-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 31
  • 1 $7.4800
$7.4800 Buy Now
DISTI # 74K8626
Newark Microcontroller Mcu, 8 Bit, Pic18F, 41.667Mhz, Tqfp-100, Product Range:Pic18 Family Pic18Fj6X Series Microcontrollers, Device Core:Pic18, Operating Frequency Max:41.667Mhz, Program Memory Size:128Kb, No. Of Pins:100Pins Rohs Compliant: Yes |Microchip PIC18F97J60T-I/PT RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $6.9600
$6.9600 Buy Now
DISTI # PIC18F97J60T-I/PTCT-ND
DigiKey IC MCU 8BIT 128KB FLASH 100TQFP Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 106
In Stock
  • 1 $7.8900
  • 25 $7.2500
  • 100 $6.9625
  • 1,200 $6.9625
$6.9625 / $7.8900 Buy Now
DISTI # PIC18F97J60T-I/PT
Avnet Americas MCU 8-bit PIC18 PIC RISC 128KB Flash 1.8V/2.5V/3.3V 100-Pin TQFP T/R - Tape and Reel (Alt: PIC18F97J60T-I/PT) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 1,200 $6.8010
  • 2,400 $6.7450
  • 4,800 $6.6891
  • 7,200 $6.6333
  • 9,600 $6.5777
$6.5777 / $6.8010 Buy Now
DISTI # 579-PIC18F97J60TI/PT
Mouser Electronics 8-bit Microcontrollers - MCU 128KB Flash 12KB RAM RoHS: Compliant 1267
  • 1 $7.2400
  • 100 $6.9600
$6.9600 / $7.2400 Buy Now
DISTI # V72:2272_06484622
Arrow Electronics MCU 8-bit PIC RISC 128KB Flash 1.8V/2.5V/3.3V 100-Pin TQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Container: Cut Strips Americas - 2400
  • 0 $7.9038
  • 1 $4.9040
  • 10 $4.8280
  • 25 $4.7520
  • 100 $4.6770
  • 250 $4.6010
  • 500 $4.5250
  • 1,000 $4.4500
$4.4500 / $7.9038 Buy Now
DISTI # PIC18F97J60T-I/PT
Microchip Technology Inc 100 Pin, 128 KB Flash, 10BASE-T Ethernet, TQFP, Projected EOL: 2034-01-30 COO: Taiwan, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 17 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $7.8900
  • 25 $7.2500
  • 100 $6.5400
  • 1,000 $6.0300
  • 5,000 $5.7300
$5.7300 / $7.8900 Buy Now
DISTI # 70451787
RS 128KB Flash, 12KB RAM, 10BASE-T Ethernet100 TQFP 12x12x1mm T/R Min Qty: 1200 Package Multiple: 1 Lead time: 44 Weeks, 0 Days Container: Bulk 0
  • 1,200 $14.2000
  • 6,000 $13.4900
  • 12,000 $12.7800
  • 24,000 $12.0700
$12.0700 / $14.2000 RFQ
Onlinecomponents.com PIC18F Series 128 kB Flash 3808 B RAM SMT 8-Bit Microcontroller - TQFP-100 RoHS: Compliant Alternative Product Available
  • 300 $20.0500
  • 600 $10.5800
  • 900 $7.2800
  • 1,200 $7.1300
$7.1300 / $20.0500 Buy Now
DISTI # 88921349
Verical MCU 8-bit PIC RISC 128KB Flash 1.8V/2.5V/3.3V 100-Pin TQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Americas - 2400
  • 1 $7.9038
$7.9038 Buy Now
NAC 128KB Flash, 12KB RAM, 10BASE-T Ethernet - Package: 100 TQFP 12x12x1mm T/R RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 0
  • 1 $8.1900
  • 100 $7.4300
  • 500 $6.9600
  • 1,000 $6.7900
$6.7900 / $8.1900 Buy Now
DISTI # PIC18F97J60T-I/PT
Avnet Silica MCU 8bit PIC18 PIC RISC 128KB Flash 18V25V33V 100Pin TQFP TR (Alt: PIC18F97J60T-I/PT) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F97J60T-I/PT
EBV Elektronik MCU 8bit PIC18 PIC RISC 128KB Flash 18V25V33V 100Pin TQFP TR (Alt: PIC18F97J60T-I/PT) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics PIC18F Series 128 kB Flash 3808 B RAM SMT 8-Bit Microcontroller - TQFP-100 RoHS: Compliant Alternative Product Available
  • 300 $20.0500
  • 600 $10.5800
  • 900 $7.2800
  • 1,200 $7.1300
$7.1300 / $20.0500 Buy Now
Vyrian Peripheral ICs 750
RFQ

Part Details for PIC18F97J60T-I/PT

PIC18F97J60T-I/PT CAD Models

  • Part Symbol

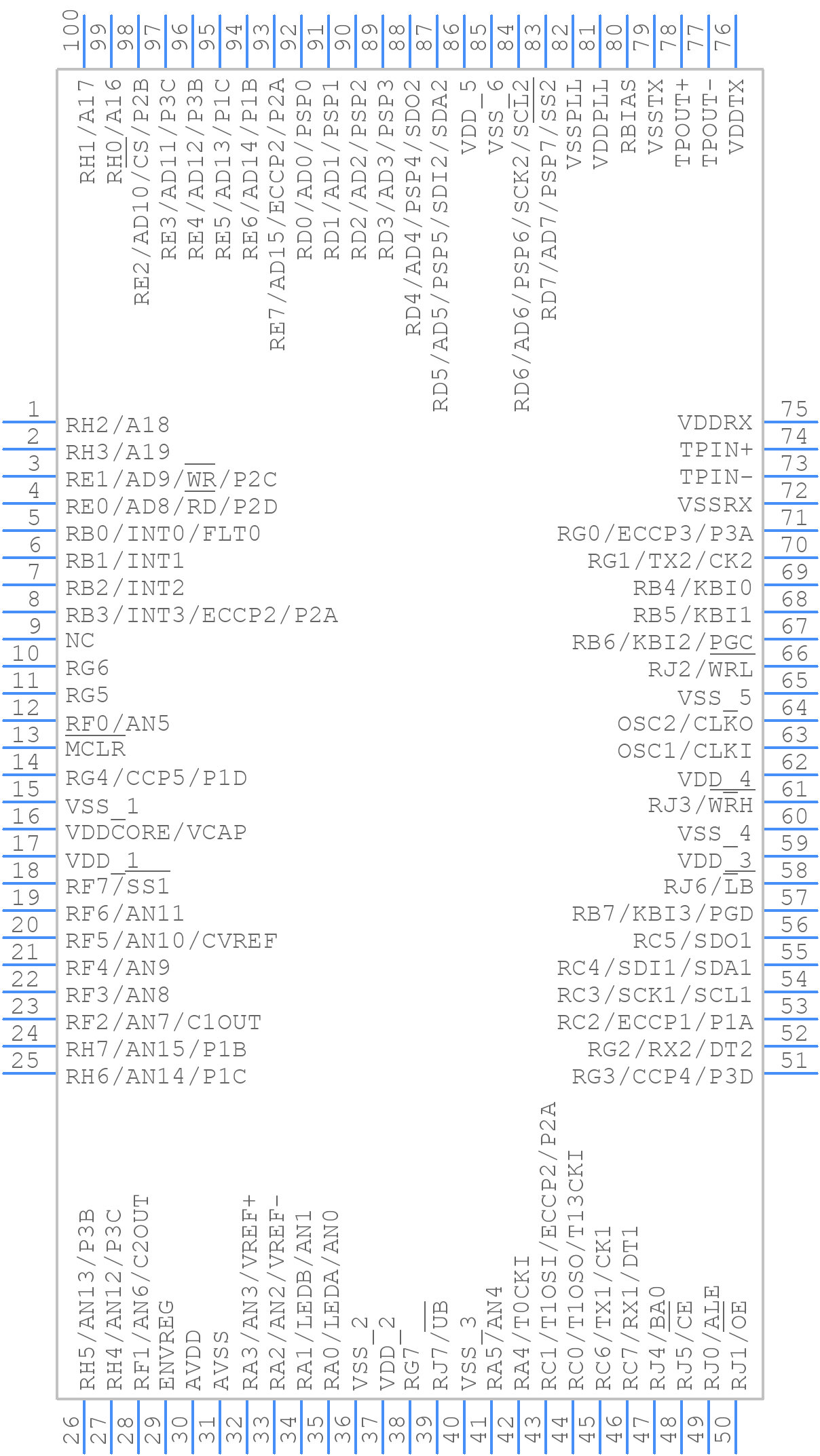

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F97J60T-I/PT Part Data Attributes

Parametric Data
PIC18F97J60T-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F97J60T-I/PT Microchip Technology Inc 16-BIT, FLASH, 41.6667 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, MS-026, TQFP-100
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code QFP
Package Description 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, MS-026, TQFP-100
Pin Count 100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES AT 2V MINIMUM SUPPLY AT 4 MHZ
Address Bus Width 20
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 41.6667 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 16
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 12 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of External Interrupts 4
Number of I/O Lines 70
Number of Serial I/Os 2
Number of Terminals 100
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP100,.55SQ,16
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 3808
ROM (words) 131072
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.2 mm
Speed 41.6667 MHz
Supply Current-Max 21.6 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.7 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.4 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 12 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F97J60T-I/PT

This table gives cross-reference parts and alternative options found for PIC18F97J60T-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F97J60T-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F97J60-I/PT Microchip Technology Inc $6.7061 16-BIT, FLASH, 41.6667 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, MS-026, TQFP-100 PIC18F97J60T-I/PT vs PIC18F97J60-I/PT
