PIC18F45K22-I/P Information
PIC18F45K22-I/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC18F45K22-I/P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63R7845
|
Newark | Microcontroller Mcu, 8 Bit, Pic18, 64Mhz, Dip-40, Product Range:Pic18 Family Pic18Fxxk22 Series Microcontrollers, Device Core:Pic18, Operating Frequency Max:64Mhz, Program Memory Size:32Kb, No. Of Pins:40Pins, Ic Case/Package:Dip Rohs Compliant: Yes |Microchip PIC18F45K22-I/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 90 |
|
$3.1500 / $3.7400 | Buy Now |
|
DISTI #
PIC18F45K22-I/P-ND
|
DigiKey | IC MCU 8BIT 32KB FLASH 40DIP Min Qty: 1 Lead time: 7 Weeks Container: Tube |
1859 In Stock |
|
$3.1500 / $3.7900 | Buy Now |
|
DISTI #
63R7845
|
Avnet Americas | MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V/5V 40-Pin PDIP Tube - Bulk (Alt: 63R7845) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 4 Days Container: Bulk | 90 Partner Stock |
|
$3.4500 / $3.9400 | Buy Now |
|
DISTI #
PIC18F45K22-I/P
|
Avnet Americas | MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V/5V 40-Pin PDIP Tube - Rail/Tube (Alt: PIC18F45K22-I/P) RoHS: Compliant Min Qty: 190 Package Multiple: 10 Lead time: 7 Weeks, 0 Days Container: Tube | 0 |
|
$3.1500 / $3.7900 | Buy Now |
|
DISTI #
579-PIC18F45K22-I/P
|
Mouser Electronics | 8-bit Microcontrollers - MCU 32KB 1536bytes-RAM 8B nanoWatt RoHS: Compliant | 626 |
|
$3.1500 / $3.7900 | Buy Now |
|
DISTI #
PIC18F45K22-I/P
|
Microchip Technology Inc | 40 pin, 32 KB Flash, 1536 bytes-RAM, 36 I/O, PDIP, Projected EOL: 2034-04-28 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube |
0 Alternates Available |
|
$2.7600 / $3.7900 | Buy Now |
|
DISTI #
70048011
|
RS | PDIP-40 .600in TUBE, 32KB, Flash, 1536bytes-RAM,8-Bit nanoWatt XLP Min Qty: 210 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$3.1900 / $3.7500 | RFQ |
|
|
Future Electronics | PIC18F Series 32 KB Flash 1.5 KB RAM 64 MHz 8-Bit Microcontroller - PDIP-40 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Container: Tube | 300Tube |
|
$3.0500 / $3.2900 | Buy Now |
|
|
Onlinecomponents.com | MCU 8-bit - Flash - PIC18 Family PIC18F K2x Series Microcontrollers - 64 MHz - 32KB Flash - 2.5V/3.3V/5V - 40-Pin. RoHS: Compliant |
450 In Stock |
|
$2.8100 / $3.5100 | Buy Now |
|
DISTI #
87727694
|
Verical | MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 40-Pin PDIP Tube RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 2317 | Americas - 532 |
|
$3.1600 / $3.6300 | Buy Now |
Part Details for PIC18F45K22-I/P
PIC18F45K22-I/P CAD Models
PIC18F45K22-I/P Part Data Attributes
|
|

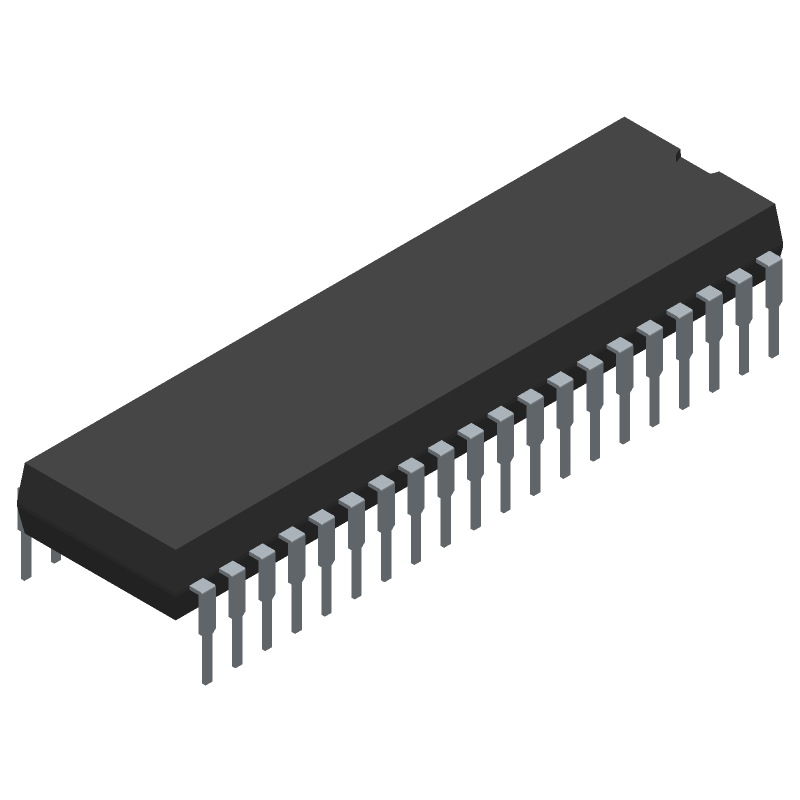

PIC18F45K22-I/P
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC18F45K22-I/P
Microchip Technology Inc
8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PDIP40, 0.600 INCH, LEAD FREE, PLASTIC, DIP-40
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | DIP | |
| Package Description | DIP-40 | |
| Pin Count | 40 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 5 Weeks, 4 Days | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES 2.3 V MINIMUM SUPPLY AT 20 MHZ | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | PIC18 | |
| Clock Frequency-Max | 64 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDIP-T40 | |
| JESD-609 Code | e3 | |
| Length | 51.7525 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 3 | |
| Number of I/O Lines | 36 | |
| Number of Terminals | 40 | |
| Number of Timers | 7 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP40,.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 1536 | |
| RAM (words) | 1536 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 6.35 mm | |
| Speed | 64 MHz | |
| Supply Current-Max | 12 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 15.24 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
