PIC18F27J13-I/SP by: Microchip Technology Inc

8-BIT, FLASH, 48 MHz, MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28

Part Details for PIC18F27J13-I/SP by Microchip Technology Inc

Results Overview of PIC18F27J13-I/SP by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Audio and Video Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

PIC18F27J13-I/SP Information

PIC18F27J13-I/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F27J13-I/SP

Part # Distributor Description Stock Price Buy
DISTI # 63R7835
Newark Microcontroller Mcu, 8 Bit, Pic18, 48Mhz, Dip-28, Product Range:Pic18 Family Pic18F J1X Series Microcontrollers, Device Core:Pic18, Operating Frequency Max:48Mhz, Program Memory Size:128Kb, No. Of Pins:28Pins, Ic Case/Package:Dip Rohs Compliant: Yes |Microchip PIC18F27J13-I/SP RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 105 $4.6600
  • 255 $4.4300
$4.4300 / $4.6600 Buy Now
DISTI # PIC18F27J13-I/SP-ND
DigiKey IC MCU 8BIT 128KB FLASH 28SPDIP Min Qty: 1 Lead time: 18 Weeks Container: Tube 125
In Stock
  • 1 $5.3400
  • 25 $4.8900
  • 100 $4.4300
$4.4300 / $5.3400 Buy Now
DISTI # PIC18F27J13-I/SP
Avnet Americas MCU 8-bit PIC18 PIC RISC 128KB Flash 2.5V/3.3V 28-Pin SPDIP Tube - Rail/Tube (Alt: PIC18F27J13-I/SP) RoHS: Compliant Min Qty: 135 Package Multiple: 15 Lead time: 18 Weeks, 0 Days Container: Tube 0
  • 135 $5.2332
  • 165 $4.5236
  • 300 $4.4484
  • 675 $4.3730
  • 1,350 $4.2978
$4.2978 / $5.2332 Buy Now
DISTI # 579-PIC18F27J13-I/SP
Mouser Electronics 8-bit Microcontrollers - MCU 128KB FLASH 4KBRAM 12 MIPS nanoWatt RoHS: Compliant 5
  • 1 $5.3400
  • 30 $4.8900
  • 105 $4.4300
$4.4300 / $5.3400 Buy Now
DISTI # PIC18F27J13-I/SP
Microchip Technology Inc 28-pin, GP, 128KB Flash, 4KB RAM, 12 MIPS, 12-bit ADC, nanoWatt XLP, SPDIP, Projected EOL: 2034-07-02 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 18 Weeks, 0 Days Container: Tube 208

Alternates Available
  • 1 $5.3400
  • 25 $4.8900
  • 100 $4.4300
  • 1,000 $4.0800
  • 5,000 $3.8900
$3.8900 / $5.3400 Buy Now
DISTI # 70414557
RS MCU, 128KB Flash, 4KB, ADC, XLP, 28SPDIP Min Qty: 150 Package Multiple: 1 Lead time: 48 Weeks, 0 Days Container: Bulk 0
  • 150 $8.7000
  • 750 $8.2600
  • 1,500 $7.8300
  • 3,000 $7.3900
$7.3900 / $8.7000 RFQ
Onlinecomponents.com MCU 8-bit PIC RISC 128KB Flash 2.5V/3.3V Automotive 28-Pin SPDIP Tube RoHS: Compliant 0
  • 38 $6.7300
  • 75 $5.1200
  • 113 $4.7500
  • 150 $4.6600
$4.6600 / $6.7300 Buy Now
DISTI # PIC18F27J13-I/SP
TME IC: PIC microcontroller, 48MHz, 2.15÷3.6VDC, THT, DIP28, PIC18 Min Qty: 1 0
  • 1 $5.6200
  • 5 $5.2500
  • 30 $5.0700
  • 105 $4.7100
$4.7100 / $5.6200 RFQ
NAC 28-pin, GP, 128KB Flash, 4KB RAM, 12 MIPS, 12-bit ADC, nanoWatt XLP - Package: 28 SPDIP .300in TUBE RoHS: Compliant Min Qty: 75 Package Multiple: 15 Container: Tube 0
  • 1 $5.5400
  • 100 $5.0300
  • 500 $4.7100
  • 1,000 $4.6000
$4.6000 / $5.5400 Buy Now
DISTI # PIC18F27J13-I/SP
EBV Elektronik MCU 8bit PIC18 PIC RISC 128KB Flash 25V33V 28Pin SPDIP Tube (Alt: PIC18F27J13-I/SP) RoHS: Compliant Min Qty: 15 Package Multiple: 15 Lead time: 9 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 128KB Flash 2.5V/3.3V Automotive 28-Pin SPDIP Tube RoHS: Compliant 0
  • 38 $6.7300
  • 75 $5.1200
  • 113 $4.7500
  • 150 $4.6600
$4.6600 / $6.7300 Buy Now

Part Details for PIC18F27J13-I/SP

PIC18F27J13-I/SP CAD Models

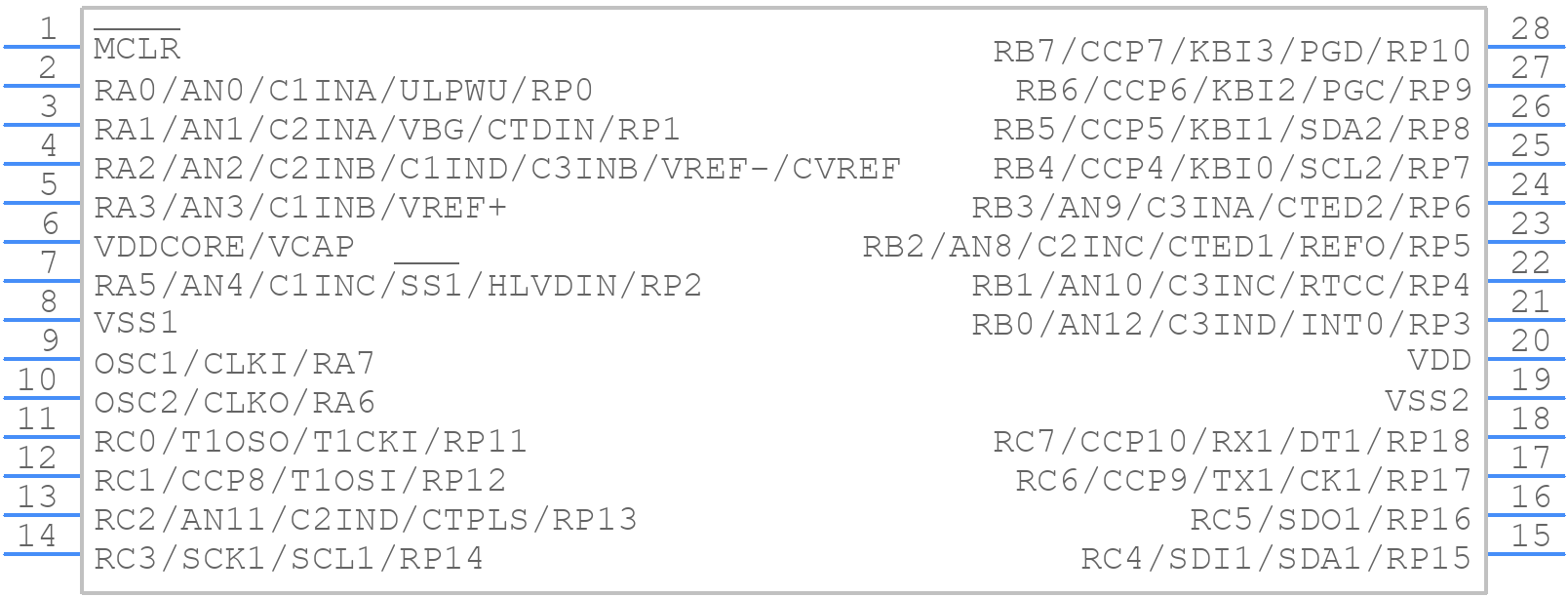

  • Part Symbol

    Part Symbol

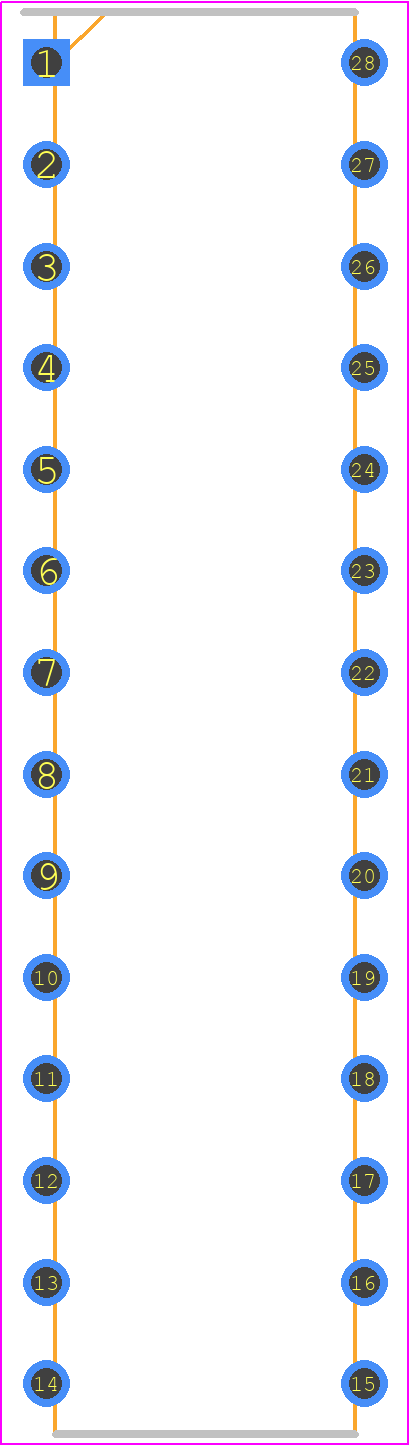

  • Footprint
