Microcontrollers and Processors / Microcontrollers / PIC18F26K40-I/SO
Datasheets
PIC18F26K40-I/SO by: Microchip Technology Inc

RISC MICROCONTROLLER

Part Details for PIC18F26K40-I/SO by Microchip Technology Inc

Results Overview of PIC18F26K40-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC18F26K40-I/SO Information

PIC18F26K40-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F26K40-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 98Y9264
Newark Mcu, 8Bit, 64Mhz, Soic-28, Product Range:Pic18 Family Pic18Fxxk40 Series Microcontrollers, Device Core:Pic18, Operating Frequency Max:64Mhz, Program Memory Size:64Kb, No. Of Pins:28Pins, Ic Case/Package:Soic, No. Of I/O S:25I/O S Rohs Compliant: Yes |Microchip PIC18F26K40-I/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 416
  • 1 $1.8200
  • 10 $1.7700
  • 25 $1.6800
  • 54 $1.5800
$1.5800 / $1.8200 Buy Now
DISTI # 79AH5794
Newark Soic 64Kb Flash, 4Kb Ram, 256B Eeprom, 10-Bit Adc2, 5-Bit Dac, Comp, Pwm, Ccp, Cwg, Hlt, Wwdt, Scan/Crc, Zcd, Pps, Eusart, Spi/I2C, Idle/Doze/Pmd Rohs Compliant: Yes |Microchip PIC18F26K40-I/SO RoHS: Compliant Min Qty: 27 Package Multiple: 1 Date Code: 0 Container: Bulk 14
  • 25 $1.7500
  • 54 $1.7000
  • 108 $1.6200
  • 513 $1.5400
$1.5400 / $1.7500 Buy Now
DISTI # PIC18F26K40-I/SO-ND
DigiKey IC MCU 8BIT 64KB FLASH 28SOIC Min Qty: 1 Lead time: 5 Weeks Container: Tube 2052
In Stock
  • 1 $1.8600
  • 25 $1.7000
  • 100 $1.5400
$1.5400 / $1.8600 Buy Now
DISTI # PIC18F26K40-I/SO
Avnet Americas 8 Bit MCU, XLP, PIC18 Family PIC18FxxK40 Series Microcontrollers, PIC18, 64 MHz, 64 KB, 28 Pins - Rail/Tube (Alt: PIC18F26K40-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 1 Lead time: 5 Weeks, 0 Days Container: Tube 14
  • 27 $1.5873
  • 30 $1.5742
  • 60 $1.5612
  • 140 $1.5482
  • 270 $1.5352
$1.5352 / $1.5873 Buy Now
DISTI # 98Y9264
Avnet Americas 8 Bit MCU, XLP, PIC18 Family PIC18FxxK40 Series Microcontrollers, PIC18, 64 MHz, 64 KB, 28 Pins - Bulk (Alt: 98Y9264) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks, 4 Days Container: Bulk 416 Partner Stock
  • 1 $1.9300
  • 10 $1.8500
  • 25 $1.7700
  • 54 $1.6800
  • 108 $1.6000
$1.6000 / $1.9300 Buy Now
DISTI # 579-PIC18F26K40-I/SO
Mouser Electronics 8-bit Microcontrollers - MCU 64KB Flash, 4KB RAM, 256B EEPROM, 10-bit ADC2, 5-bit DAC, Comp, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DOZE/PMD RoHS: Compliant 5016
  • 1 $1.8600
  • 27 $1.7000
  • 108 $1.5400
$1.5400 / $1.8600 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 64KB Flash 3.3V/5V 28-Pin SOIC W Tube RoHS: Compliant 621 In Stock
459 Factory Stock
  • 27 $2.4300
  • 54 $2.4000
  • 108 $2.3600
  • 216 $1.7700
  • 324 $1.6500
  • 432 $1.6200
$1.6200 / $2.4300 Buy Now
DISTI # 66988170
Verical MCU 8-bit PIC RISC 64KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube RoHS: Compliant Min Qty: 27 Package Multiple: 27 Date Code: 2232 Americas - 621
  • 27 $3.1034
  • 54 $3.0113
  • 108 $2.9100
  • 216 $2.1825
  • 324 $2.0000
$2.0000 / $3.1034 Buy Now
DISTI # 77910228
Verical MCU 8-bit PIC RISC 64KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube RoHS: Compliant Min Qty: 31 Package Multiple: 1 Americas - 179
  • 31 $2.5152
$2.5152 Buy Now
DISTI # PIC18F26K40-I/SO
TME IC: PIC microcontroller, 64kB, 64MHz, I2C x2,LIN,SPI x2,UART x2 Min Qty: 1 189
  • 1 $2.0200
  • 5 $1.9700
  • 28 $1.8100
  • 108 $1.6600
$1.6600 / $2.0200 Buy Now
NAC 64KB Flash, 4KB RAM, 256B EEPROM, 10-bit ADC2, 5-bit DAC, Comp, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DOZE/PMD - Package: 28 SOIC .300in TUBE RoHS: Compliant Min Qty: 216 Package Multiple: 27 Container: Tube 0
  • 1 $2.0000
  • 100 $1.8100
  • 500 $1.6700
  • 1,000 $1.6300
$1.6300 / $2.0000 Buy Now
DISTI # PIC18F26K40-I/SO
Avnet Silica 8 Bit MCU XLP PIC18 Family PIC18FxxK40 Series Microcontrollers PIC18 64 MHz 64 KB 28 Pins (Alt: PIC18F26K40-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 7 Weeks, 0 Days Silica - 54
Buy Now
DISTI # PIC18F26K40-I/SO
EBV Elektronik 8 Bit MCU XLP PIC18 Family PIC18FxxK40 Series Microcontrollers PIC18 64 MHz 64 KB 28 Pins (Alt: PIC18F26K40-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 6 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 64KB Flash 3.3V/5V 28-Pin SOIC W Tube RoHS: Compliant 621 In Stock
459 Factory Stock
  • 27 $2.4300
  • 54 $2.4000
  • 108 $2.3600
  • 216 $1.7700
  • 324 $1.6500
  • 432 $1.6200
$1.6200 / $2.4300 Buy Now

Part Details for PIC18F26K40-I/SO

PIC18F26K40-I/SO CAD Models

  • Part Symbol

    Part Symbol

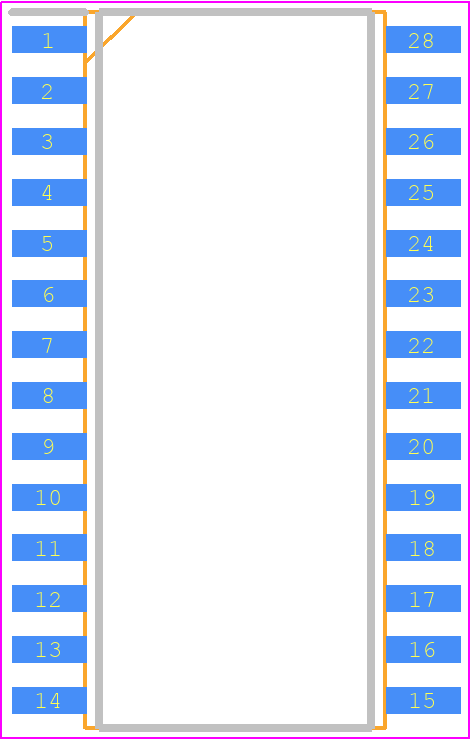

  • Footprint

    footprint

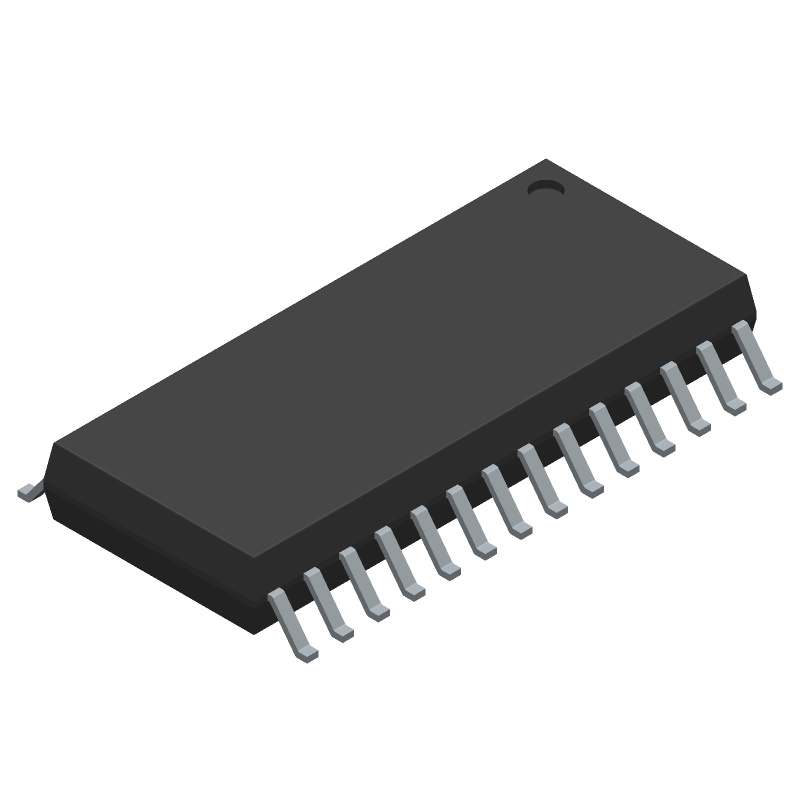

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F26K40-I/SO Part Data Attributes

Parametric Data
PIC18F26K40-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F26K40-I/SO Microchip Technology Inc RISC MICROCONTROLLER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 25 Weeks, 4 Days
Date Of Intro 2016-09-15
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature IT ALSO OPERATES AT 2.5V MIN AT 32 MHZ AND 2.3V MIN AT 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 64 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Low Power Mode YES
Number of External Interrupts 3
Number of I/O Lines 25
Number of Terminals 28
Number of Timers 9
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 3720
RAM (words) 32768
ROM (words) 65536
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 2.65 mm
Speed 64 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F26K40-I/SO

This table gives cross-reference parts and alternative options found for PIC18F26K40-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F26K40-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18LF26K40-E/SO Microchip Technology Inc $1.8373 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18LF26K40-E/SO
PIC18LF26K40T-I/SO Microchip Technology Inc $1.9229 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18LF26K40T-I/SO
Part Number Manufacturer Composite Price Description Compare
PIC18LF26K40-I/ML Microchip Technology Inc $1.6574 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18LF26K40-I/ML
PIC18LF26K40-I/SO Microchip Technology Inc $1.7149 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18LF26K40-I/SO
PIC18F26K40T-I/SO Microchip Technology Inc $1.8458 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18F26K40T-I/SO
PIC18LF26K40T-I/ML Microchip Technology Inc $1.8473 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18LF26K40T-I/ML
PIC18LF26K40-I/SP Microchip Technology Inc $2.1940 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18LF26K40-I/SP
PIC18F26K40-E/SP Microchip Technology Inc $2.3806 RISC MICROCONTROLLER PIC18F26K40-I/SO vs PIC18F26K40-E/SP
PIC18F26K40-E/SSVAO Microchip Technology Inc Check for Price RISC Microcontroller PIC18F26K40-I/SO vs PIC18F26K40-E/SSVAO
PIC18LF26K40-E/SSVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 64MHz, CMOS, PDSO28 PIC18F26K40-I/SO vs PIC18LF26K40-E/SSVAO
PIC18F26K40T-E/SSVAO Microchip Technology Inc Check for Price RISC Microcontroller PIC18F26K40-I/SO vs PIC18F26K40T-E/SSVAO
PIC18F26K40-E/MLVAO Microchip Technology Inc Check for Price RISC Microcontroller PIC18F26K40-I/SO vs PIC18F26K40-E/MLVAO

PIC18F26K40-I/SO Related Parts

PIC18F26K40-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F26K40 is 64 MHz.

  • The PIC18F26K40 has 64 KB of flash memory.

  • Yes, the PIC18F26K40 is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • No, the PIC18F26K40 does not have built-in USB support. However, it can be used with external USB controllers or implemented using bit-banging techniques.

  • The PIC18F26K40 has 12-bit ADC with 13 channels.
