Microcontrollers and Processors / Microcontrollers / PIC18F25K22-E/SO
Datasheets
PIC18F25K22-E/SO by: Microchip Technology Inc

8-BIT, FLASH, 48 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28

Part Details for PIC18F25K22-E/SO by Microchip Technology Inc

Results Overview of PIC18F25K22-E/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC18F25K22-E/SO Information

PIC18F25K22-E/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F25K22-E/SO

Part # Distributor Description Stock Price Buy
DISTI # 07AH6898
Newark Mcu, 8Bit, 64Mhz, Soic-28, Product Range:Pic18 Family Pic18F2Xk22 Series Microcontrollers, Cpu Speed:64Mhz, Program Memory Size:32Kb, Ram Memory Size:1.5Kb, No. Of Pins:28Pins, Mcu Case Style:Soic, No. Of I/O S:25I/O S, Embedded Rohs Compliant: Yes |Microchip PIC18F25K22-E/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 178
  • 1 $3.2400
  • 10 $2.9700
  • 25 $2.8300
  • 54 $2.6900
$2.6900 / $3.2400 Buy Now
DISTI # PIC18F25K22-E/SO-ND
DigiKey IC MCU 8BIT 32KB FLASH 28SOIC Min Qty: 1 Lead time: 5 Weeks Container: Tube 84
In Stock
  • 1 $3.2400
  • 25 $2.9700
  • 100 $2.6900
$2.6900 / $3.2400 Buy Now
DISTI # PIC18F25K22-E/SO
Avnet Americas MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube - Rail/Tube (Alt: PIC18F25K22-E/SO) RoHS: Compliant Min Qty: 243 Package Multiple: 27 Lead time: 5 Weeks, 0 Days Container: Tube 0
  • 1 $3.2400
  • 25 $2.9700
  • 100 $2.6900
$2.6900 / $3.2400 Buy Now
DISTI # 579-PIC18F25K22-E/SO
Mouser Electronics 8-bit Microcontrollers - MCU 32KB Flash 1536B RAM 8B nanoWatt RoHS: Compliant 1090
  • 1 $3.2400
  • 10 $2.9700
  • 27 $2.6900
  • 108 $2.6800
$2.6800 / $3.2400 Buy Now
DISTI # PIC18F25K22-E/SO
Microchip Technology Inc 28 pin, 32 KB Flash, 1536 bytes-RAM, 25 I/O, SOIC, Projected EOL: 2034-04-28 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube 129655
  • 1 $3.2400
  • 25 $2.9700
  • 100 $2.6900
  • 1,000 $2.4900
  • 5,000 $2.3500
$2.3500 / $3.2400 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive 28-Pin SOIC W Tube RoHS: Compliant 151254 Factory Stock
  • 61 $4.1200
  • 122 $3.0900
  • 183 $2.8900
  • 243 $2.8300
$2.8300 / $4.1200 Buy Now
DISTI # 77909288
Verical MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 28-Pin SOIC W Tube RoHS: Compliant Min Qty: 17 Package Multiple: 1 Americas - 229
  • 17 $4.2140
  • 25 $4.1860
$4.1860 / $4.2140 Buy Now
DISTI # 67559618
Verical MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 28-Pin SOIC W Tube RoHS: Compliant Min Qty: 26 Package Multiple: 26 Date Code: 2303 Americas - 26
  • 26 $6.2051
$6.2051 Buy Now
DISTI # PIC18F25K22-E/SO
TME IC: PIC microcontroller, 64MHz, 2.3÷5.5VDC, SMD, SO28-W, PIC18 Min Qty: 1 229
  • 1 $3.5700
  • 5 $3.3400
  • 25 $3.2200
  • 81 $2.9900
$2.9900 / $3.5700 Buy Now
NAC 32KB, Flash, 1536bytes-RAM,8-bit Family - Package: 28 SOIC .300in TUBE RoHS: Compliant Min Qty: 108 Package Multiple: 27 Container: Tube 0
  • 1 $3.3800
  • 100 $3.0700
  • 500 $2.8700
  • 1,000 $2.8000
$2.8000 / $3.3800 Buy Now
DISTI # PIC18F25K22-E/SO
Avnet Silica MCU 8bit PIC18 PIC RISC 32KB Flash 25V33V5V 28Pin SOIC W Tube (Alt: PIC18F25K22-E/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F25K22-E/SO
EBV Elektronik MCU 8bit PIC18 PIC RISC 32KB Flash 25V33V5V 28Pin SOIC W Tube (Alt: PIC18F25K22-E/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 6 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 48MHz SOIC-28-300mil Microcontrollers (MCU/MPU/SOC) ROHS 10
  • 1 $5.5053
  • 10 $5.4057
  • 30 $5.3393
  • 100 $5.2729
$5.2729 / $5.5053 Buy Now
Master Electronics MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive 28-Pin SOIC W Tube RoHS: Compliant 151254 Factory Stock
  • 61 $4.1200
  • 122 $3.0900
  • 183 $2.8900
  • 243 $2.8300
$2.8300 / $4.1200 Buy Now
Vyrian Peripheral ICs 18760
RFQ

Part Details for PIC18F25K22-E/SO

PIC18F25K22-E/SO CAD Models

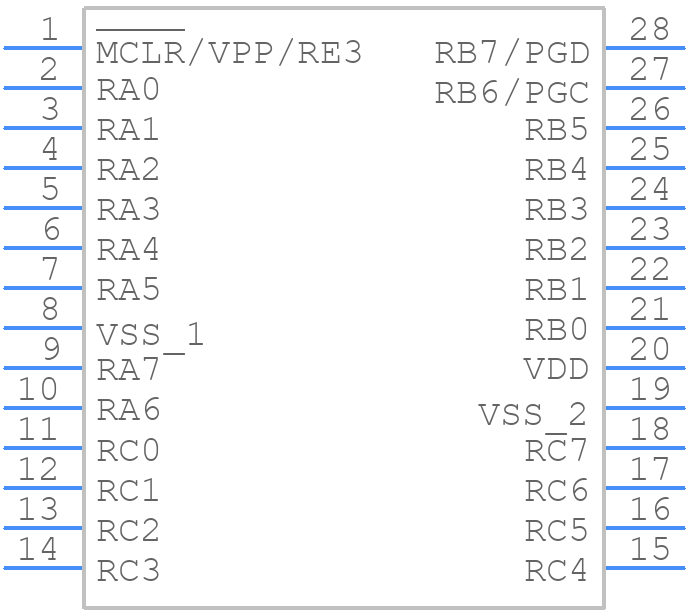

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

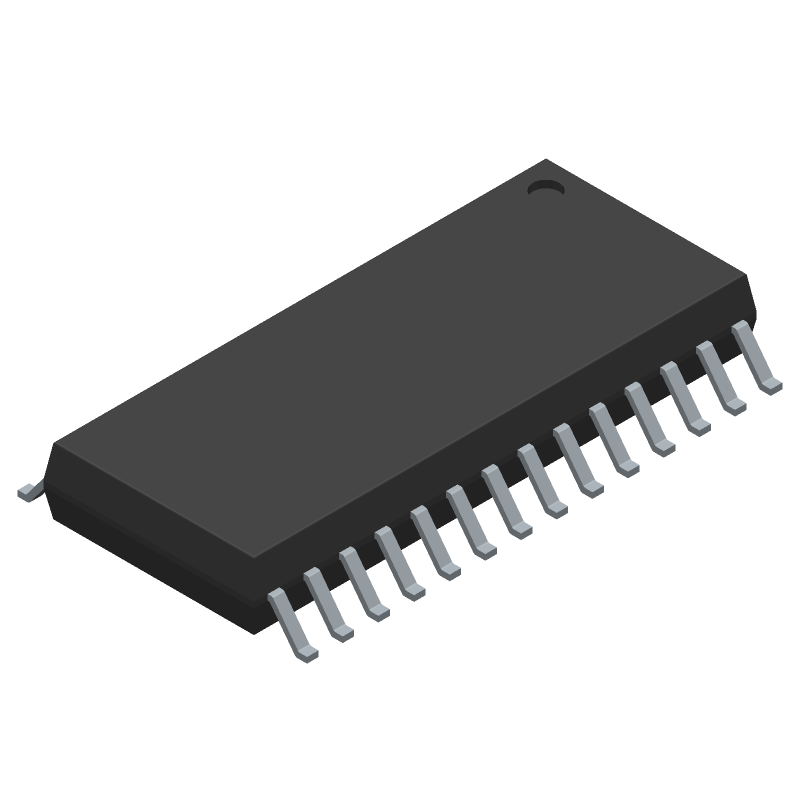

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F25K22-E/SO Part Data Attributes

Parametric Data
PIC18F25K22-E/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F25K22-E/SO Microchip Technology Inc 8-BIT, FLASH, 48 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Pin Count 28
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES 2.3V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 64 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of DMA Channels 3
Number of I/O Lines 25
Number of Terminals 28
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
RAM (bytes) 1536
RAM (words) 1536
ROM (words) 32768
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Speed 48 MHz
Supply Current-Max 12 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.7 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F25K22-E/SO

This table gives cross-reference parts and alternative options found for PIC18F25K22-E/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F25K22-E/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F25K22-I/SO Microchip Technology Inc $2.5670 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC18F25K22-E/SO vs PIC18F25K22-I/SO
PIC18LF25K22-I/SO Microchip Technology Inc $2.7377 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC18F25K22-E/SO vs PIC18LF25K22-I/SO
PIC18LF25K22T-E/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 48 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC18F25K22-E/SO vs PIC18LF25K22T-E/SO
Part Number Manufacturer Composite Price Description Compare
PIC18LF25K22-I/ML Microchip Technology Inc $2.1172 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC18F25K22-E/SO vs PIC18LF25K22-I/ML
PIC18LF25K22-E/SS Microchip Technology Inc $2.9341 8-BIT, FLASH, 48 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC18F25K22-E/SO vs PIC18LF25K22-E/SS
PIC18LF25K22-E/SO Microchip Technology Inc $2.9624 8-BIT, FLASH, 48 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC18F25K22-E/SO vs PIC18LF25K22-E/SO
PIC18LF25K22T-I/SS Microchip Technology Inc $3.0500 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC18F25K22-E/SO vs PIC18LF25K22T-I/SS
PIC18LF25K22T-I/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC18F25K22-E/SO vs PIC18LF25K22T-I/SO
PIC18F25K22T-I/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PQCC40, 5 X 5 MM, LEAD FREE, PLASTIC, UQFN-40 PIC18F25K22-E/SO vs PIC18F25K22T-I/MV
PIC18LF25K22T-E/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 48 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC18F25K22-E/SO vs PIC18LF25K22T-E/ML
PIC18F25K22-E/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PQCC40, 5 X 5 MM, LEAD FREE, PLASTIC, UQFN-40 PIC18F25K22-E/SO vs PIC18F25K22-E/MV
PIC18F25K22T-E/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 48 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC18F25K22-E/SO vs PIC18F25K22T-E/ML
PIC18LF25K22-E/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PQCC40, 5 X 5 MM, LEAD FREE, PLASTIC, UQFN-40 PIC18F25K22-E/SO vs PIC18LF25K22-E/MV

PIC18F25K22-E/SO Related Parts

PIC18F25K22-E/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F25K22-E/SO is 64 MHz.

  • The PIC18F25K22-E/SO has 16 KB of flash memory.

  • Yes, the PIC18F25K22-E/SO is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • No, the PIC18F25K22-E/SO does not have built-in USB support. However, it can be used with external USB controllers or modules.

  • The PIC18F25K22-E/SO has 11 ADC channels.
