Microcontrollers and Processors / Microcontrollers / PIC16LF1936T-I/SO
Datasheets
PIC16LF1936T-I/SO by: Microchip Technology Inc

8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28

Part Details for PIC16LF1936T-I/SO by Microchip Technology Inc

Results Overview of PIC16LF1936T-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16LF1936T-I/SO Information

PIC16LF1936T-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF1936T-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 44AC2762
Newark Mcu, 8Bit, Pic16, 32Mhz, Soic-28, Product Range:Pic16 Family Pic16F19Xx Series Microcontrollers, Cpu Speed:32Mhz, Program Memory Size:14Kb, Ram Memory Size:512Byte, No. Of Pins:28Pins, Mcu Case Style:Soic, No. Of I/O S:25I/O S, Rohs Compliant: Yes |Microchip PIC16LF1936T-I/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 309
  • 1 $2.4400
  • 10 $2.3300
  • 25 $2.2200
  • 50 $2.1300
$2.1300 / $2.4400 Buy Now
DISTI # 45P4795
Newark 14Kb Flash, 512B Ram, 256B Eeprom, Lcd, Nanowatt Xlp 28 Soic .300In T/R Rohs Compliant: Yes |Microchip PIC16LF1936T-I/SO RoHS: Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,600 $2.0900
$2.0900 Buy Now
DISTI # PIC16LF1936T-I/SOCT-ND
DigiKey IC MCU 8BIT 14KB FLASH 28SOIC Min Qty: 1 Lead time: 5 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $2.4400
  • 25 $2.2400
  • 100 $2.0300
  • 1,600 $2.0300
$2.0300 / $2.4400 Buy Now
DISTI # PIC16LF1936T-I/SO
Avnet Americas MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V 28-Pin SOIC W T/R - Tape and Reel (Alt: PIC16LF1936T-I/SO) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 5 Weeks, 0 Days Container: Reel 0
  • 1,600 $2.1123
  • 3,200 $2.0949
  • 6,400 $2.0776
  • 9,600 $2.0603
  • 12,800 $2.0430
$2.0430 / $2.1123 Buy Now
DISTI # 579-IC16LF1936T-I/SO
Mouser Electronics 8-bit Microcontrollers - MCU 14KB Flash 512B RAM 256B EE LCD 1.8-5.5V RoHS: Compliant 1600
  • 1 $2.4400
  • 10 $2.4300
  • 25 $2.2300
  • 100 $2.0300
$2.0300 / $2.4400 Buy Now
DISTI # PIC16LF1936T-I/SO
Microchip Technology Inc 28-pin, 14KB Flash, 512B RAM, 256B EEPROM, LCD, 1.8-3.6V, Low Power, SOIC, Projected EOL: 2034-06-11 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $2.4400
  • 25 $2.2400
  • 100 $2.0300
  • 1,000 $1.8700
  • 5,000 $1.7700
$1.7700 / $2.4400 Buy Now
DISTI # 70454324
RS 14KB Flash, 512B RAM, 256B EEPROM, LCD, nanoWatt XLP28 SOIC .300in T/R Min Qty: 1600 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 1,600 $3.9800
  • 8,000 $3.7800
  • 16,000 $3.5800
  • 32,000 $3.3800
$3.3800 / $3.9800 RFQ
Onlinecomponents.com   RoHS: Compliant 0
  • 400 $4.0600
  • 800 $2.5000
  • 1,200 $1.9800
  • 1,600 $1.9400
$1.9400 / $4.0600 Buy Now
DISTI # PIC16LF1936T-I/SO
IBS Electronics MCU 8-BIT PIC16 PIC RISC 14KB FLASH 2.5V/3.3V 28-PIN SOIC W T/R - TAPE AND REEL Min Qty: 1600 Package Multiple: 1 0
  • 1,600 $2.5090
$2.5090 Buy Now
NAC 14KB Flash, 512B RAM, 256B EEPROM, LCD, nanoWatt XLP - Package: 28 SOIC .300in T/R RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 0
  • 1 $2.6600
  • 100 $2.4000
  • 500 $2.2200
  • 1,000 $2.1600
$2.1600 / $2.6600 Buy Now
NexGen Digital   239879
RFQ
DISTI # PIC16LF1936T-I/SO
Avnet Silica MCU 8bit PIC16 PIC RISC 14KB Flash 25V33V 28Pin SOIC W TR (Alt: PIC16LF1936T-I/SO) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16LF1936T-I/SO
EBV Elektronik MCU 8bit PIC16 PIC RISC 14KB Flash 25V33V 28Pin SOIC W TR (Alt: PIC16LF1936T-I/SO) RoHS: Compliant Min Qty: 1600 Package Multiple: 1600 Lead time: 6 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 400 $4.0600
  • 800 $2.5000
  • 1,200 $1.9800
  • 1,600 $1.9400
$1.9400 / $4.0600 Buy Now

Part Details for PIC16LF1936T-I/SO

PIC16LF1936T-I/SO CAD Models

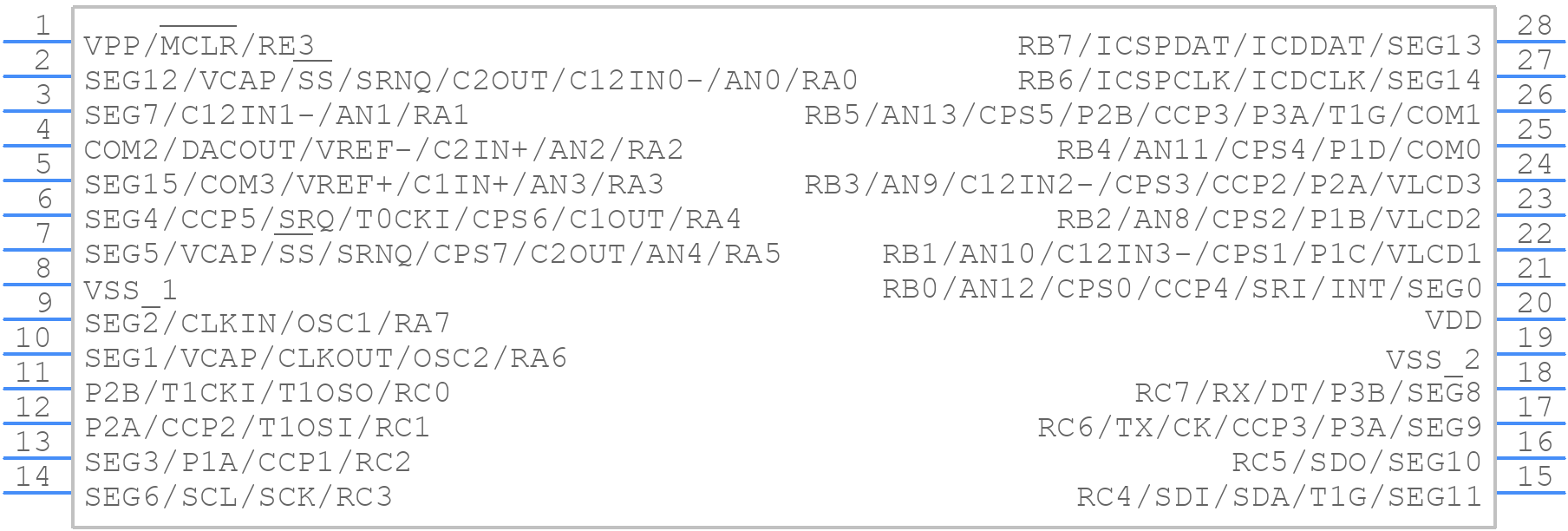

  • Part Symbol

    Part Symbol

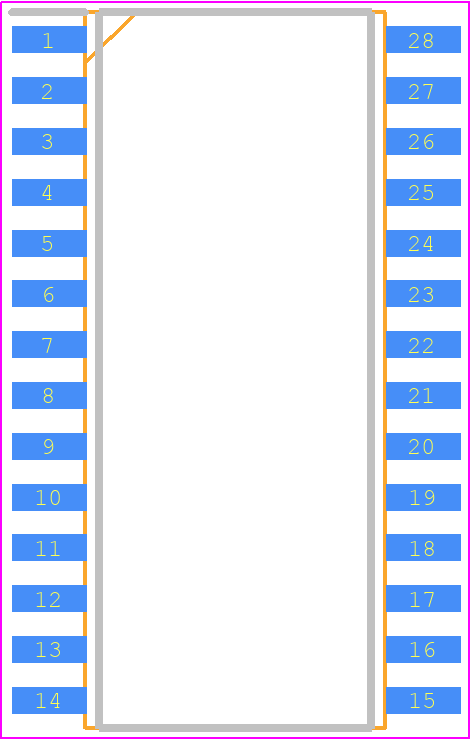

  • Footprint

    footprint

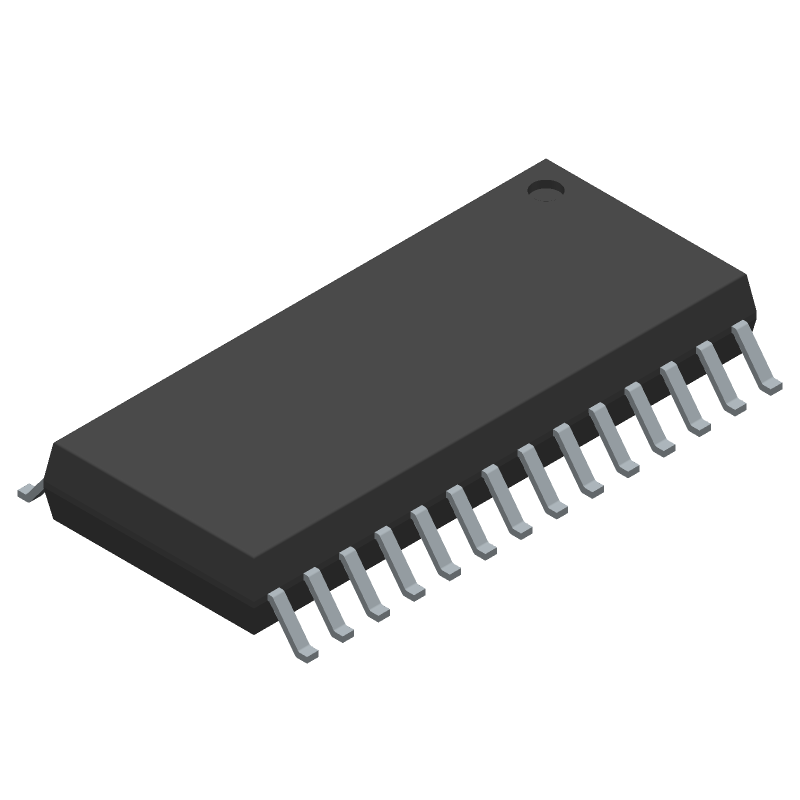

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF1936T-I/SO Part Data Attributes

Parametric Data
PIC16LF1936T-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF1936T-I/SO Microchip Technology Inc 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 7.50 MM, LEAD FREE, PLASTIC, SOIC-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES AT 1.8V MINIMUM SUPPLY FOR 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Moisture Sensitivity Level 1
Number of I/O Lines 25
Number of Terminals 28
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 512
ROM (words) 8192
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Speed 32 MHz
Supply Current-Max 8 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16LF1936T-I/SO

This table gives cross-reference parts and alternative options found for PIC16LF1936T-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF1936T-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF1936-I/SO Microchip Technology Inc $2.1695 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16LF1936T-I/SO vs PIC16LF1936-I/SO
PIC16LF1938T-I/SS Microchip Technology Inc $2.3329 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC16LF1936T-I/SO vs PIC16LF1938T-I/SS
PIC16LF1936T-I/SS Microchip Technology Inc $2.4305 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC16LF1936T-I/SO vs PIC16LF1936T-I/SS
PIC16LF1936-E/SS Microchip Technology Inc $2.6200 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC16LF1936T-I/SO vs PIC16LF1936-E/SS
PIC16LF1936T-I/ML Microchip Technology Inc $2.6550 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, LEAD FREE, PLASTIC, QFN-28 PIC16LF1936T-I/SO vs PIC16LF1936T-I/ML
PIC16LF1936-E/ML Microchip Technology Inc $2.8350 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, LEAD FREE, PLASTIC, QFN-28 PIC16LF1936T-I/SO vs PIC16LF1936-E/ML
PIC16LF1938-E/SS Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC16LF1936T-I/SO vs PIC16LF1938-E/SS
PIC16LF1936-E/SP Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SPDIP-28 PIC16LF1936T-I/SO vs PIC16LF1936-E/SP
PIC16LF1936-E/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, 4 X 4 MM, 0.50 MM HEIGHT, LEAD FREE, PLASTIC, UQFN-28 PIC16LF1936T-I/SO vs PIC16LF1936-E/MV
PIC16LF1936-E/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16LF1936T-I/SO vs PIC16LF1936-E/SO

PIC16LF1936T-I/SO Related Parts

PIC16LF1936T-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16LF1936T-I/SO is 32 MHz.

  • The PIC16LF1936T-I/SO has 14 KB of flash memory.

  • No, the PIC16LF1936T-I/SO is a low-voltage device and operates at a maximum voltage of 3.6V.

  • Yes, the PIC16LF1936T-I/SO has 256 bytes of built-in EEPROM.

  • The PIC16LF1936T-I/SO has 36 I/O pins.
