Microcontrollers and Processors / Microcontrollers / PIC16LF1933T-I/SS
Datasheets
PIC16LF1933T-I/SS by: Microchip Technology Inc

8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28

Part Details for PIC16LF1933T-I/SS by Microchip Technology Inc

Results Overview of PIC16LF1933T-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16LF1933T-I/SS Information

PIC16LF1933T-I/SS by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF1933T-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 08R1972
Newark Mcu, 8Bit, 32Mhz, Ssop-28, Product Range:Pic16 Family Pic16Lf193X Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:7Kb, No. Of Pins:28Pins, Ic Case/Package:Ssop, No. Of I/O S:24I/O S Rohs Compliant: Yes |Microchip PIC16LF1933T-I/SS RoHS: Compliant Min Qty: 2100 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $1.9400
$1.9400 Buy Now
DISTI # PIC16LF1933T-I/SSCT-ND
DigiKey IC MCU 8BIT 7KB FLASH 28SSOP Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1992
In Stock
  • 1 $2.2700
  • 25 $2.0800
  • 100 $1.8800
  • 2,100 $1.8800
$1.8800 / $2.2700 Buy Now
DISTI # PIC16LF1933T-I/SS
Avnet Americas MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V 28-Pin SSOP T/R - Tape and Reel (Alt: PIC16LF1933T-I/SS) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 2,100 $1.9536
  • 4,200 $1.9375
  • 8,400 $1.9215
  • 12,600 $1.9054
  • 16,800 $1.8895
$1.8895 / $1.9536 Buy Now
DISTI # 579-PIC16LF1933T-ISS
Mouser Electronics 8-bit Microcontrollers - MCU 7KB Flash 1.8-5.5V 256B RAM 256B EEPROM RoHS: Compliant 691
  • 1 $2.2700
  • 25 $2.0800
  • 100 $1.8800
$1.8800 / $2.2700 Buy Now
DISTI # PIC16LF1933T-I/SS
Microchip Technology Inc 28-pin, 7KB Flash, 256B RAM, 256B EEPROM, LCD, 1.8-3.6V, Low Power, SSOP, Projected EOL: 2034-10-30 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $2.2700
  • 25 $2.0800
  • 100 $1.8800
  • 1,000 $1.7300
  • 5,000 $1.6400
$1.6400 / $2.2700 Buy Now
DISTI # 70452906
RS 7KB Flash, 256B RAM, 256B EEPROM, LCD, nanoWatt XLP28 SSOP .209in T/R Min Qty: 2100 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 2,100 $3.7000
  • 10,500 $3.5100
  • 21,000 $3.3300
  • 42,000 $3.1400
$3.1400 / $3.7000 RFQ
Onlinecomponents.com MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V 28-Pin SSOP T/R - Tape and Reel RoHS: Compliant Alternative Product Available
  • 525 $4.9300
  • 1,050 $2.6100
  • 1,575 $1.8400
  • 2,100 $1.8000
$1.8000 / $4.9300 Buy Now
DISTI # PIC16LF1933T-I/SS
IBS Electronics MCU 8-BIT PIC16 PIC RISC 7KB FLASH 2.5V/3.3V 28-PIN SSOP T/R - TAPE AND REEL Min Qty: 2100 Package Multiple: 1 0
  • 2,100 $2.4960
$2.4960 Buy Now
NAC 7KB Flash, 256B RAM, 256B EEPROM, LCD, nanoWatt XLP - Package: 28 SSOP .209in T/R RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 0
  • 1 $2.4600
  • 100 $2.2200
  • 500 $2.0500
  • 1,000 $2.0000
$2.0000 / $2.4600 Buy Now
NexGen Digital   8
RFQ
DISTI # PIC16LF1933T-I/SS
Avnet Silica MCU 8bit PIC16 PIC RISC 7KB Flash 25V33V 28Pin SSOP TR (Alt: PIC16LF1933T-I/SS) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16LF1933T-I/SS
EBV Elektronik MCU 8bit PIC16 PIC RISC 7KB Flash 25V33V 28Pin SSOP TR (Alt: PIC16LF1933T-I/SS) RoHS: Compliant Min Qty: 2100 Package Multiple: 2100 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V 28-Pin SSOP T/R - Tape and Reel RoHS: Compliant Alternative Product Available
  • 525 $4.9300
  • 1,050 $2.6100
  • 1,575 $1.8400
  • 2,100 $1.8000
$1.8000 / $4.9300 Buy Now

Part Details for PIC16LF1933T-I/SS

PIC16LF1933T-I/SS CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

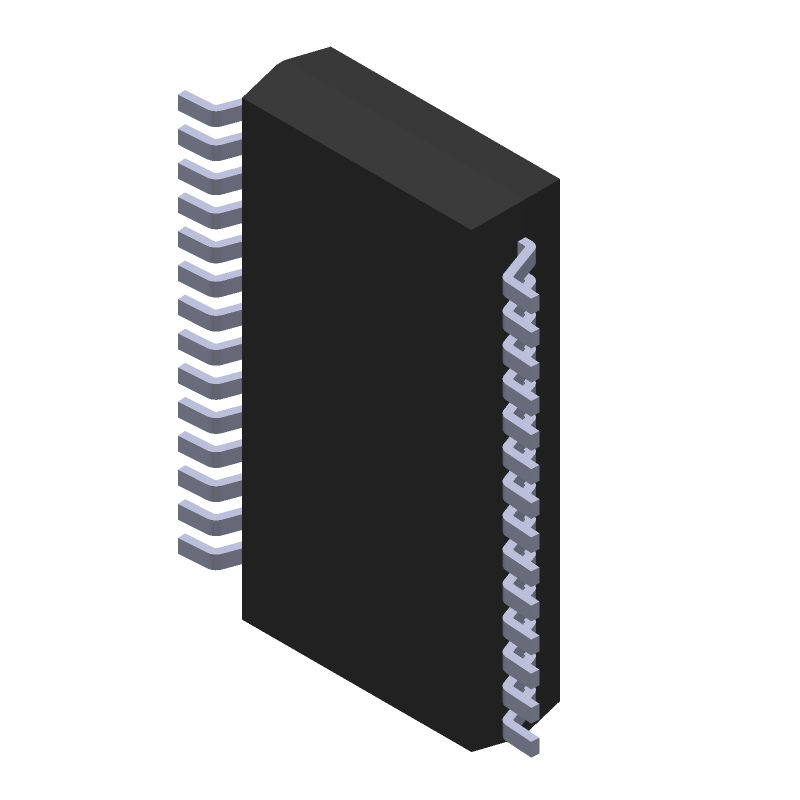

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF1933T-I/SS Part Data Attributes

Parametric Data
PIC16LF1933T-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF1933T-I/SS Microchip Technology Inc 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SSOP
Package Description 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES AT 1.8V MINIMUM SUPPLY FOR 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 25
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 256
ROM (words) 4096
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 2 mm
Speed 32 MHz
Supply Current-Max 5.6 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 5.3 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16LF1933T-I/SS

This table gives cross-reference parts and alternative options found for PIC16LF1933T-I/SS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF1933T-I/SS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF1933-I/SS Microchip Technology Inc $1.9381 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC16LF1933T-I/SS vs PIC16LF1933-I/SS
PIC16LF1933T-I/SO Microchip Technology Inc $2.3700 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16LF1933T-I/SS vs PIC16LF1933T-I/SO
PIC16LF1933-E/SS Microchip Technology Inc $2.4750 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC16LF1933T-I/SS vs PIC16LF1933-E/SS
PIC16LF1933-I/SP Microchip Technology Inc $2.5011 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28 PIC16LF1933T-I/SS vs PIC16LF1933-I/SP
PIC16LF1933-E/ML Microchip Technology Inc $2.6800 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16LF1933T-I/SS vs PIC16LF1933-E/ML
PIC16LF1933-I/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16LF1933T-I/SS vs PIC16LF1933-I/SO
PIC16LF1933-E/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, 4 X 4 MM, 0.50 MM HEIGHT, LEAD FREE, PLASTIC, UQFN-28 PIC16LF1933T-I/SS vs PIC16LF1933-E/MV
PIC16LF1933-E/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16LF1933T-I/SS vs PIC16LF1933-E/SO
PIC16LF1933-I/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16LF1933T-I/SS vs PIC16LF1933-I/ML
PIC16LF1933-E/SP Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28 PIC16LF1933T-I/SS vs PIC16LF1933-E/SP

PIC16LF1933T-I/SS Related Parts

PIC16LF1933T-I/SS Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16LF1933T-I/SS is 32 MHz.

  • The PIC16LF1933T-I/SS has 14 KB of flash memory.

  • No, the PIC16LF1933T-I/SS is a low-voltage device and operates at a maximum voltage of 3.6V.

  • Yes, the PIC16LF1933T-I/SS has 256 bytes of built-in EEPROM.

  • The current consumption of the PIC16LF1933T-I/SS in sleep mode is typically around 20 nA.
