Microcontrollers and Processors / Microcontrollers / PIC16LF15356T-I/MV
Datasheets
PIC16LF15356T-I/MV by: Microchip Technology Inc

28KB 2KB RAM 4XPWMS COMPARATOR D

Part Details for PIC16LF15356T-I/MV by Microchip Technology Inc

Results Overview of PIC16LF15356T-I/MV by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Automotive

PIC16LF15356T-I/MV Information

PIC16LF15356T-I/MV by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF15356T-I/MV

Part # Distributor Description Stock Price Buy
DISTI # 23AC8422
Newark 28Kb, 2Kb Ram, 4Xpwms, Comparator, Dac, Adc, Cwg, 4Xclc, 2 Eusart, Spi/I2C 28 Uqfn 4X4X0.55Mm T/R Rohs Compliant: Yes |Microchip PIC16LF15356T-I/MV RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 3,300 $1.2700
$1.2700 Buy Now
DISTI # PIC16LF15356T-I/MVCT-ND
DigiKey IC MCU 8BIT 28KB FLASH 28UQFN Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 3179
In Stock
  • 1 $1.4800
  • 25 $1.3600
  • 100 $1.2300
  • 3,300 $1.2300
$1.2300 / $1.4800 Buy Now
DISTI # PIC16LF15356T-I/MV
Avnet Americas Full-Featured 8-bit Microcontroller 28 Kbyte Flash 2 Kbyte SRAM 28-Pin UQFN T/R - Tape and Reel (Alt: PIC16LF15356T-I/MV) RoHS: Not Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 3,300 $1.2820
  • 6,600 $1.2715
  • 13,200 $1.2610
  • 19,800 $1.2505
  • 26,400 $1.2400
$1.2400 / $1.2820 Buy Now
DISTI # 579-PIC16LF15356TIMV
Mouser Electronics 8-bit Microcontrollers - MCU 28KB, 2KB RAM, 4xPWMs, Comparator, DAC, ADC, CWG, 4xCLC, 2 EUSART, SPI/I2C RoHS: Compliant 8799
  • 1 $1.2300
  • 3,300 $1.2200
$1.2200 / $1.2300 Buy Now
DISTI # E54:1762_11478973
Arrow Electronics MCU 8-bit PIC RISC 28KB Flash 3.3V 28-Pin UQFN EP T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 4 Weeks Date Code: 2403 Europe - 9900
  • 3,300 $1.2070
$1.2070 Buy Now
DISTI # V72:2272_17503719
Arrow Electronics MCU 8-bit PIC RISC 28KB Flash 3.3V 28-Pin UQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2333 Container: Cut Strips Americas - 3300
  • 0 $1.3505
  • 1 $0.8157
  • 10 $0.8152
  • 25 $0.8147
  • 100 $0.8143
  • 250 $0.8138
  • 500 $0.8133
  • 1,000 $0.8128
  • 3,000 $0.8123
$0.8123 / $1.3505 Buy Now
DISTI # PIC16LF15356T-I/MV
Microchip Technology Inc 28KB, 2KB RAM, 26x I/O, 4xPWMs, Comp, DAC, ADC, CWG, 2xEUSART, 2xSPI/I2C, UQFN, Projected EOL: 2044-01-06 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 46200
  • 1 $1.4800
  • 25 $1.3600
  • 100 $1.2300
  • 1,000 $1.1300
  • 5,000 $1.0800
$1.0800 / $1.4800 Buy Now
Onlinecomponents.com Microcontroller - PIC XLP 16F - 8-Bit - 32MHz - 25 I/O - 28KB (16K x 14) FLASH - 224 x 8 EEPROM - 2K x 8 RAM - 1.8 to 3.6V - 28-UQFN (4x4) - T&R. RoHS: Compliant 46200 Factory Stock
  • 825 $3.2000
  • 1,650 $1.6900
  • 2,475 $1.1900
  • 3,300 $1.1700
$1.1700 / $3.2000 Buy Now
DISTI # 78820556
Verical MCU 8-bit PIC RISC 28KB Flash 3.3V 28-Pin UQFN EP T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Date Code: 2403 Americas - 9900
  • 3,300 $1.2070
$1.2070 Buy Now
NAC 28KB, 2KB RAM, 4xPWMs, Comparator, DAC, ADC, CWG, 4xCLC, 2 EUSART, SPI/I2C - Package: 28 UQFN 4x4x0.55mm T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $1.6200
  • 100 $1.4600
  • 500 $1.3500
  • 1,000 $1.3100
$1.3100 / $1.6200 Buy Now
DISTI # PIC16LF15356T-I/MV
Avnet Silica FullFeatured 8bit Microcontroller 28 Kbyte Flash 2 Kbyte SRAM 28Pin UQFN TR (Alt: PIC16LF15356T-I/MV) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16LF15356T-I/MV
EBV Elektronik FullFeatured 8bit Microcontroller 28 Kbyte Flash 2 Kbyte SRAM 28Pin UQFN TR (Alt: PIC16LF15356T-I/MV) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Greenchips   Date Code: 22+/TH 6553
  • 1 $0.9196
  • 100 $0.9196
  • 1,000 $0.9036
  • 10,000 $0.8640
$0.8640 / $0.9196 Buy Now
Master Electronics Microcontroller - PIC XLP 16F - 8-Bit - 32MHz - 25 I/O - 28KB (16K x 14) FLASH - 224 x 8 EEPROM - 2K x 8 RAM - 1.8 to 3.6V - 28-UQFN (4x4) - T&R. RoHS: Compliant 46200 Factory Stock
  • 825 $3.2000
  • 1,650 $1.6900
  • 2,475 $1.1900
  • 3,300 $1.1700
$1.1700 / $3.2000 Buy Now

Part Details for PIC16LF15356T-I/MV

PIC16LF15356T-I/MV CAD Models

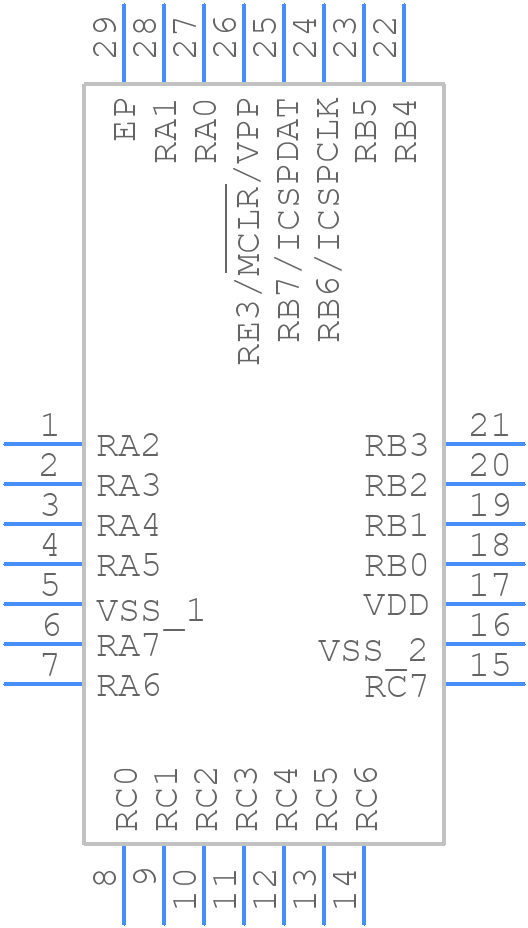

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF15356T-I/MV Part Data Attributes

Parametric Data
PIC16LF15356T-I/MV Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF15356T-I/MV Microchip Technology Inc 28KB 2KB RAM 4XPWMS COMPARATOR D
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature IT ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N28
JESD-609 Code e3
Length 4 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 25
Number of Serial I/Os 2
Number of Terminals 28
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC28,.16SQ,16
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
RAM (bytes) 2048
RAM (words) 2048
ROM (words) 16384
ROM Programmability FLASH
Seated Height-Max 0.55 mm
Speed 32 MHz
Supply Current-Max 3.7 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.4 mm
Terminal Position QUAD
Width 4 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16LF15356T-I/MV

This table gives cross-reference parts and alternative options found for PIC16LF15356T-I/MV. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF15356T-I/MV, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF15356-I/MV Microchip Technology Inc $1.4462 28KB, 2KB RAM, 4XPWMS, COMPARATO PIC16LF15356T-I/MV vs PIC16LF15356-I/MV
PIC16F15356-I/MV Microchip Technology Inc $1.4528 28KB, 2KB RAM, 4XPWMS, COMPARATO PIC16LF15356T-I/MV vs PIC16F15356-I/MV
PIC16LF15356-E/MV Microchip Technology Inc $1.6228 28KB, 2KB RAM, 4XPWMS, COMPARATO PIC16LF15356T-I/MV vs PIC16LF15356-E/MV
PIC16LF15356T-E/MV Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15356T-I/MV vs PIC16LF15356T-E/MV
PIC16F15356T-I/MV Microchip Technology Inc Check for Price 28KB 2KB RAM 4XPWMS COMPARATOR D PIC16LF15356T-I/MV vs PIC16F15356T-I/MV
PIC16LF15356T-E/MVVAO Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15356T-I/MV vs PIC16LF15356T-E/MVVAO
Part Number Manufacturer Composite Price Description Compare
PIC16F18855-I/SS Microchip Technology Inc $1.3811 RISC MICROCONTROLLER PIC16LF15356T-I/MV vs PIC16F18855-I/SS
PIC16LF18856-E/MV Microchip Technology Inc $1.6746 RISC MICROCONTROLLER PIC16LF15356T-I/MV vs PIC16LF18856-E/MV
PIC16F1938-I/SP Microchip Technology Inc $2.8627 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28 PIC16LF15356T-I/MV vs PIC16F1938-I/SP
PIC16LF1938-E/ML Microchip Technology Inc $2.9900 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16LF15356T-I/MV vs PIC16LF1938-E/ML
PIC16LF18855T-E/SP Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15356T-I/MV vs PIC16LF18855T-E/SP
PIC16F1938-I/SSVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PDSO28 PIC16LF15356T-I/MV vs PIC16F1938-I/SSVAO
PIC16F1938T-I/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, 4 X 4 MM, 0.50 MM HEIGHT, LEAD FREE, PLASTIC, UQFN-28 PIC16LF15356T-I/MV vs PIC16F1938T-I/MV
PIC16LF18856T-I/MLVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS PIC16LF15356T-I/MV vs PIC16LF18856T-I/MLVAO
PIC16F1938T-E/SSVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PDSO28 PIC16LF15356T-I/MV vs PIC16F1938T-E/SSVAO
PIC16F1938T-E/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQCC28, 4 X 4 MM, 0.50 MM HEIGHT, LEAD FREE, PLASTIC, UQFN-28 PIC16LF15356T-I/MV vs PIC16F1938T-E/MV

PIC16LF15356T-I/MV Frequently Asked Questions (FAQ)

  • The PIC16LF15356T-I/MV can operate at a maximum clock frequency of 32 MHz.

  • The PIC16LF15356T-I/MV has 28 KB of flash memory.

  • Yes, the PIC16LF15356T-I/MV is designed for low-power applications and has a sleep current as low as 20 nA.

  • Yes, the PIC16LF15356T-I/MV has 12-bit ADCs with up to 24 channels.

  • Yes, the PIC16LF15356T-I/MV is AEC-Q100 qualified, making it suitable for automotive applications.
