Microcontrollers and Processors / Microcontrollers / PIC16F887-E/P
Datasheets
PIC16F887-E/P by: Microchip Technology Inc

8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP40, 0.600 INCH, LEAD FREE, PLASTIC, DIP-40

Part Details for PIC16F887-E/P by Microchip Technology Inc

Results Overview of PIC16F887-E/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

PIC16F887-E/P Information

PIC16F887-E/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F887-E/P

Part # Distributor Description Stock Price Buy
DISTI # 48W3466
Newark 8 Bit Microcontroller, Flash, Pic16F, 20 Mhz, 14 Kb, 368 Byte, 40, Dip Rohs Compliant: Yes |Microchip PIC16F887-E/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 221
  • 1 $3.5500
  • 10 $3.5000
$3.5000 / $3.5500 Buy Now
DISTI # PIC16F887-E/P-ND
DigiKey IC MCU 8BIT 14KB FLASH 40DIP Min Qty: 1 Lead time: 7 Weeks Container: Tube 586
In Stock
  • 1 $3.5500
  • 25 $3.5000
$3.5000 / $3.5500 Buy Now
DISTI # PIC16F887-E/P
Avnet Americas MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V/5V 40-Pin PDIP Tube - Rail/Tube (Alt: PIC16F887-E/P) RoHS: Compliant Min Qty: 180 Package Multiple: 10 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 1 $3.5500
  • 25 $3.4300
  • 100 $3.3600
$3.3600 / $3.5500 Buy Now
DISTI # 579-PIC16F887-E/P
Mouser Electronics 8-bit Microcontrollers - MCU 14KB Flash 368 RAM 36 I/O RoHS: Compliant 1728
  • 1 $3.5500
  • 10 $3.5000
$3.5000 / $3.5500 Buy Now
DISTI # PIC16F887-E/P
Microchip Technology Inc 40 PIN, 14 KB ENH FLASH, 368 RAM, 36 I/O, PB FREE, PDIP, Projected EOL: 2034-10-27 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 1

Alternates Available
  • 1 $3.5500
  • 25 $3.4300
  • 100 $3.3600
  • 1,000 $3.0700
  • 5,000 $2.8800
$2.8800 / $3.5500 Buy Now
DISTI # 70046902
RS 40-Pin, 14KB Flash, 368 RAM, 36 I/O, PDIP Min Qty: 180 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk 0
  • 180 $4.2000
$4.2000 RFQ
Onlinecomponents.com MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V Automotive 40-Pin PDIP Tube RoHS: Compliant 380 In Stock
60 Factory Stock
  • 10 $4.0400
  • 50 $3.7300
  • 100 $3.6000
  • 250 $3.5400
  • 500 $3.3900
  • 1,000 $3.3400
  • 2,500 $3.2900
  • 5,000 $3.2400
$3.2400 / $4.0400 Buy Now
DISTI # 66293028
Verical MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 40-Pin PDIP Tube RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2243 Americas - 380
  • 20 $5.2520
  • 50 $4.8490
  • 100 $4.6800
  • 250 $4.6020
  • 500 $4.4070
$4.4070 / $5.2520 Buy Now
DISTI # PIC16F887-E/P
TME IC: PIC microcontroller, 14kB, 20MHz, A/E/USART,GPIO,ICSP,MSSP Min Qty: 1 0
  • 1 $4.4600
  • 5 $4.3700
  • 10 $4.2500
  • 30 $4.1600
  • 50 $4.0700
  • 100 $3.9800
  • 250 $3.8900
  • 500 $3.7700
$3.7700 / $4.4600 RFQ
NAC 14KB Flash, 368 RAM, 36 I/O - Package: 40 PDIP .600in TUBE RoHS: Compliant Min Qty: 90 Package Multiple: 10 Container: Tube 0
  • 1 $4.1200
  • 100 $3.7300
  • 500 $3.5000
  • 1,000 $3.4100
$3.4100 / $4.1200 Buy Now
DISTI # PIC16F887-E/P
Avnet Silica MCU 8bit PIC16 PIC RISC 14KB Flash 25V33V5V 40Pin PDIP Tube (Alt: PIC16F887-E/P) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F887-E/P
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 150
  • 1 $3.3300
$3.3300 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 3
  • 1 $3.0800
  • 100 $2.3100
  • 1,000 $2.0000
$2.0000 / $3.0800 Buy Now
DISTI # PIC16F887-E/P
EBV Elektronik MCU 8bit PIC16 PIC RISC 14KB Flash 25V33V5V 40Pin PDIP Tube (Alt: PIC16F887-E/P) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 20MHz PDIP-40 Microcontrollers (MCU/MPU/SOC) ROHS 10
  • 1 $8.9420
  • 10 $7.9463
  • 30 $7.3383
  • 100 $6.8284
$6.8284 / $8.9420 Buy Now
Master Electronics MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V Automotive 40-Pin PDIP Tube RoHS: Compliant 380 In Stock
60 Factory Stock
  • 10 $4.0400
  • 50 $3.7300
  • 100 $3.6000
  • 250 $3.5400
  • 500 $3.3900
  • 1,000 $3.3400
  • 2,500 $3.2900
  • 5,000 $3.2400
$3.2400 / $4.0400 Buy Now

Part Details for PIC16F887-E/P

PIC16F887-E/P CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

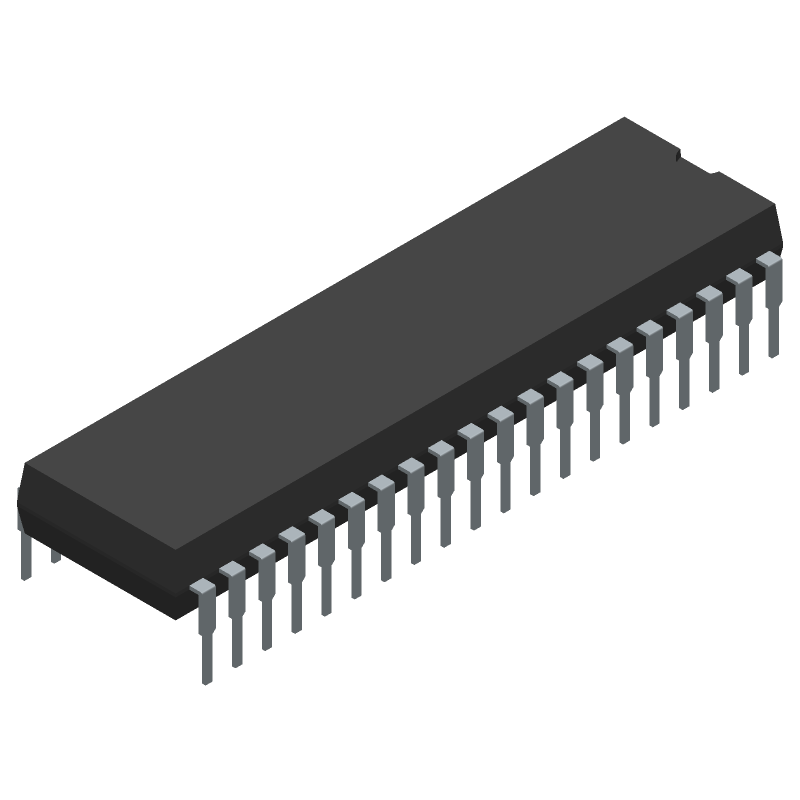

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F887-E/P Part Data Attributes

Parametric Data
PIC16F887-E/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F887-E/P Microchip Technology Inc 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP40, 0.600 INCH, LEAD FREE, PLASTIC, DIP-40
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description 0.600 INCH, LEAD FREE, PLASTIC, DIP-40
Pin Count 40
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 2 V MINIMUM SUPPLY AT 8 MHz
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T40
JESD-609 Code e3
Length 51.753 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 35
Number of Serial I/Os 1
Number of Terminals 40
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
RAM (bytes) 368
ROM (words) 14336
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 6.35 mm
Speed 20 MHz
Supply Current-Max 95 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F887-E/P

This table gives cross-reference parts and alternative options found for PIC16F887-E/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F887-E/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F887T-I/ML Microchip Technology Inc $1.0000 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44 PIC16F887-E/P vs PIC16F887T-I/ML
PIC16F887T-I/PT Microchip Technology Inc $1.0000 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQFP44, 10 X 10 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, QFP-44 PIC16F887-E/P vs PIC16F887T-I/PT
PIC16F887-I/ML Microchip Technology Inc $2.5913 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44 PIC16F887-E/P vs PIC16F887-I/ML
PIC16F887-E/PT Microchip Technology Inc $2.7226 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQFP44, 10 X 10 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, QFP-44 PIC16F887-E/P vs PIC16F887-E/PT
PIC16F887-I/P Microchip Technology Inc $3.1252 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP40, 0.600 INCH, LEAD FREE, PLASTIC, DIP-40 PIC16F887-E/P vs PIC16F887-I/P
PIC16F887-E/ML Microchip Technology Inc $4.0865 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44 PIC16F887-E/P vs PIC16F887-E/ML
PIC16F887-E/PTVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PQFP44 PIC16F887-E/P vs PIC16F887-E/PTVAO
PIC16F887T-E/PTVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PQFP44 PIC16F887-E/P vs PIC16F887T-E/PTVAO
PIC16F887T-E/PT Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQFP44, 10 X 10 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, QFP-44 PIC16F887-E/P vs PIC16F887T-E/PT
PIC16F887-I/PTVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PQFP44 PIC16F887-E/P vs PIC16F887-I/PTVAO

PIC16F887-E/P Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the PIC16F887 is 20 MHz.

  • The oscillator can be configured using the FOSC2:FOSC0 bits in the CONFIG1H register. The oscillator type can be selected using the FOSC3:FOSC2 bits in the CONFIG1L register.

  • The MCLR (Master Clear) pin is an active-low reset input that can be used to reset the microcontroller. It can also be used as a general-purpose input pin if the internal reset is disabled.

  • The internal oscillator can be enabled by setting the INTOSC bit in the OSCCON register. The oscillator frequency can be selected using the IRCF2:IRCF0 bits in the OSCCON register.

  • The maximum current that can be sourced or sunk by the I/O pins of the PIC16F887 is 25 mA.
