Microcontrollers and Processors / Microcontrollers / PIC16F883-I/ML
Datasheets
PIC16F883-I/ML by: Microchip Technology Inc

8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28

Part Details for PIC16F883-I/ML by Microchip Technology Inc

Results Overview of PIC16F883-I/ML by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC16F883-I/ML Information

PIC16F883-I/ML by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F883-I/ML

Part # Distributor Description Stock Price Buy
DISTI # 74K8556
Newark Mcu, 8Bit, Pic16, 20Mhz, Qfn-28, Product Range:Pic16 Family Pic16F88X Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:20Mhz, Program Memory Size:7Kb, No. Of Pins:28Pins, Ic Case/Package:Qfn, No. Of I/O S:25I/O Srohs Compliant: Yes |Microchip PIC16F883-I/ML RoHS: Compliant Min Qty: 244 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 122 $2.7700
$2.7700 Buy Now
DISTI # PIC16F883-I/ML-ND
DigiKey IC MCU 8BIT 7KB FLASH 28QFN Min Qty: 1 Lead time: 6 Weeks Container: Tube 240
In Stock
  • 1 $2.8100
  • 25 $2.7752
$2.7752 / $2.8100 Buy Now
DISTI # PIC16F883-I/ML
Avnet Americas MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin QFN EP Tube - Rail/Tube (Alt: PIC16F883-I/ML) RoHS: Compliant Min Qty: 244 Package Multiple: 61 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 244 $3.0303
  • 366 $2.9637
  • 610 $2.8971
  • 1,220 $2.8305
  • 2,440 $2.7639
$2.7639 / $3.0303 Buy Now
DISTI # 579-PIC16F883-I/ML
Mouser Electronics 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O RoHS: Compliant 2357
  • 1 $2.8100
  • 25 $2.7800
  • 100 $2.7700
$2.7700 / $2.8100 Buy Now
DISTI # V36:1790_06471823
Arrow Electronics MCU 8-bit PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 61 Package Multiple: 61 Lead time: 6 Weeks Date Code: 2251 Americas - 25
  • 61 $2.5920
$2.5920 Buy Now
DISTI # PIC16F883-I/ML
Microchip Technology Inc 28 Pin, 7KB FLASH, 256 RAM, 25 I/O, VQFN, Projected EOL: 2034-12-15 COO: Malaysia, Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 57

Alternates Available
  • 1 $2.8100
  • 25 $2.7500
  • 100 $2.6700
  • 1,000 $2.4200
  • 5,000 $2.2900
$2.2900 / $2.8100 Buy Now
DISTI # 70046962
RS 28-Pin, 7KB Flash, 256 RAM, 25 I/O, QFN Min Qty: 244 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 244 $3.3300
$3.3300 RFQ
Onlinecomponents.com MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 28-Pin QFN EP Tube RoHS: Compliant 0
  • 61 $4.4400
  • 122 $3.3300
  • 183 $3.1100
  • 244 $3.0500
$3.0500 / $4.4400 Buy Now
DISTI # 66682077
Verical MCU 8-bit PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 25 Package Multiple: 25 Date Code: 2251 Americas - 25
  • 25 $2.5920
$2.5920 Buy Now
Quest Components   1
  • 1 $4.0500
$4.0500 Buy Now
DISTI # PIC16F883-I/ML
TME IC: PIC microcontroller, 7kB, 20MHz, A/E/USART,GPIO,ICSP,MSSP Min Qty: 1 0
  • 1 $3.5400
  • 5 $3.4700
  • 10 $3.3700
  • 25 $3.3000
  • 61 $3.2300
  • 122 $3.1600
  • 244 $3.0900
  • 488 $3.0000
$3.0000 / $3.5400 RFQ
NAC 7KB Flash, 256 RAM, 25 I/O - Package: 28 QFN 6x6x0.9mm TUBE RoHS: Compliant Min Qty: 122 Package Multiple: 61 Container: Tube 0
  • 1 $3.2600
  • 100 $2.9600
  • 500 $2.7700
  • 1,000 $2.7100
$2.7100 / $3.2600 Buy Now
DISTI # SMC-PIC16F883-I/ML
Sensible Micro Corporation 8-Bit Cmos Flash Microcontroller 28-Qfn RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Trays 1
  • 100 $2.2523
  • 500 $2.1945
  • 1,000 $2.0790
$2.0790 / $2.2523 RFQ
DISTI # PIC16F883-I/ML
Avnet Silica MCU 8bit PIC16 PIC RISC 7KB Flash 25V33V5V 28Pin QFN EP Tube (Alt: PIC16F883-I/ML) RoHS: Compliant Min Qty: 61 Package Multiple: 61 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F883-I/ML
EBV Elektronik MCU 8bit PIC16 PIC RISC 7KB Flash 25V33V5V 28Pin QFN EP Tube (Alt: PIC16F883-I/ML) RoHS: Compliant Min Qty: 61 Package Multiple: 61 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 28-Pin QFN EP Tube RoHS: Compliant 0
  • 61 $4.4400
  • 122 $3.3300
  • 183 $3.1100
  • 244 $3.0500
$3.0500 / $4.4400 Buy Now
Vyrian Peripheral ICs 901
RFQ

Part Details for PIC16F883-I/ML

PIC16F883-I/ML CAD Models

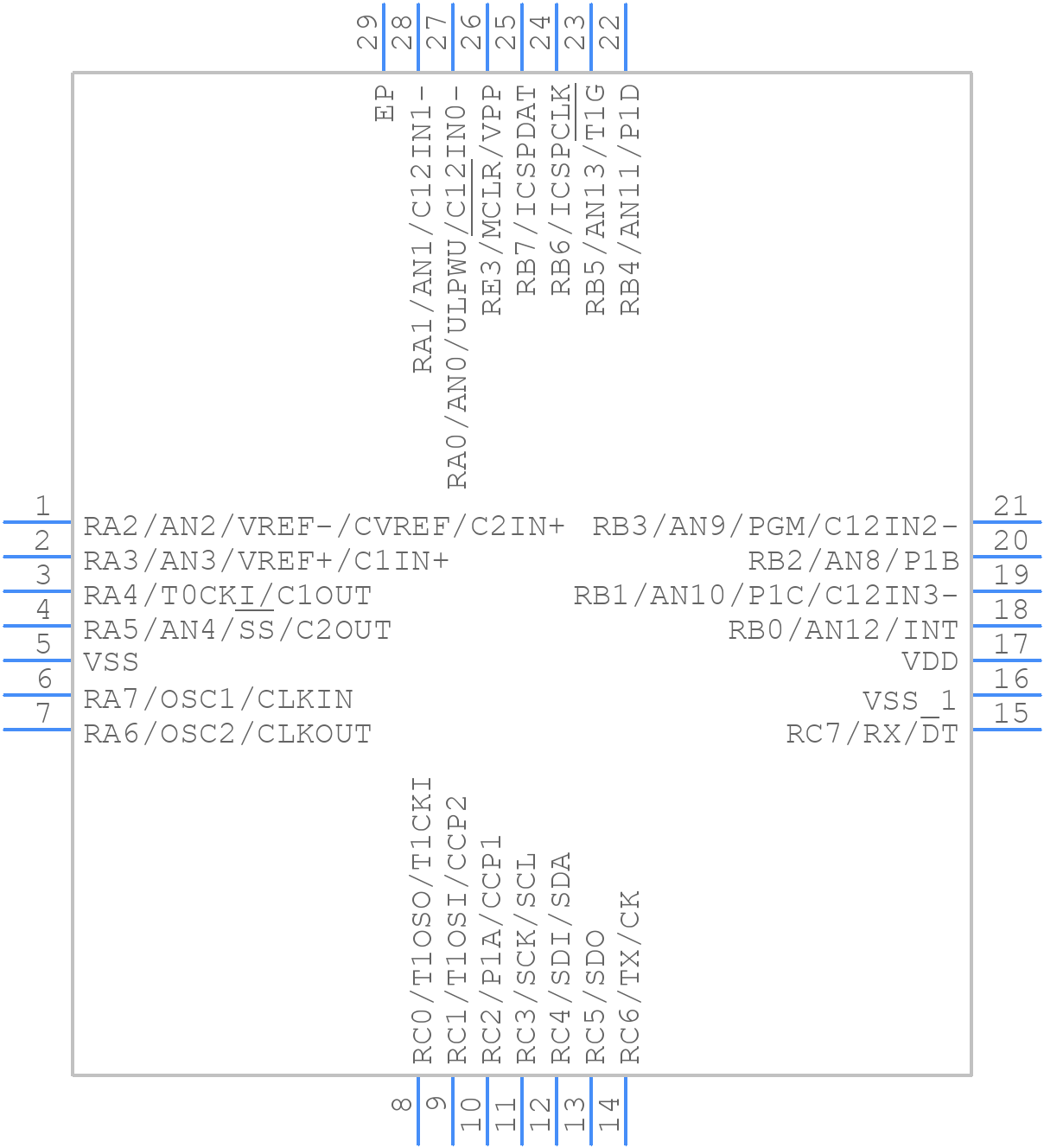

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F883-I/ML Part Data Attributes

Parametric Data
PIC16F883-I/ML Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F883-I/ML Microchip Technology Inc 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code QFN
Package Description 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 2 V MINIMUM SUPPLY AT 8 MHz
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N28
JESD-609 Code e3
Length 6 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 24
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC28,.24SQ,25
Package Shape SQUARE
Package Style CHIP CARRIER, VERY THIN PROFILE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 256
ROM (words) 7168
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1 mm
Speed 20 MHz
Supply Current-Max 95 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position QUAD
Width 6 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F883-I/ML

This table gives cross-reference parts and alternative options found for PIC16F883-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F883-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F883F-I/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16F883-I/ML vs PIC16F883F-I/ML
PIC16F883FT-I/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16F883-I/ML vs PIC16F883FT-I/ML
PIC16F883FT-E/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16F883-I/ML vs PIC16F883FT-E/ML
Part Number Manufacturer Composite Price Description Compare
PIC16F883-E/ML Microchip Technology Inc $3.4121 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16F883-I/ML vs PIC16F883-E/ML
PIC16F883F-E/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16F883-I/ML vs PIC16F883F-E/ML
PIC16F883T-I/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16F883-I/ML vs PIC16F883T-I/ML
PIC16F883T-E/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, LEAD FREE, PLASTIC, QFN-28 PIC16F883-I/ML vs PIC16F883T-E/ML
PIC16F883F-E/P Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, PLASTIC, MO-096, DIP-28 PIC16F883-I/ML vs PIC16F883F-E/P
PIC16F883F-E/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16F883-I/ML vs PIC16F883F-E/SO
PIC16F883F-I/SS Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC16F883-I/ML vs PIC16F883F-I/SS
PIC16F883F-I/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16F883-I/ML vs PIC16F883F-I/SO
PIC16F883-E/P Microchip Technology Inc Check for Price RISC MICROCONTROLLER PIC16F883-I/ML vs PIC16F883-E/P
PIC16F883FT-I/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC16F883-I/ML vs PIC16F883FT-I/SO

PIC16F883-I/ML Related Parts

PIC16F883-I/ML Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the PIC16F883-I/ML is 20 MHz.

  • The PIC16F883-I/ML consumes approximately 100 nA in sleep mode.

  • Yes, the PIC16F883-I/ML can operate with a power supply voltage range of 2.0V to 5.5V.

  • The PIC16F883-I/ML has 28 I/O pins.

  • Yes, the PIC16F883-I/ML has 256 bytes of built-in EEPROM.
