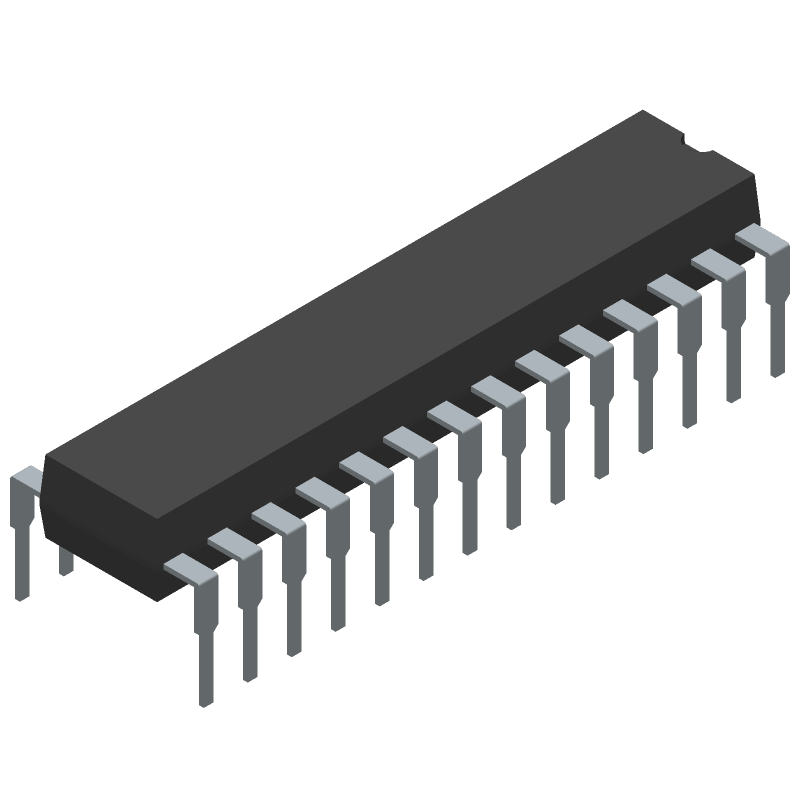

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PIC16F882-E/SP by Microchip Technology Inc
Results Overview of PIC16F882-E/SP by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Computing and Data Storage
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Electronic Manufacturing
Communication and Networking
Robotics and Drones
PIC16F882-E/SP Information
PIC16F882-E/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC16F882-E/SP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27M0492
|
Newark | 3.5Kb Enh Flash, 128 Ram, 25 I/O 28 Spdip .300In Tube Rohs Compliant: Yes |Microchip PIC16F882-E/SP RoHS: Compliant Min Qty: 270 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.4100 | Buy Now |
|
DISTI #
PIC16F882-E/SP-ND
|
DigiKey | IC MCU 8BIT 3.5KB FLASH 28SPDIP Min Qty: 1 Lead time: 8 Weeks Container: Tube |
56 In Stock |
|
$2.3400 / $2.7500 | Buy Now |
|
DISTI #
PIC16F882-E/SP
|
Avnet Americas | MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V 28-Pin SPDIP Tube - Rail/Tube (Alt: PIC16F882-E/SP) RoHS: Compliant Min Qty: 225 Package Multiple: 15 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$2.4778 / $2.7500 | Buy Now |
|
DISTI #
579-PIC16F882-E/SP
|
Mouser Electronics | 8-bit Microcontrollers - MCU 3.5KB Enh FLSH 128 RAM RoHS: Compliant | 1716 |
|
$2.3400 / $2.7500 | Buy Now |
|
DISTI #
70573283
|
RS | 3.5KB Enh Flash, 128 RAM, 25 I/O Min Qty: 270 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$4.0500 / $4.7700 | RFQ |
|
|
Onlinecomponents.com | Microcontroller - PIC 16F - 8-Bit - 20MHz - 24 I/O - 3.5KB (2K x 14) FLASH - 128 x 8 EEPROM - 128 x 8 RAM - 2 to 5.5V - 28-SPDIP. RoHS: Compliant | 2640 Factory Stock |
|
$2.5600 / $3.7100 | Buy Now |
|
|
Bristol Electronics | 105 |
|
RFQ | ||
|
|
Quest Components | 84 |
|
$3.0340 / $4.9200 | Buy Now | |
|
DISTI #
PIC16F882-E/SP
|
TME | IC: PIC microcontroller, 3.5kB, 20MHz, A/E/USART,GPIO,ICSP,MSSP Min Qty: 1 | 0 |
|
$2.5300 / $2.9900 | RFQ |
|
|
NAC | 3.5KB Enh Flash, 128 RAM, 25 I/O - Package: 28 SPDIP .300in TUBE RoHS: Compliant Min Qty: 120 Package Multiple: 15 Container: Tube | 0 |
|
$2.7200 / $3.2800 | Buy Now |
Part Details for PIC16F882-E/SP
PIC16F882-E/SP CAD Models
PIC16F882-E/SP Part Data Attributes
|
|
PIC16F882-E/SP
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC16F882-E/SP
Microchip Technology Inc
8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | DIP | |
| Package Description | 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 2 V MINIMUM SUPPLY AT 8 MHz | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | PIC16 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDIP-T28 | |
| JESD-609 Code | e3 | |
| Length | 34.671 mm | |
| Low Power Mode | YES | |
| Number of External Interrupts | 1 | |
| Number of I/O Lines | 24 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 28 | |
| Number of Timers | 5 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP28,.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 128 | |
| ROM (words) | 3584 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 5.08 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 95 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 15.24 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for PIC16F882-E/SP
This table gives cross-reference parts and alternative options found for PIC16F882-E/SP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F882-E/SP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PIC16F882-I/SP | Microchip Technology Inc | $2.4145 | 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28 | PIC16F882-E/SP vs PIC16F882-I/SP |
PIC16F882-E/SP Frequently Asked Questions (FAQ)
-
The PIC16F882-E/SP can operate at a maximum clock frequency of 20 MHz, but it's recommended to use a clock frequency of 16 MHz or less for optimal performance and to ensure that the device operates within its specifications.
-
The oscillator mode on the PIC16F882-E/SP can be configured using the FOSC2:FOSC0 bits in the CONFIG1H register. The device can be configured to use an internal oscillator, an external crystal oscillator, or an external RC oscillator.
-
The PIC16F882-E/SP can source or sink up to 25 mA of current on its I/O pins, but it's recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
-
The ADC on the PIC16F882-E/SP can be used by configuring the ADCON0 and ADCON1 registers. The ADC can be configured to use an internal voltage reference or an external voltage reference, and it can be triggered by a software command or an external event.
-
The BOR feature on the PIC16F882-E/SP is used to reset the device when the supply voltage falls below a certain threshold. This feature helps to prevent the device from operating erratically or unpredictably when the supply voltage is low.
