Microcontrollers and Processors / Microcontrollers / PIC16F722-I/SO
Datasheets
PIC16F722-I/SO by: Microchip Technology Inc

8-BIT, FLASH, 20 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, ROHS COMPLIANT, PLASTIC, SOIC-28

Part Details for PIC16F722-I/SO by Microchip Technology Inc

Results Overview of PIC16F722-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16F722-I/SO Information

PIC16F722-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F722-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 54M4994
Newark Microcontroller Mcu, 8 Bit, Pic16, 20Mhz, Soic-28, Product Range:Pic16 Family Pic16F7Xx Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:20Mhz, Program Memory Size:3.5Kb, No. Of Pins:28Pins, Ic Case/Package:Soic Rohs Compliant: Yes |Microchip PIC16F722-I/SO RoHS: Compliant Min Qty: 459 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 108 $1.4600
$1.4600 Buy Now
DISTI # PIC16F722-I/SO-ND
DigiKey IC MCU 8BIT 3.5KB FLASH 28SOIC Min Qty: 1 Lead time: 11 Weeks Container: Tube 230
In Stock
  • 1 $1.7500
  • 25 $1.6100
  • 100 $1.4600
$1.4600 / $1.7500 Buy Now
DISTI # PIC16F722-I/SO
Avnet Americas MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube - Rail/Tube (Alt: PIC16F722-I/SO) RoHS: Compliant Min Qty: 405 Package Multiple: 27 Lead time: 11 Weeks, 0 Days Container: Tube 0
  • 1 $1.7500
  • 25 $1.6100
  • 100 $1.4600
$1.4600 / $1.7500 Buy Now
DISTI # 579-PIC16F722-I/SO
Mouser Electronics 8-bit Microcontrollers - MCU 35 KB Flash 18V-55V 16 MHz Int Osc RoHS: Compliant 387
  • 1 $1.7500
  • 27 $1.6100
  • 108 $1.4600
$1.4600 / $1.7500 Buy Now
DISTI # PIC16F722-I/SO
Microchip Technology Inc 28 PIN, 3.5KB FLASH, 1.8V-5.5V, 16MHZ INT OSC, 8B ADC, CCP, I2C/SPI, AUSART, SOIC, Projected EOL: 2034-08-28 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 11 Weeks, 0 Days Container: Tube 3360

Alternates Available
  • 1 $1.7500
  • 25 $1.6100
  • 100 $1.4600
  • 1,000 $1.3400
  • 5,000 $1.2700
$1.2700 / $1.7500 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 3.5KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube RoHS: Compliant 3348 Factory Stock
  • 115 $2.2200
  • 230 $1.6600
  • 345 $1.5500
  • 459 $1.5200
$1.5200 / $2.2200 Buy Now
Bristol Electronics   26
RFQ
Quest Components   20
  • 1 $4.8600
  • 3 $4.0500
  • 7 $3.5640
$3.5640 / $4.8600 Buy Now
DISTI # PIC16F722-I/SO
TME IC: PIC microcontroller, 3.5kB, 20MHz, A/E/USART,GPIO,ICSP,SSP Min Qty: 1 0
  • 1 $1.7700
  • 5 $1.7300
  • 10 $1.6900
  • 27 $1.6500
  • 54 $1.6200
  • 108 $1.5800
  • 243 $1.5500
  • 486 $1.5000
$1.5000 / $1.7700 RFQ
NAC 3.5 KB Flash, 1.8V-5.5V, 16 MHz Int. Osc - Package: 28 SOIC .300in TUBE RoHS: Compliant Min Qty: 216 Package Multiple: 27 Container: Tube 0
  • 1 $1.9100
  • 100 $1.7200
  • 500 $1.5900
  • 1,000 $1.5500
$1.5500 / $1.9100 Buy Now
DISTI # PIC16F722-I/SO
Avnet Silica MCU 8bit PIC16 PIC RISC 35KB Flash 25V33V5V 28Pin SOIC W Tube (Alt: PIC16F722-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F722-I/SO
EBV Elektronik MCU 8bit PIC16 PIC RISC 35KB Flash 25V33V5V 28Pin SOIC W Tube (Alt: PIC16F722-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 12 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 3.5KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube RoHS: Compliant 3348 Factory Stock
  • 115 $2.2200
  • 230 $1.6600
  • 345 $1.5500
  • 459 $1.5200
$1.5200 / $2.2200 Buy Now
Vyrian Peripheral ICs 807
RFQ

Part Details for PIC16F722-I/SO

PIC16F722-I/SO CAD Models

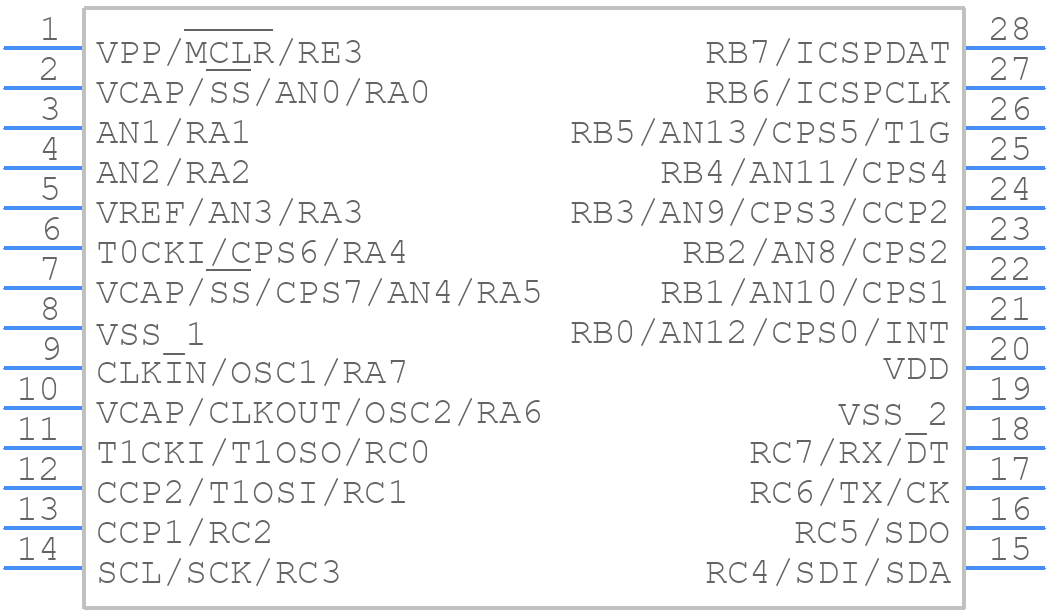

  • Part Symbol

    Part Symbol

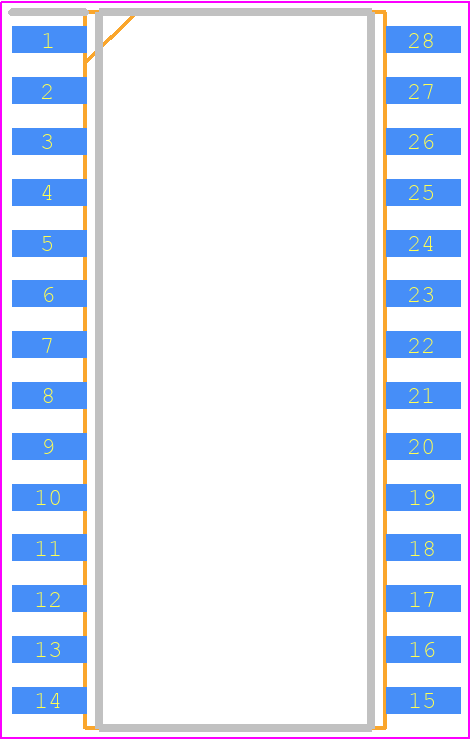

  • Footprint

    footprint

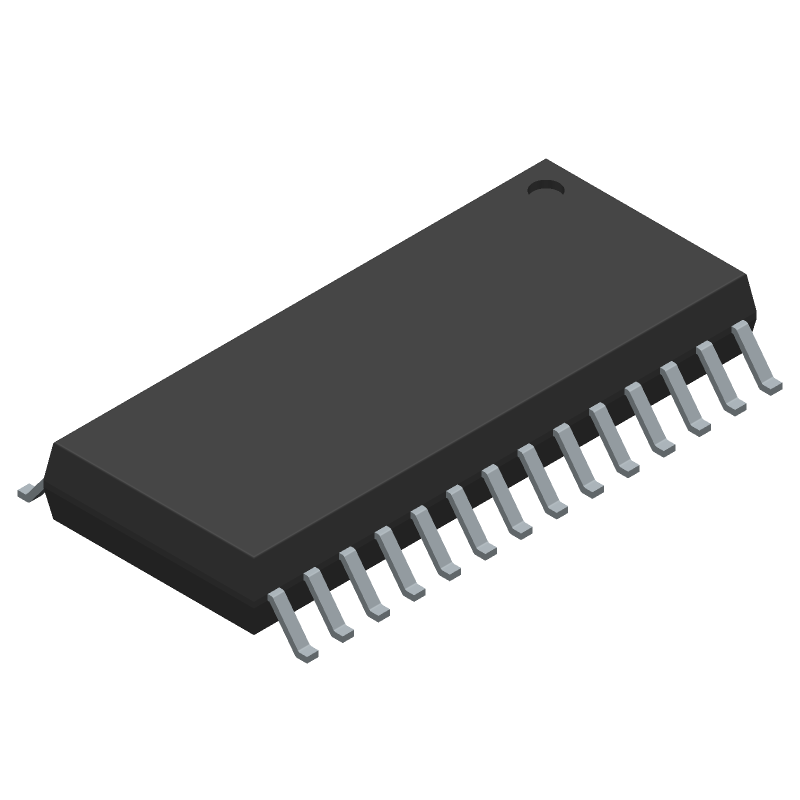

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F722-I/SO Part Data Attributes

Parametric Data
PIC16F722-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F722-I/SO Microchip Technology Inc 8-BIT, FLASH, 20 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, ROHS COMPLIANT, PLASTIC, SOIC-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 7.50 MM, ROHS COMPLIANT, PLASTIC, SOIC-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 11 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES AT 16MHZ AT 1.8V MIN SUPPLY
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 25
Number of Serial I/Os 1
Number of Terminals 28
Number of Timers 5
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 128
ROM (words) 3584
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 2.65 mm
Speed 20 MHz
Supply Current-Max 3.2 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F722-I/SO

This table gives cross-reference parts and alternative options found for PIC16F722-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F722-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F722T-E/SO Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, ROHS COMPLIANT, PLASTIC, SOIC-28 PIC16F722-I/SO vs PIC16F722T-E/SO
Part Number Manufacturer Composite Price Description Compare
PIC16F722AT-I/SO Microchip Technology Inc $1.5800 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 7.50 MM,ROHS COMPLIANT, PLASTIC, SOIC-28 PIC16F722-I/SO vs PIC16F722AT-I/SO
PIC16F722A-I/SP Microchip Technology Inc $1.6986 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SDIP-28 PIC16F722-I/SO vs PIC16F722A-I/SP
PIC16F722AT-I/ML Microchip Technology Inc $1.7400 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM,ROHS COMPLIANT, PLASTIC, QFN-28 PIC16F722-I/SO vs PIC16F722AT-I/ML
PIC16F722T-I/SS Microchip Technology Inc $1.8300 8-BIT, FLASH, 20 MHz, MICROCONTROLLER, PDSO28, 5.30 MM, ROHS COMPLIANT, PLASTIC, SSOP-28 PIC16F722-I/SO vs PIC16F722T-I/SS
PIC16F722-E/SO Microchip Technology Inc $1.8576 8-BIT, FLASH, 20 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, ROHS COMPLIANT, PLASTIC, SOIC-28 PIC16F722-I/SO vs PIC16F722-E/SO
PIC16F722A-E/SP Microchip Technology Inc $1.8811 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP28, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SDIP-28 PIC16F722-I/SO vs PIC16F722A-E/SP
PIC16F722-E/SP Microchip Technology Inc $2.1565 8-BIT, FLASH, 20 MHz, MICROCONTROLLER, PDIP28, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SDIP-28 PIC16F722-I/SO vs PIC16F722-E/SP
PIC16F722A-E/ML Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM,ROHS COMPLIANT, PLASTIC, QFN-28 PIC16F722-I/SO vs PIC16F722A-E/ML
PIC16F722A-E/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC28, 4 X 4 MM, 0.50 MM HEGHT, ROHS COMPLIANT, PLASTIC, UQFN-28 PIC16F722-I/SO vs PIC16F722A-E/MV
PIC16F722T-E/MV Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, MICROCONTROLLER, PQCC28, 4 X 4 MM, ROHS COMPLIANT, PLASTIC, UQFN-28 PIC16F722-I/SO vs PIC16F722T-E/MV

PIC16F722-I/SO Related Parts

PIC16F722-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16F722 is 20 MHz.

  • The PIC16F722 has 7 KB of flash memory.

  • Yes, the PIC16F722 is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • Yes, the PIC16F722 has 11-channel, 10-bit ADCs.

  • No, the PIC16F722 does not have built-in USB capabilities. For USB applications, consider using a different microcontroller, such as the PIC16F1454.
