Microcontrollers and Processors / Microcontrollers / PIC16F18346-I/ML
Datasheets
PIC16F18346-I/ML by: Microchip Technology Inc

RISC Microcontroller, FLASH, 32MHz, CMOS, PQCC20

Part Details for PIC16F18346-I/ML by Microchip Technology Inc

Results Overview of PIC16F18346-I/ML by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

PIC16F18346-I/ML Information

PIC16F18346-I/ML by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F18346-I/ML

Part # Distributor Description Stock Price Buy
DISTI # 02AH4610
Newark Mcu, 8Bit, 32Mhz, Vqfn-20, Product Range:Pic16 Family Pic16F18Xx Series Microcontrollers, Cpu Speed:32Mhz, Program Memory Size:28Kb, Ram Memory Size:2Kb, No. Of Pins:20Pins, Mcu Case Style:Vqfn, No. Of I/O S:18I/O S, Embedded Rohs Compliant: Yes |Microchip PIC16F18346-I/ML RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 370
  • 1 $1.4300
  • 10 $1.3700
  • 25 $1.3100
  • 50 $1.2500
  • 182 $1.1900
$1.1900 / $1.4300 Buy Now
DISTI # PIC16F18346-I/ML-ND
DigiKey IC MCU 8BIT 28KB FLASH 20QFN Min Qty: 1 Lead time: 6 Weeks Container: Tube 632
In Stock
  • 1 $1.4300
  • 25 $1.3100
  • 100 $1.1900
$1.1900 / $1.4300 Buy Now
DISTI # PIC16F18346-I/ML
Avnet Americas MCU 8-Bit PIC16F PIC RISC 28KB Flash 2.3V to 5.5V 20-Pin VQFN Tube - Rail/Tube (Alt: PIC16F18346-I/ML) RoHS: Not Compliant Min Qty: 546 Package Multiple: 91 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 546 $1.4014
  • 728 $1.2119
  • 1,274 $1.1917
  • 2,730 $1.1716
  • 5,460 $1.1514
$1.1514 / $1.4014 Buy Now
DISTI # 579-PIC16F18346-I/ML
Mouser Electronics 8-bit Microcontrollers - MCU 28KB, 2KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, 2x(SPI/I2C) RoHS: Compliant 209
  • 1 $1.4300
  • 25 $1.3100
  • 91 $1.1900
$1.1900 / $1.4300 Buy Now
DISTI # PIC16F18346-I/ML
Microchip Technology Inc 28KB, 2KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO,, QFN, Projected EOL: 2044-08-02 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 751

Alternates Available
  • 1 $1.4300
  • 25 $1.3100
  • 100 $1.1900
  • 1,000 $1.0900
  • 5,000 $1.0400
$1.0400 / $1.4300 Buy Now
DISTI # 73927121
RS Microcontroller, 28KB, 2KB RAM, 256B EEPROM, 5b DAC, 10b PWM, 2x(SPI/I2C) Min Qty: 546 Package Multiple: 1 Lead time: 40 Weeks, 0 Days Container: Bulk 0
  • 546 $2.1400
$2.1400 RFQ
Onlinecomponents.com 8 Bit Microcontroller - Extreme Low Power - 28KB Flash - 256B EEPROM - 2KB RAM - 18 I/O's - 2.3 to 5.5V - 20-lead VQFN - -40°C to +85°C RoHS: Compliant 0
  • 160 $1.8100
  • 319 $1.3600
  • 478 $1.2700
  • 637 $1.2500
$1.2500 / $1.8100 Buy Now
DISTI # PIC16F18346-I/ML
TME IC: PIC microcontroller, 28kB, 32MHz, 2.3÷5.5VDC, SMD, QFN20, PIC16 Min Qty: 1 0
  • 1 $1.6400
  • 5 $1.4800
  • 25 $1.4400
  • 91 $1.3500
$1.3500 / $1.6400 RFQ
NAC 28KB, 2KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, 2x(SPI/I2C) - Package: 20 QFN 4x4x0.9mm TUBE RoHS: Compliant Min Qty: 273 Package Multiple: 91 Container: Tube 0
  • 1 $1.5500
  • 100 $1.4000
  • 500 $1.2900
  • 1,000 $1.2600
$1.2600 / $1.5500 Buy Now
DISTI # PIC16F18346-I/ML
Avnet Silica MCU 8Bit PIC16F PIC RISC 28KB Flash 23V to 55V 20Pin VQFN Tube (Alt: PIC16F18346-I/ML) RoHS: Compliant Min Qty: 91 Package Multiple: 91 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F18346-I/ML
EBV Elektronik MCU 8Bit PIC16F PIC RISC 28KB Flash 23V to 55V 20Pin VQFN Tube (Alt: PIC16F18346-I/ML) RoHS: Compliant Min Qty: 91 Package Multiple: 91 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC VQFN-20-EP(4x4) Microcontrollers (MCU/MPU/SOC) ROHS 4
  • 1 $2.6810
  • 10 $2.6357
  • 30 $2.6056
  • 100 $2.5739
$2.5739 / $2.6810 Buy Now
Master Electronics 8 Bit Microcontroller - Extreme Low Power - 28KB Flash - 256B EEPROM - 2KB RAM - 18 I/O's - 2.3 to 5.5V - 20-lead VQFN - -40°C to +85°C RoHS: Compliant 0
  • 160 $1.8100
  • 319 $1.3600
  • 478 $1.2700
  • 637 $1.2500
$1.2500 / $1.8100 Buy Now
Vyrian Peripheral ICs 689
RFQ

Part Details for PIC16F18346-I/ML

PIC16F18346-I/ML CAD Models

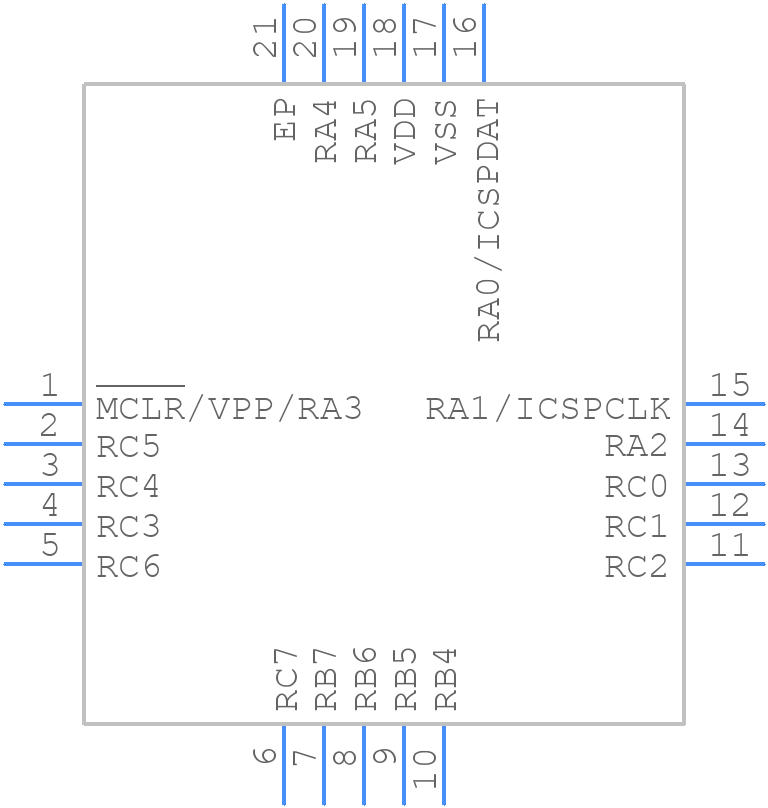

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F18346-I/ML Part Data Attributes

Parametric Data
PIC16F18346-I/ML Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F18346-I/ML Microchip Technology Inc RISC Microcontroller, FLASH, 32MHz, CMOS, PQCC20
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 2.3 V MINIMUM SUPPLY AT 16 MHz
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N20
JESD-609 Code e3
Length 4 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 18
Number of Serial I/Os 1
Number of Terminals 20
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC20,.16SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
RAM (bytes) 2048
RAM (words) 2048
ROM (words) 28672
ROM Programmability FLASH
Seated Height-Max 1 mm
Speed 32 MHz
Supply Current-Max 2.9 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 4 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F18346-I/ML

This table gives cross-reference parts and alternative options found for PIC16F18346-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F18346-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16LF18346-I/GZ Microchip Technology Inc $1.2778 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16LF18346-I/GZ
PIC16F18346-I/SS Microchip Technology Inc $1.2858 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346-I/SS
PIC16F18346-I/GZ Microchip Technology Inc $1.3297 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346-I/GZ
PIC16F18346-E/SO Microchip Technology Inc $1.3451 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346-E/SO
PIC16F18346-E/GZ Microchip Technology Inc $1.4664 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346-E/GZ
PIC16F18346T-I/SS Microchip Technology Inc $1.4950 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346T-I/SS
PIC16F18346-E/SS Microchip Technology Inc $1.5356 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346-E/SS
PIC16LF18346T-I/GZ Microchip Technology Inc $1.6050 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16LF18346T-I/GZ
PIC16F18346-I/P Microchip Technology Inc $2.0736 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346-I/P
PIC16F18346-E/P Microchip Technology Inc $2.1300 RISC MICROCONTROLLER PIC16F18346-I/ML vs PIC16F18346-E/P

PIC16F18346-I/ML Frequently Asked Questions (FAQ)

  • The PIC16F18346-I/ML can operate at a maximum clock frequency of 32 MHz.

  • The PIC16F18346-I/ML has 14 KB of flash memory.

  • Yes, the PIC16F18346-I/ML is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • Yes, the PIC16F18346-I/ML has 12-bit ADCs with up to 24 channels.

  • Yes, the PIC16F18346-I/ML has a low power consumption of 100 nA in sleep mode and 1.5 mA/MHz in active mode, making it suitable for low-power applications.
