PIC16F18346-E/SO by: Microchip Technology Inc

RISC MICROCONTROLLER

Part Details for PIC16F18346-E/SO by Microchip Technology Inc

Results Overview of PIC16F18346-E/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

PIC16F18346-E/SO Information

PIC16F18346-E/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F18346-E/SO

Part # Distributor Description Stock Price Buy
DISTI # 79AK9294
Newark Mcu, 8Bit, Pic16, 32Mhz, Wsoic-20 Rohs Compliant: Yes |Microchip PIC16F18346-E/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 352
  • 1 $1.6700
  • 10 $1.5300
  • 25 $1.3800
$1.3800 / $1.6700 Buy Now
DISTI # PIC16F18346-E/SO-ND
DigiKey IC MCU 8BIT 28KB FLASH 20SOIC Min Qty: 1 Lead time: 7 Weeks Container: Tube 275
In Stock
  • 1 $1.6700
  • 25 $1.5300
  • 100 $1.3800
$1.3800 / $1.6700 Buy Now
DISTI # PIC16F18346-E/SO
Avnet Americas 28KB 2KB RAM 256B EEPROM 10B ADC COMPARATOR 5B DAC 10B PWM CCP CLC NCO CWG PPS EUSART 2X(SPI/I2C) - Rail/Tube (Alt: PIC16F18346-E/SO) RoHS: Compliant Min Qty: 456 Package Multiple: 38 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 456 $1.4396
  • 532 $1.4159
  • 988 $1.3923
  • 2,280 $1.3687
  • 4,560 $1.3452
$1.3452 / $1.4396 Buy Now
DISTI # 579-PIC16F18346-E/SO
Mouser Electronics 8-bit Microcontrollers - MCU 256B EEPROM 10b ADC 5b DAC 2x(SPI/I2C) RoHS: Compliant 4088
  • 1 $1.6700
  • 25 $1.5300
  • 114 $1.3800
$1.3800 / $1.6700 Buy Now
DISTI # PIC16F18346-E/SO
Microchip Technology Inc 28KB, 2KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO,, SOIC, Projected EOL: 2044-04-29 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 3740

Alternates Available
  • 1 $1.6700
  • 25 $1.5300
  • 100 $1.3800
  • 1,000 $1.2700
  • 5,000 $1.2100
$1.2100 / $1.6700 Buy Now
Onlinecomponents.com 8 Bit Microcontroller - Extreme Low Power - 28KB Flash - 256B EEPROM - 2KB RAM - 18 I/O's - 2.3 to 5.5V - 20-lead SOIC - -40°C to +125°C RoHS: Compliant 2470 In Stock
  • 10 $2.2100
  • 25 $2.1800
  • 50 $2.1400
  • 124 $2.1100
  • 247 $1.5900
  • 371 $1.4800
  • 494 $1.4500
$1.4500 / $2.2100 Buy Now
DISTI # 70367340
Verical MCU 8-bit PIC RISC 28KB Flash 2.5V/3.3V/5V 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 30 Package Multiple: 10 Date Code: 2322 Americas - 2470
  • 30 $2.7842
  • 50 $2.7331
  • 130 $2.6017
  • 250 $1.9605
$1.9605 / $2.7842 Buy Now
DISTI # PIC16F18346-E/SO
TME IC: PIC microcontroller, 28kB, 32MHz, 2.3÷5.5VDC, SMD, SO20, PIC16 Min Qty: 1 0
  • 1 $1.7400
  • 5 $1.6700
  • 25 $1.5600
$1.5600 / $1.7400 RFQ
NAC 28KB, 2KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, 2x(SPI/I2C) - Package: 20 SOIC .300in TUBE RoHS: Compliant Min Qty: 228 Package Multiple: 38 Container: Tube 0
  • 1 $1.8200
  • 100 $1.6400
  • 500 $1.5100
  • 1,000 $1.4700
$1.4700 / $1.8200 Buy Now
DISTI # PIC16F18346-E/SO
Avnet Silica 28KB 2KB RAM 256B EEPROM 10B ADC COMPARATOR 5B DAC 10B PWM CCP CLC NCO CWG PPS EUSART 2XSPII2C (Alt: PIC16F18346-E/SO) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F18346-E/SO
EBV Elektronik 28KB 2KB RAM 256B EEPROM 10B ADC COMPARATOR 5B DAC 10B PWM CCP CLC NCO CWG PPS EUSART 2XSPII2C (Alt: PIC16F18346-E/SO) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics 8 Bit Microcontroller - Extreme Low Power - 28KB Flash - 256B EEPROM - 2KB RAM - 18 I/O's - 2.3 to 5.5V - 20-lead SOIC - -40°C to +125°C RoHS: Compliant 2470 In Stock
  • 10 $2.2100
  • 25 $2.1800
  • 50 $2.1400
  • 124 $2.1100
  • 247 $1.5900
  • 371 $1.4800
  • 494 $1.4500
$1.4500 / $2.2100 Buy Now
Vyrian Peripheral ICs 1615
RFQ

Part Details for PIC16F18346-E/SO

PIC16F18346-E/SO CAD Models

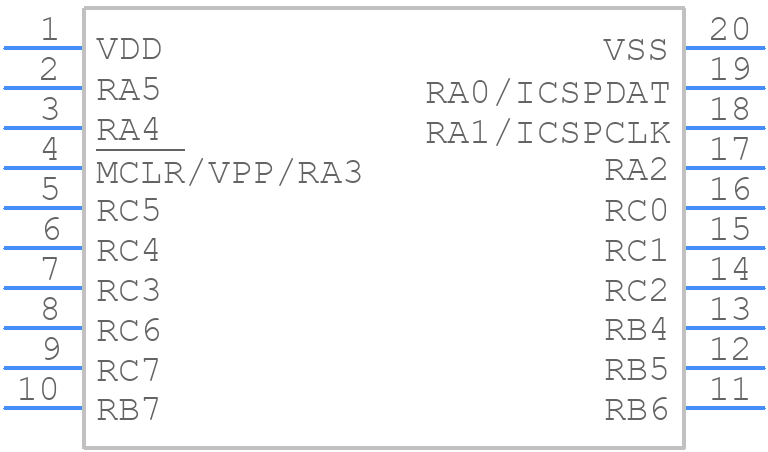

  • Part Symbol

    Part Symbol

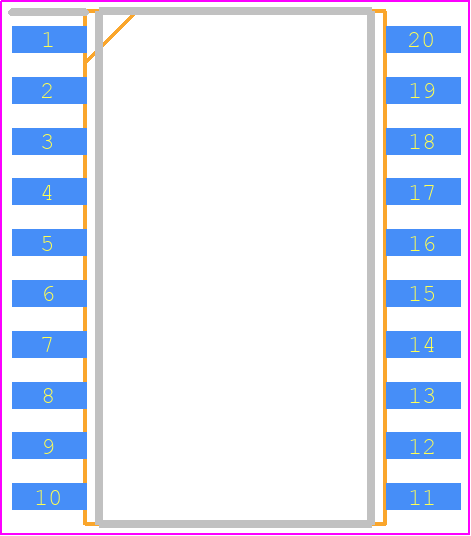

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F18346-E/SO Part Data Attributes

Parametric Data
PIC16F18346-E/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F18346-E/SO Microchip Technology Inc RISC MICROCONTROLLER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Date Of Intro 2016-04-06
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 2.3 V MINIMUM SUPPLY AT 16 MHz
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 12.8 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 18
Number of Serial I/Os 1
Number of Terminals 20
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
RAM (bytes) 2048
RAM (words) 2048
ROM (words) 28672
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Speed 32 MHz
Supply Current-Max 2.9 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
