Microcontrollers and Processors / Microcontrollers / PIC16F18345-I/SO
Datasheets
PIC16F18345-I/SO by: Microchip Technology Inc

IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SOP,20PIN,PLASTIC

Part Details for PIC16F18345-I/SO by Microchip Technology Inc

Results Overview of PIC16F18345-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16F18345-I/SO Information

PIC16F18345-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F18345-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 46Y7980
Newark 8 Bit Microcontroller, Flash, Pic16F183Xx, 32 Mhz, 14 Kb, 1 Kb, 20, Soic Rohs Compliant: Yes |Microchip PIC16F18345-I/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 136
  • 1 $1.5300
  • 10 $1.5100
  • 25 $1.4800
  • 76 $1.4600
  • 114 $1.4300
  • 532 $1.4100
  • 1,026 $1.2800
$1.2800 / $1.5300 Buy Now
DISTI # PIC16F18345-I/SO-ND
DigiKey IC MCU 8BIT 14KB FLASH 20SOIC Min Qty: 1 Lead time: 4 Weeks Container: Tube 934
In Stock
  • 1 $1.5300
  • 25 $1.4100
  • 100 $1.2800
$1.2800 / $1.5300 Buy Now
DISTI # PIC16F18345-I/SO
Avnet Americas MCU 8-Bit PIC16 PIC RISC 14KB Flash 3.3V/5V 20-Pin SOIC Tube - Rail/Tube (Alt: PIC16F18345-I/SO) RoHS: Compliant Min Qty: 456 Package Multiple: 38 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 456 $1.3431
  • 532 $1.3320
  • 988 $1.3210
  • 2,280 $1.3100
  • 4,560 $1.2990
$1.2990 / $1.3431 Buy Now
DISTI # 579-PIC16F18345-I/SO
Mouser Electronics 8-bit Microcontrollers - MCU 8-Bit MCU 14KB Flash 1KB RAM, 256B EE RoHS: Compliant 594
  • 1 $1.5300
  • 25 $1.4100
  • 114 $1.2800
$1.2800 / $1.5300 Buy Now
DISTI # PIC16F18345-I/SO
Microchip Technology Inc 14KB Flash, 256B EEPROM, 1KB RAM, 18 I/O, 10-bit PWMs, CCP, CWG, SOIC, Projected EOL: 2039-07-27 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 1700

Alternates Available
  • 1 $1.5300
  • 25 $1.4100
  • 100 $1.2800
  • 1,000 $1.1800
  • 5,000 $1.1200
$1.1200 / $1.5300 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V Automotive 20-Pin SOIC W Tube RoHS: Compliant 2508 In Stock
7220 Factory Stock
  • 25 $2.0700
  • 50 $2.0400
  • 100 $2.0100
  • 133 $1.9800
  • 266 $1.4900
  • 399 $1.3900
  • 532 $1.3600
$1.3600 / $2.0700 Buy Now
DISTI # 82696622
Verical MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 25 Package Multiple: 25 Date Code: 2407 Americas - 2500
  • 25 $2.6918
  • 50 $2.6054
  • 100 $2.5220
  • 150 $2.4414
  • 275 $1.8061
$1.8061 / $2.6918 Buy Now
DISTI # PIC16F18345-I/SO
TME IC: PIC microcontroller, 14kB, 32MHz, 2.3÷5.5VDC, SMD, SO20, PIC16 Min Qty: 1 0
  • 1 $1.7100
  • 5 $1.6700
  • 25 $1.5400
  • 114 $1.4400
$1.4400 / $1.7100 RFQ
DISTI # PIC16F18345-I/SO
IBS Electronics MCU 8-BIT PIC RISC 14KB FLASH 2.5V/3.3V/5V AUTOMOTIVE 20-PIN SOIC W TUBE Min Qty: 25 Package Multiple: 1 2508
  • 25 $2.6910
  • 50 $2.6520
  • 100 $2.6130
  • 133 $2.5740
  • 266 $1.9370
  • 399 $1.8070
  • 532 $1.7680
$1.7680 / $2.6910 Buy Now
NAC 14KB, 1KB RAM, 256B EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, SPI, I2C - Package: 20 SOIC .300in TUBE RoHS: Compliant Min Qty: 228 Package Multiple: 38 Container: Tube 0
  • 1 $1.6900
  • 100 $1.5300
  • 500 $1.4100
  • 1,000 $1.3800
$1.3800 / $1.6900 Buy Now
DISTI # PIC16F18345-I/SO
Avnet Silica MCU 8Bit PIC16 PIC RISC 14KB Flash 33V5V 20Pin SOIC Tube (Alt: PIC16F18345-I/SO) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F18345-I/SO
EBV Elektronik MCU 8Bit PIC16 PIC RISC 14KB Flash 33V5V 20Pin SOIC Tube (Alt: PIC16F18345-I/SO) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V Automotive 20-Pin SOIC W Tube RoHS: Compliant 2508 In Stock
7220 Factory Stock
  • 25 $2.0700
  • 50 $2.0400
  • 100 $2.0100
  • 133 $1.9800
  • 266 $1.4900
  • 399 $1.3900
  • 532 $1.3600
$1.3600 / $2.0700 Buy Now
Vyrian Peripheral ICs 1652
RFQ
Win Source Electronics IC MCU 8BIT 14KB FLASH 20SOIC / MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V Automotive 20-Pin SOIC W Tube 12546
  • 12 $4.8972
  • 29 $4.0182
  • 45 $3.8924
  • 62 $3.7665
  • 80 $3.6417
  • 107 $3.2652
$3.2652 / $4.8972 Buy Now

Part Details for PIC16F18345-I/SO

PIC16F18345-I/SO CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

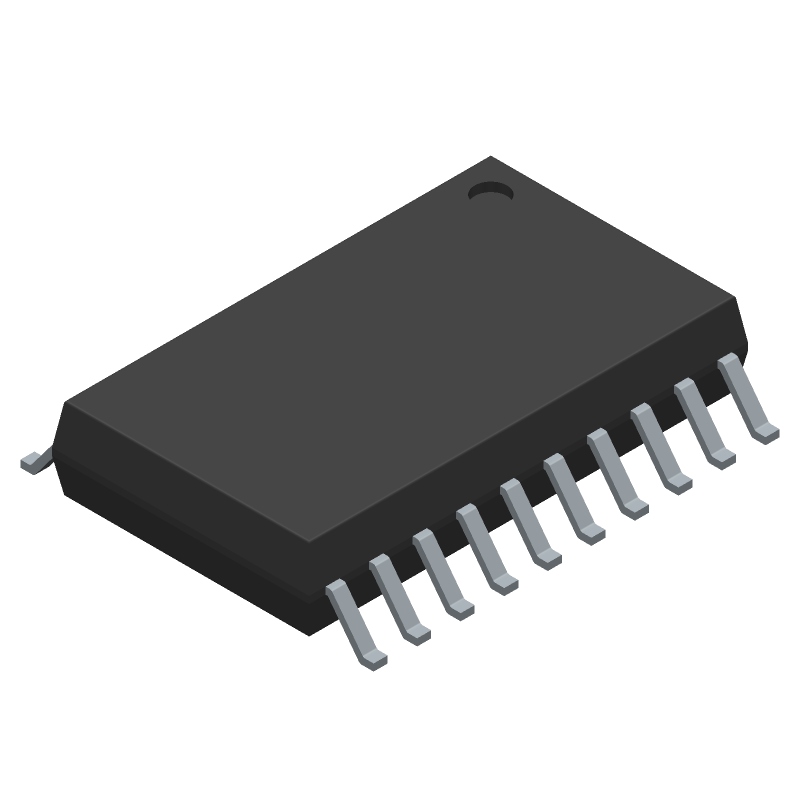

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F18345-I/SO Part Data Attributes

Parametric Data
PIC16F18345-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F18345-I/SO Microchip Technology Inc IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SOP,20PIN,PLASTIC
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description SOIC-20
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 2.3V MIN @ 16 MHZ
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 12.8 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 18
Number of Serial I/Os 1
Number of Terminals 20
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 14336
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Speed 32 MHz
Supply Current-Max 3.1 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F18345-I/SO

This table gives cross-reference parts and alternative options found for PIC16F18345-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F18345-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F18345T-I/SO Microchip Technology Inc $1.6200 IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SOP,20PIN,PLASTIC PIC16F18345-I/SO vs PIC16F18345T-I/SO

PIC16F18345-I/SO Related Parts

PIC16F18345-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16F18345 is 32 MHz.

  • The PIC16F18345 has 14 KB of flash memory.

  • Yes, the PIC16F18345 can operate at 5V, but it is recommended to operate it at 3.3V for optimal performance and power consumption.

  • No, the PIC16F18345 does not have built-in USB support. However, it can be used with external USB controllers or modules.

  • The PIC16F18345 has 12-bit ADC with 12 channels.
