PIC16F15323T-E/ST by: Microchip Technology Inc

RISC Microcontroller

Part Details for PIC16F15323T-E/ST by Microchip Technology Inc

Results Overview of PIC16F15323T-E/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16F15323T-E/ST Information

PIC16F15323T-E/ST by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F15323T-E/ST

Part # Distributor Description Stock Price Buy
DISTI # 150-PIC16F15323T-E/STCT-ND
DigiKey IC MCU 8BIT 3.5KB FLASH 14TSSOP Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2500
In Stock
  • 1 $1.0400
  • 25 $0.9600
  • 100 $0.8700
  • 2,500 $0.8700
$0.8700 / $1.0400 Buy Now
DISTI # PIC16F15323T-E/ST
Avnet Americas 3.5KB, 256 B RAM, 4X PWMS, COMPARATOR, DAC, ADC, CWG, EUSART, SPI/I2C - Tape and Reel (Alt: PIC16F15323T-E/ST) RoHS: Not Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.9035
  • 5,000 $0.8961
  • 10,000 $0.8887
  • 15,000 $0.8813
  • 20,000 $0.8739
$0.8739 / $0.9035 Buy Now
DISTI # 579-PIC16F15323T-EST
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB, 256 B RAM, 4x PWMs, Comparator, DAC, ADC, CWG, EUSART, SPI/I2C RoHS: Compliant 2500
  • 1 $1.0400
  • 25 $0.9600
  • 100 $0.8700
$0.8700 / $1.0400 Buy Now
DISTI # PIC16F15323T-E/ST
Microchip Technology Inc 3.5KB, 256 B RAM, 4x PWMs, Comparator, DAC, ADC, CWG, EUSART, SPI/I2C, TSSOP, Projected EOL: 2044-06-12 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 295000
  • 1 $1.0400
  • 25 $0.9600
  • 100 $0.8700
  • 1,000 $0.8000
  • 5,000 $0.7700
$0.7700 / $1.0400 Buy Now
Future Electronics 3.5KB, 256 B RAM, 4x PWMs, Comparator, DAC, ADC, CWG, EUSART, SPI/I2C RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 4 Weeks Container: Reel 12500
Reel
  • 2,500 $0.9000
$0.9000 Buy Now
Onlinecomponents.com   RoHS: Compliant 342500 Factory Stock
  • 625 $1.7160
  • 1,250 $1.0560
  • 1,875 $0.8360
  • 2,500 $0.8190
$0.8190 / $1.7160 Buy Now
Future Electronics 3.5KB, 256 B RAM, 4x PWMs, Comparator, DAC, ADC, CWG, EUSART, SPI/I2C Min Qty: 2500 Package Multiple: 2500 12500
null
  • 2,500 $0.8400
$0.8400 Buy Now
NAC 3.5KB, 256 B RAM, 4x PWMs, Comparator, DAC, ADC, CWG, EUSART, SPI/I2C, 14 TSSOP 4.4mm T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 0
  • 1 $1.1400
  • 100 $1.0300
  • 500 $0.9500
$0.9500 / $1.1400 Buy Now
DISTI # PIC16F15323T-E/ST
Avnet Silica 35KB 256 B RAM 4X PWMS COMPARATOR DAC ADC CWG EUSART SPII2C (Alt: PIC16F15323T-E/ST) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics   RoHS: Compliant 342500 Factory Stock
  • 625 $1.7160
  • 1,250 $1.0560
  • 1,875 $0.8360
  • 2,500 $0.8190
$0.8190 / $1.7160 Buy Now
New Advantage Corporation 3.5KB, 256 B RAM, 4x PWMs, Comparator, DAC, ADC, CWG, EUSART, SPI/I2C RoHS: Compliant Min Qty: 1 Package Multiple: 2500 10000
  • 2,500 $1.4000
  • 10,000 $1.2900
$1.2900 / $1.4000 Buy Now

Part Details for PIC16F15323T-E/ST

PIC16F15323T-E/ST CAD Models

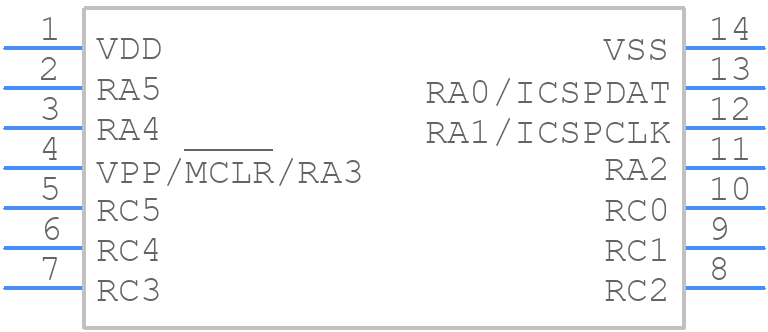

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F15323T-E/ST Part Data Attributes

Parametric Data
PIC16F15323T-E/ST Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F15323T-E/ST Microchip Technology Inc RISC Microcontroller
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature IT ALSO OPERATES AT 2.3V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 mm
Low Power Mode YES
Number of External Interrupts 1
Number of I/O Lines 12
Number of Serial I/Os 1
Number of Terminals 14
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
RAM (bytes) 256
ROM (words) 3584
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 32 MHz
Supply Current-Max 3.6 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
