PIC16F15323-I/SL by: Microchip Technology Inc

3.5KB, 256B RAM, 4XPWMS, COMPARA

Part Details for PIC16F15323-I/SL by Microchip Technology Inc

Results Overview of PIC16F15323-I/SL by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC16F15323-I/SL Information

PIC16F15323-I/SL by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F15323-I/SL

Part # Distributor Description Stock Price Buy
DISTI # 72AC6273
Newark Mcu, 8Bit, 32Mhz, Soic-14, Product Range:Pic16 Family Pic16F153Xx Series Microcontrollers, Cpu Speed:32Mhz, Program Memory Size:3.5Kb, Ram Memory Size:256Byte, No. Of Pins:14Pins, Mcu Case Style:Soic, No. Of I/O S:12I/O S, Embedded Rohs Compliant: Yes |Microchip PIC16F15323-I/SL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 6468
  • 1 $0.8400
  • 10 $0.8050
  • 25 $0.7700
  • 50 $0.7470
  • 114 $0.7230
  • 513 $0.7000
$0.7000 / $0.8400 Buy Now
DISTI # PIC16F15323-I/SL-ND
DigiKey IC MCU 8BIT 3.5KB FLASH 14SOIC Min Qty: 1 Lead time: 4 Weeks Container: Tube 1753
In Stock
  • 1 $0.8400
  • 25 $0.7700
  • 100 $0.7000
$0.7000 / $0.8400 Buy Now
DISTI # PIC16F15323-I/SL
Avnet Americas MCU 8-Bit PIC16F PIC RISC 3.5KB Flash 2.3V to 5.5V 14-Pin SOIC Tube - Rail/Tube (Alt: PIC16F15323-I/SL) RoHS: Compliant Min Qty: 855 Package Multiple: 57 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 1 $0.8400
  • 25 $0.7700
  • 100 $0.7000
$0.7000 / $0.8400 Buy Now
DISTI # 579-PIC16F15323-I/SL
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB, 256B RAM, 4xPWMs, Comparator, DAC, ADC, 4xCLC, CWG, EUSART, SPI/I2C RoHS: Compliant 1870
  • 1 $0.8400
  • 25 $0.7700
  • 114 $0.7000
$0.7000 / $0.8400 Buy Now
DISTI # PIC16F15323-I/SL
Microchip Technology Inc 3.5KB, 256 B RAM, 4x PWMs, Comparator, DAC, ADC, CWG, EUSART, SPI/I2C, SOIC, Projected EOL: 2044-04-03 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 36812
  • 1 $0.8400
  • 25 $0.7700
  • 100 $0.7000
  • 1,000 $0.6400
  • 5,000 $0.6100
$0.6100 / $0.8400 Buy Now
Future Electronics PIC16F Series 3.5 kB Flash 256 B RAM 12 I/O SMT 8-Bit Microcontroller - SOIC-14 RoHS: Compliant pbFree: Yes Min Qty: 57 Package Multiple: 57 Lead time: 4 Weeks Container: Tube 627
Tube
  • 57 $0.6950
  • 171 $0.6750
  • 228 $0.6700
  • 570 $0.6550
  • 855 $0.6400
$0.6400 / $0.6950 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 3.5KB Flash 3.3V/5V 14-Pin SOIC N Tube RoHS: Compliant 3591 In Stock
40869 Factory Stock
  • 57 $0.7790
  • 285 $0.7200
  • 513 $0.7090
  • 1,026 $0.6850
  • 2,508 $0.6540
  • 5,016 $0.6440
$0.6440 / $0.7790 Buy Now
DISTI # 66294979
Verical MCU 8-bit PIC RISC 3.5KB Flash 2.5V/3.3V/5V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 114 Package Multiple: 57 Date Code: 2240 Americas - 3591
  • 114 $1.0414
  • 285 $0.9449
  • 513 $0.9137
  • 1,026 $0.8671
  • 2,508 $0.8134
$0.8134 / $1.0414 Buy Now
DISTI # 77907139
Verical MCU 8-bit PIC RISC 3.5KB Flash 2.5V/3.3V/5V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 65 Package Multiple: 1 Americas - 1458
  • 65 $1.2742
$1.2742 Buy Now
Future Electronics PIC16F Series 3.5 kB Flash 256 B RAM 12 I/O SMT 8-Bit Microcontroller - SOIC-14 Min Qty: 57 Package Multiple: 57 627
null
  • 57 $0.6950
  • 171 $0.6750
  • 228 $0.6700
  • 570 $0.6550
  • 855 $0.6400
$0.6400 / $0.6950 Buy Now
DISTI # PIC16F15323-I/SL
TME IC: PIC microcontroller, 3.5kB, 32MHz, 2.3÷5.5VDC, SMD, SO14, PIC16 Min Qty: 1 1974
  • 1 $0.9500
  • 5 $0.9000
  • 26 $0.8400
  • 114 $0.7800
$0.7800 / $0.9500 Buy Now
NAC 3.5KB, 256B RAM, 4xPWMs, Comparator, DAC, ADC, 4xCLC, CWG, EUSART, SPI/I2C - Package: 14 SOIC .150in TUBE RoHS: Compliant Min Qty: 456 Package Multiple: 57 Container: Tube 0
  • 1 $0.9100
  • 100 $0.8200
  • 500 $0.7600
  • 1,000 $0.7400
$0.7400 / $0.9100 Buy Now
DISTI # PIC16F15323-I/SL
Avnet Silica MCU 8Bit PIC16F PIC RISC 35KB Flash 23V to 55V 14Pin SOIC Tube (Alt: PIC16F15323-I/SL) RoHS: Compliant Min Qty: 57 Package Multiple: 57 Lead time: 6 Weeks, 0 Days Silica - 684
Buy Now
DISTI # PIC16F15323-I/SL
EBV Elektronik MCU 8Bit PIC16F PIC RISC 35KB Flash 23V to 55V 14Pin SOIC Tube (Alt: PIC16F15323-I/SL) RoHS: Compliant Min Qty: 57 Package Multiple: 57 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 32MHz SOIC-14 Microcontrollers (MCU/MPU/SOC) ROHS 36
  • 1 $1.2481
  • 10 $1.0021
  • 57 $0.8678
  • 114 $0.7154
  • 513 $0.6475
  • 1,140 $0.6173
$0.6173 / $1.2481 Buy Now
Master Electronics MCU 8-bit PIC RISC 3.5KB Flash 3.3V/5V 14-Pin SOIC N Tube RoHS: Compliant 3591 In Stock
40869 Factory Stock
  • 57 $0.7790
  • 285 $0.7200
  • 513 $0.7090
  • 1,026 $0.6850
  • 2,508 $0.6540
  • 5,016 $0.6440
$0.6440 / $0.7790 Buy Now
Vyrian Peripheral ICs 10352
RFQ
Win Source Electronics IC MCU 8BIT 3.5KB FLASH 14SOIC 22132
  • 75 $0.8205
  • 155 $0.7676
  • 235 $0.7412
  • 340 $0.6883
  • 440 $0.6618
  • 550 $0.6353
$0.6353 / $0.8205 Buy Now

Part Details for PIC16F15323-I/SL

PIC16F15323-I/SL CAD Models

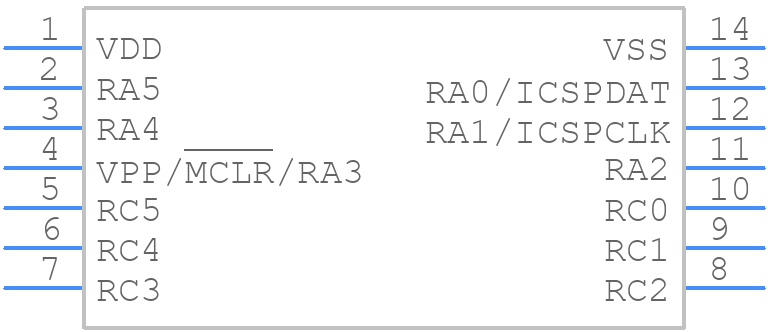

  • Part Symbol

    Part Symbol

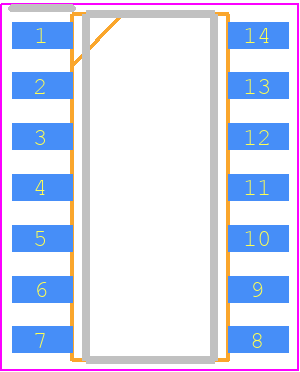

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F15323-I/SL Part Data Attributes

Parametric Data
PIC16F15323-I/SL Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F15323-I/SL Microchip Technology Inc 3.5KB, 256B RAM, 4XPWMS, COMPARA
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature IT ALSO OPERATES AT 2.3V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 12
Number of Serial I/Os 1
Number of Terminals 14
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.24
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 256
ROM (words) 3584
ROM Programmability FLASH
Seated Height-Max 1.75 mm
Speed 32 MHz
Supply Current-Max 3.6 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
