PIC16F15224-I/MG Information

PIC16F15224-I/MG by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F15224-I/MG

Part # Distributor Description Stock Price Buy
DISTI # 36AJ3973
Newark Mcu, 8Bit, 32Mhz, Vqfn-Ep-16 Rohs Compliant: Yes |Microchip PIC16F15224-I/MG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $0.5900
  • 10 $0.5650
  • 25 $0.5400
  • 50 $0.5230
  • 100 $0.5070
  • 600 $0.4900
$0.4900 / $0.5900 Buy Now
DISTI # 150-PIC16F15224-I/MG-ND
DigiKey IC MCU 8BIT 7KB FLASH 16QFN Min Qty: 1 Lead time: 4 Weeks Container: Tube 1451
In Stock
  • 1 $0.5900
  • 25 $0.5400
  • 100 $0.4900
$0.4900 / $0.5900 Buy Now
DISTI # PIC16F15224-I/MG
Avnet Americas MCU 8-Bit PIC16 RISC 7KB Flash 1.8V to 5.5V 16-Pin QFN Tube - Rail/Tube (Alt: PIC16F15224-I/MG) RoHS: Not Compliant Min Qty: 1200 Package Multiple: 120 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 1,200 $0.5128
  • 1,440 $0.5086
  • 2,640 $0.5044
  • 6,000 $0.5002
  • 12,000 $0.4960
$0.4960 / $0.5128 Buy Now
DISTI # 579-PIC16F15224-I/MG
Mouser Electronics 8-bit Microcontrollers - MCU 7KB Flash, 512B RAM, 10b ADC, 2x PWM, 2x CCP, HLT, WDT, PPS, EUSART, SPI/I2C, XLP SLEEP Mode RoHS: Compliant 16
  • 1 $0.5900
  • 25 $0.5400
  • 120 $0.4900
$0.4900 / $0.5900 Buy Now
DISTI # PIC16F15224-I/MG
Microchip Technology Inc 7KB, 512B RAM, 12x I/O,ADC, CCP, EUSART, SPI/I2C, QFN, Projected EOL: 2044-09-03 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 17934

Alternates Available
  • 1 $0.5900
  • 25 $0.5400
  • 100 $0.4900
  • 1,000 $0.4500
  • 5,000 $0.4300
$0.4300 / $0.5900 Buy Now
Onlinecomponents.com Microcontroller - PIC 16F, FuSa - 8-Bit - 32MHz - 11 I/O - 7KB (4K x 14) FLASH - 512 x 8 RAM - 1.8 to 5.5V - 16-QFN (3x3). RoHS: Compliant 17880 Factory Stock
  • 330 $0.7600
  • 660 $0.5700
  • 990 $0.5320
  • 1,320 $0.5210
$0.5210 / $0.7600 Buy Now
DISTI # PIC16F15224-I/MG
TME IC: PIC microcontroller, 7kB, 32MHz, MSSP (SPI / I2C), 1.8÷5.5VDC Min Qty: 3 0
  • 3 $0.7900
  • 10 $0.7600
  • 25 $0.7000
$0.7000 / $0.7900 RFQ
NAC 7KB Flash, 512B RAM, 10b ADC, 2x PWM, 2x CCP, HLT, WDT, PPS, EUSART, SPI/I2C, XLP SLEEP Mode - Package: 16 QFN 3x3x0.9mm TUBE RoHS: Compliant Min Qty: 480 Package Multiple: 120 Container: Tube 0
  • 1 $0.6500
  • 100 $0.5800
  • 500 $0.5400
  • 1,000 $0.5200
$0.5200 / $0.6500 Buy Now
DISTI # PIC16F15224-I/MG
Avnet Silica MCU 8Bit PIC16 RISC 7KB Flash 18V to 55V 16Pin QFN Tube (Alt: PIC16F15224-I/MG) RoHS: Compliant Min Qty: 120 Package Multiple: 120 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F15224-I/MG
EBV Elektronik MCU 8Bit PIC16 RISC 7KB Flash 18V to 55V 16Pin QFN Tube (Alt: PIC16F15224-I/MG) RoHS: Compliant Min Qty: 120 Package Multiple: 120 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Microcontroller - PIC 16F, FuSa - 8-Bit - 32MHz - 11 I/O - 7KB (4K x 14) FLASH - 512 x 8 RAM - 1.8 to 5.5V - 16-QFN (3x3). RoHS: Compliant 17880 Factory Stock
  • 330 $0.7600
  • 660 $0.5700
  • 990 $0.5320
  • 1,320 $0.5210
$0.5210 / $0.7600 Buy Now
Vyrian Peripheral ICs 10163
RFQ

Part Details for PIC16F15224-I/MG

PIC16F15224-I/MG CAD Models

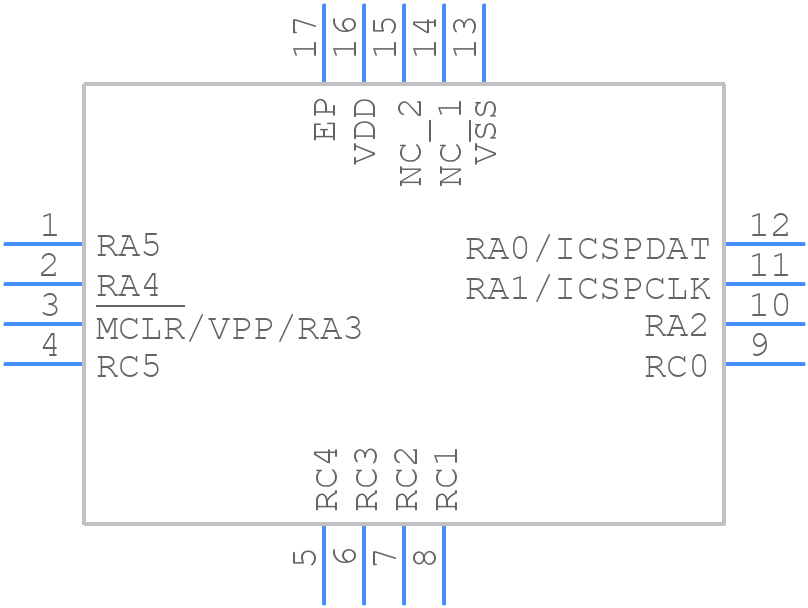

  • Part Symbol
