PIC16F15223T-I/MG by: Microchip Technology Inc

RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PQCC16

Part Details for PIC16F15223T-I/MG by Microchip Technology Inc

Results Overview of PIC16F15223T-I/MG by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

PIC16F15223T-I/MG Information

PIC16F15223T-I/MG by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F15223T-I/MG

Part # Distributor Description Stock Price Buy
DISTI # 51AH8303
Newark Mcu, 8Bit, 32Mhz, Vqfn-Ep-16, Product Range:Pic16 Family Pic16F152Xx Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:3.5Kb, No. Of Pins:16Pins, Ic Case/Package:Vqfn-Ep, Qualification:-Rohs Compliant: Yes |Microchip PIC16F15223T-I/MG RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $0.4000
$0.4000 Buy Now
DISTI # 150-PIC16F15223T-I/MGCT-ND
DigiKey IC MCU 8BIT 3.5KB FLASH 16QFN Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 7900
In Stock
  • 1 $0.4900
  • 25 $0.4500
  • 100 $0.4000
  • 3,300 $0.4000
$0.4000 / $0.4900 Buy Now
DISTI # PIC16F15223T-I/MG
Avnet Americas MCU 8-Bit PIC16F15223 PIC RISC 3.5KB Flash 1.8V to 5.5V 16-Pin VQFN T/R - Tape and Reel (Alt: PIC16F15223T-I/MG) RoHS: Not Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 3,300 $0.4151
  • 6,600 $0.4117
  • 13,200 $0.4083
  • 19,800 $0.4049
  • 26,400 $0.4015
$0.4015 / $0.4151 Buy Now
DISTI # 579-PIC16F15223TI/MG
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB Flash, 256B RAM, 10b ADC, 2x PWM, 2x CCP, HLT, WDT, PPS, EUSART, SPI/I2C, XLP SLEEP Mode RoHS: Compliant 5678
  • 1 $0.4900
  • 25 $0.4500
  • 100 $0.4000
$0.4000 / $0.4900 Buy Now
DISTI # PIC16F15223T-I/MG
Microchip Technology Inc 3.5KB, 256B RAM, 12x I/O,ADC, CCP, EUSART, SPI/I2C, QFN, Projected EOL: 2044-09-03 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $0.4900
  • 25 $0.4500
  • 100 $0.4000
  • 1,000 $0.3700
  • 5,000 $0.3500
$0.3500 / $0.4900 Buy Now
Onlinecomponents.com Microcontroller - PIC 16F, FuSa - 8-Bit - 32MHz - 11 I/O - 3.5KB (2K x 14) FLASH - 256 x 8 RAM - 1.8 to 5.5V - 16-QFN (3x3) - T&R. RoHS: Compliant Alternative Product Available
  • 825 $0.8060
  • 1,650 $0.4960
  • 2,475 $0.3927
  • 3,300 $0.3848
$0.3848 / $0.8060 Buy Now
NAC 14KB Flash, 1KB RAM, 10b ADC, 2x PWM, 2x CCP, HLT, WDT, PPS, EUSART, SPI/I2C, XLP SLEEP Mode - Package: 16 QFN 3x3x0.9mm T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $0.5200
  • 100 $0.4700
  • 500 $0.4400
  • 1,000 $0.4200
$0.4200 / $0.5200 Buy Now
DISTI # PIC16F15223T-I/MG
Avnet Silica MCU 8Bit PIC16F15223 PIC RISC 35KB Flash 18V to 55V 16Pin VQFN TR (Alt: PIC16F15223T-I/MG) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F15223T-I/MG
EBV Elektronik MCU 8Bit PIC16F15223 PIC RISC 35KB Flash 18V to 55V 16Pin VQFN TR (Alt: PIC16F15223T-I/MG) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Microcontroller - PIC 16F, FuSa - 8-Bit - 32MHz - 11 I/O - 3.5KB (2K x 14) FLASH - 256 x 8 RAM - 1.8 to 5.5V - 16-QFN (3x3) - T&R. RoHS: Compliant Alternative Product Available
  • 825 $0.8060
  • 1,650 $0.4960
  • 2,475 $0.3927
  • 3,300 $0.3848
$0.3848 / $0.8060 Buy Now

Part Details for PIC16F15223T-I/MG

PIC16F15223T-I/MG CAD Models

  • Part Symbol

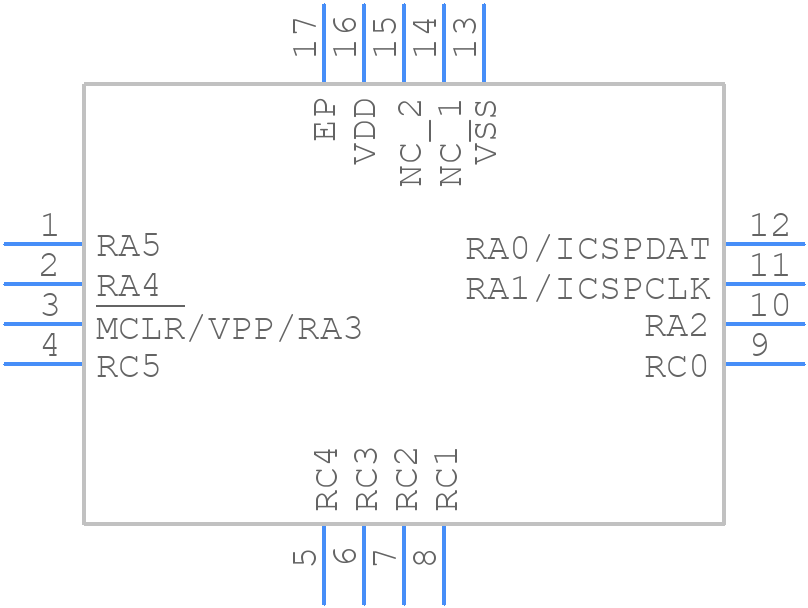

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F15223T-I/MG Part Data Attributes

Parametric Data
PIC16F15223T-I/MG Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F15223T-I/MG Microchip Technology Inc RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PQCC16
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description QFN-16
Reach Compliance Code compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 1.8V MIN @ 16 MHZ
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels NO
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N16
JESD-609 Code e3
Length 3 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 12
Number of Serial I/Os 1
Number of Terminals 16
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC16,.12SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 256
ROM (words) 3584
ROM Programmability FLASH
Seated Height-Max 0.9 mm
Speed 32 MHz
Supply Current-Max 3.6 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
