Microcontrollers and Processors / Microcontrollers / PIC16F15213T-E/SN
Datasheets
PIC16F15213T-E/SN by: Microchip Technology Inc

RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8

Part Details for PIC16F15213T-E/SN by Microchip Technology Inc

Results Overview of PIC16F15213T-E/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC16F15213T-E/SN Information

PIC16F15213T-E/SN by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F15213T-E/SN

Part # Distributor Description Stock Price Buy
DISTI # 150-PIC16F15213T-E/SNCT-ND
DigiKey IC MCU 8BIT 3.5KB FLASH 8SOIC Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 942
In Stock
  • 1 $0.4200
  • 25 $0.3800
  • 100 $0.3500
  • 3,300 $0.3500
$0.3500 / $0.4200 Buy Now
DISTI # PIC16F15213T-E/SN
Avnet Americas 3.5KB FLASH, 256B RAM, 10B ADC, 2X PWM, 2X CCP, HLT, WDT, PPS, EUSART, SPI/I2C, XLP SLEEP MODE - Tape and Reel (Alt: PIC16F15213T-E/SN) RoHS: Not Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 3,300 $0.3541
  • 6,600 $0.3512
  • 13,200 $0.3483
  • 19,800 $0.3454
  • 26,400 $0.3425
$0.3425 / $0.3541 Buy Now
DISTI # 579-PIC16F15213T-ESN
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB Flash, 256B RAM, 10b ADC, 2x PWM, 2x CCP, HLT, WDT, PPS, EUSART, SPI/I2C, XLP SLEEP Mode RoHS: Compliant 3140
  • 1 $0.4200
  • 25 $0.3800
  • 100 $0.3500
$0.3500 / $0.4200 Buy Now
DISTI # PIC16F15213T-E/SN
Microchip Technology Inc 3.5KB, 256B RAM, 6x I/O,ADC, CCP, EUSART, SPI/I2C, SOIC, Projected EOL: 2049-02-21 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $0.4200
  • 25 $0.3800
  • 100 $0.3500
  • 1,000 $0.3200
  • 5,000 $0.3000
$0.3000 / $0.4200 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 825 $0.9620
  • 1,650 $0.5920
  • 2,475 $0.4687
  • 3,300 $0.4593
$0.4593 / $0.9620 Buy Now
DISTI # PIC16F15213T-E/SN
IBS Electronics PIC16F15213T-E/SN by Microchip is an 8-bit microcontroller featuring 3.5 KB Flash, 256B RAM, 256B EEPROM, 16 I/O pins, 10-bit ADC, and operates at 20 MHz with a 1.8V to 5.5V supply range. Min Qty: 3300 Package Multiple: 1 0
  • 3,300 $0.4550
  • 6,600 $0.4485
  • 9,900 $0.4420
$0.4420 / $0.4550 Buy Now
NAC 3.5KB Flash, 256B RAM, 10b ADC, 2x PWM, 2x CCP, HLT, WDT, PPS, EUSART, SPI/I2C, XLP SLEEP Mode, 8 SOIC 3.90mm(.150in) T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $0.4500
  • 100 $0.4000
  • 500 $0.3700
  • 1,000 $0.3600
$0.3600 / $0.4500 Buy Now
LCSC SOIC-8-150mil Microcontrollers (MCU/MPU/SOC) ROHS 25
  • 1 $0.6913
  • 10 $0.6747
  • 30 $0.6641
  • 100 $0.6521
$0.6521 / $0.6913 Buy Now
Master Electronics   RoHS: Compliant 0
  • 825 $0.9620
  • 1,650 $0.5920
  • 2,475 $0.4687
  • 3,300 $0.4593
$0.4593 / $0.9620 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3300 6600
  • 3,300 $0.5833
  • 6,600 $0.5385
$0.5385 / $0.5833 Buy Now
Vyrian Peripheral ICs 1931
RFQ

Part Details for PIC16F15213T-E/SN

PIC16F15213T-E/SN CAD Models

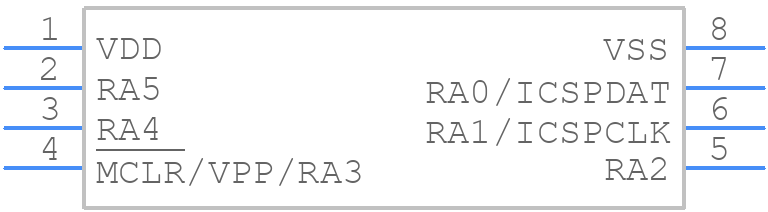

  • Part Symbol

    Part Symbol

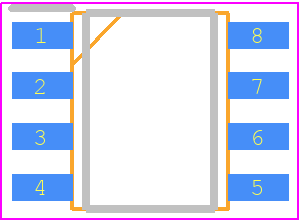

  • Footprint

    footprint

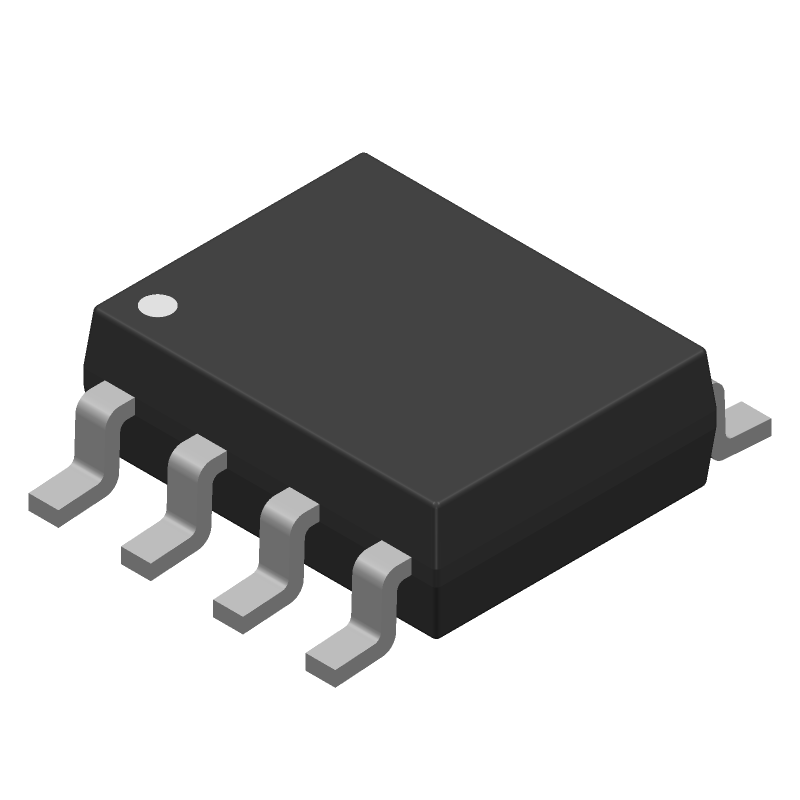

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F15213T-E/SN Part Data Attributes

Parametric Data
PIC16F15213T-E/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F15213T-E/SN Microchip Technology Inc RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description SOIC-8
Reach Compliance Code compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 1.8V MIN @ 16 MHZ
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels NO
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 6
Number of Serial I/Os 1
Number of Terminals 8
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 256
ROM (words) 3584
ROM Programmability FLASH
Seated Height-Max 1.75 mm
Speed 32 MHz
Supply Current-Max 3.6 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 3.9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16F15213T-E/SN

This table gives cross-reference parts and alternative options found for PIC16F15213T-E/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16F15213T-E/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F15213TR-I/SN Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16F152 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213TR-I/SN
PIC16F15213T-I/SN Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213T-I/SN
PIC16F15213-M/SN Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213-M/SN
Part Number Manufacturer Composite Price Description Compare
PIC16F15213-E/SN Microchip Technology Inc $0.3720 RISC Microcontroller, 8-Bit, FLASH, PIC16F152 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213-E/SN
PIC16F15213-E/MF Microchip Technology Inc $0.4142 RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213-E/MF
PIC16F15213-I/SN Microchip Technology Inc $0.4574 RISC Microcontroller, 8-Bit, FLASH, PIC16F152 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213-I/SN
PIC16F15213-E/P Microchip Technology Inc $0.8803 RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDIP8 PIC16F15213T-E/SN vs PIC16F15213-E/P
PIC16F15213TR-E/SN Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16F152 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213TR-E/SN
PIC16F15213T-M/SN Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213T-M/SN
PIC16F15213TR-E/RF Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16F152 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213TR-E/RF
PIC16F15213TR-I/RF Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16F152 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213TR-I/RF
PIC16F15213-M/MF Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213-M/MF
PIC16F15213T-M/MF Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, PIC16 CPU, 32MHz, CMOS, PDSO8 PIC16F15213T-E/SN vs PIC16F15213T-M/MF

PIC16F15213T-E/SN Frequently Asked Questions (FAQ)

  • The PIC16F15213T-E/SN can operate at a maximum clock frequency of 32 MHz.

  • The PIC16F15213T-E/SN has 3.5 KB of flash memory.

  • Yes, the PIC16F15213T-E/SN is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • Yes, the PIC16F15213T-E/SN has 12-bit ADCs with up to 14 channels.

  • No, the PIC16F15213T-E/SN does not have built-in USB capabilities. However, it can be used with external USB controllers or bridges.
