PIC16F1508-E/SO by: Microchip Technology Inc

8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO20, 7.50 MM, LEAD FREE, PLASTIC, SOIC-20

Part Details for PIC16F1508-E/SO by Microchip Technology Inc

Results Overview of PIC16F1508-E/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC16F1508-E/SO Information

PIC16F1508-E/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F1508-E/SO

Part # Distributor Description Stock Price Buy
DISTI # 64T1036
Newark Microcontroller Mcu, 8 Bit, Pic16, 20Mhz, Soic-20, Product Range:Pic16 Family Pic16F150X Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:20Mhz, Program Memory Size:7Kb, No. Of Pins:20Pins, Ic Case/Package:Soic Rohs Compliant: Yes |Microchip PIC16F1508-E/SO RoHS: Compliant Min Qty: 494 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 114 $1.4300
$1.4300 Buy Now
DISTI # PIC16F1508-E/SO-ND
DigiKey IC MCU 8BIT 7KB FLASH 20SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 1 $1.7200
  • 25 $1.5800
  • 100 $1.4300
$1.4300 / $1.7200 Buy Now
DISTI # PIC16F1508-E/SO
Avnet Americas MCU 8-bit PIC16 PIC RISC 7KB Flash 3.3V/5V 20-Pin SOIC W Tube - Rail/Tube (Alt: PIC16F1508-E/SO) RoHS: Compliant Min Qty: 418 Package Multiple: 38 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 418 $1.4896
  • 494 $1.4774
  • 912 $1.4651
  • 2,090 $1.4529
  • 4,180 $1.4407
$1.4407 / $1.4896 Buy Now
DISTI # 579-PIC16F1508-E/SO
Mouser Electronics 8-bit Microcontrollers - MCU 7KB FLASH 256B RAM 18 I/O 10-BIT ADC RoHS: Compliant 848
  • 1 $1.7200
  • 25 $1.5800
  • 114 $1.4300
$1.4300 / $1.7200 Buy Now
DISTI # PIC16F1508-E/SO
Microchip Technology Inc 7KB Flash, 256B RAM, 18 I/O, CLC, CWG, NCO, 10-bit ADC, 2.3V-5.5V, SOIC, Projected EOL: 2039-03-01 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 1249

Alternates Available
  • 1 $1.7200
  • 25 $1.5800
  • 100 $1.4300
  • 1,000 $1.3000
  • 5,000 $1.2500
$1.2500 / $1.7200 Buy Now
DISTI # 70414920
RS PIC16F1508-E/SO,8bit PIC Microcontroller,20MHz,4096 words Flash,20-Pin SOIC Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 33
  • 1 $1.0200
$1.0200 Buy Now
Onlinecomponents.com MCU 8-bit PIC16 PIC RISC 7KB Flash 3.3V/5V Automotive 20-Pin SOIC W Tube RoHS: Compliant 1672 Factory Stock
  • 124 $2.1500
  • 247 $1.6200
  • 371 $1.5100
  • 494 $1.4800
$1.4800 / $2.1500 Buy Now
DISTI # PIC16F1508-E/SO
TME IC: PIC microcontroller, 7kB, 20MHz, 2.3÷5.5VDC, SMD, SO20, PIC16 Min Qty: 1 0
  • 1 $1.7900
  • 5 $1.6700
  • 25 $1.5500
  • 100 $1.4100
$1.4100 / $1.7900 RFQ
DISTI # PIC16F1508-E/SO
IBS Electronics PIC16F1508-E/SO 8BIT PIC MICROCONTROLLER 20MHZ 4096 WORDS FLASH 20-PIN SOIC Min Qty: 418 Package Multiple: 1 0
  • 418 $1.9240
  • 836 $1.9110
  • 1,254 $1.8980
  • 1,672 $1.8980
  • 2,090 $1.8720
$1.8720 / $1.9240 Buy Now
NAC 7KB Flash, 256B RAM, 18 I/O, CLC, CWG, NCO, 10-bit ADC - Package: 20 SOIC .300in TUBE RoHS: Compliant Min Qty: 228 Package Multiple: 38 Container: Tube 0
  • 1 $1.8800
  • 100 $1.6900
  • 500 $1.5600
  • 1,000 $1.5200
$1.5200 / $1.8800 Buy Now
DISTI # PIC16F1508-E/SO
Avnet Silica MCU 8bit PIC16 PIC RISC 7KB Flash 33V5V 20Pin SOIC W Tube (Alt: PIC16F1508-E/SO) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited IC MCU 8BIT 7KB FLASH 20SOIC 76
RFQ
DISTI # PIC16F1508-E/SO
EBV Elektronik MCU 8bit PIC16 PIC RISC 7KB Flash 33V5V 20Pin SOIC W Tube (Alt: PIC16F1508-E/SO) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC16 PIC RISC 7KB Flash 3.3V/5V Automotive 20-Pin SOIC W Tube RoHS: Compliant 1672 Factory Stock
  • 124 $2.1500
  • 247 $1.6200
  • 371 $1.5100
  • 494 $1.4800
$1.4800 / $2.1500 Buy Now
Vyrian Peripheral ICs 690
RFQ

Part Details for PIC16F1508-E/SO

PIC16F1508-E/SO CAD Models

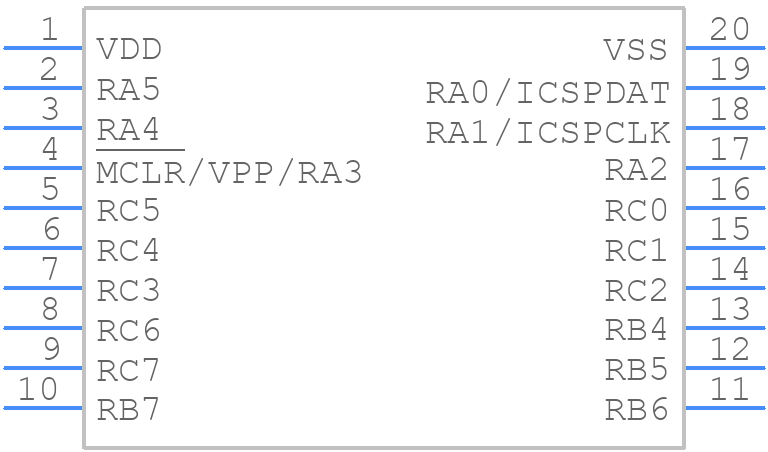

  • Part Symbol

    Part Symbol

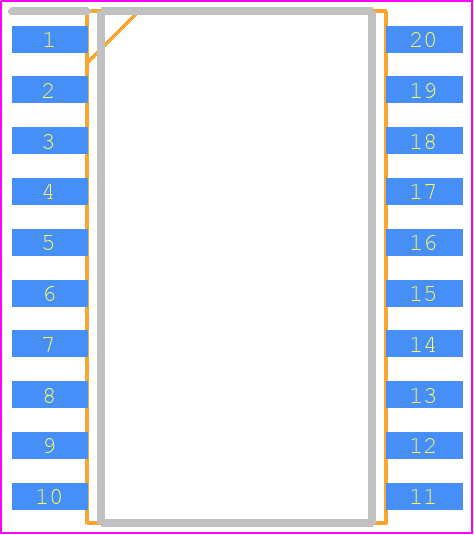

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F1508-E/SO Part Data Attributes

Parametric Data
PIC16F1508-E/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F1508-E/SO Microchip Technology Inc 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO20, 7.50 MM, LEAD FREE, PLASTIC, SOIC-20
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Pin Count 20
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature OPERATES AT 2.3 V MINIMUM SUPPLY AT 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 20 MHz
DAC Channels YES
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 12.8 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 18
Number of Serial I/Os 1
Number of Terminals 20
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 256
ROM (words) 7168
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 2.65 mm
Speed 20 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

PIC16F1508-E/SO Related Parts

PIC16F1508-E/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16F1508 is 20 MHz.

  • The PIC16F1508 has 3584 bytes of flash memory.

  • Yes, the PIC16F1508 is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • No, the PIC16F1508 does not have built-in EEPROM. However, it does have a 128-byte data EEPROM emulation using the flash memory.

  • The current consumption of the PIC16F1508 in sleep mode is typically around 20 nA.
