PIC12F629T-E/SN by: Microchip Technology Inc

8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8

Part Details for PIC12F629T-E/SN by Microchip Technology Inc

Results Overview of PIC12F629T-E/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Industrial Automation Healthcare Medical Imaging Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Robotics and Drones

PIC12F629T-E/SN Information

PIC12F629T-E/SN by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC12F629T-E/SN

Part # Distributor Description Stock Price Buy
DISTI # 92C4336
Newark Microcontroller Mcu, 8 Bit, Pic12, 20Mhz, Soic-8, Product Range:Pic12 Family Pic12F6Xx Series Microcontrollers, Device Core:Pic12, Operating Frequency Max:20Mhz, Program Memory Size:1.75Kb, No. Of Pins:8Pins, Ic Case/Package:Soic Rohs Compliant: Yes |Microchip PIC12F629T-E/SN RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $1.4000
$1.4000 Buy Now
DISTI # PIC12F629T-E/SNCT-ND
DigiKey IC MCU 8BIT 1.75KB FLASH 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 60969
In Stock
  • 1 $1.4000
  • 3,300 $1.4000
$1.4000 Buy Now
DISTI # PIC12F629T-E/SN
Avnet Americas MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin SOIC N T/R - Tape and Reel (Alt: PIC12F629T-E/SN) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 3,300 $1.3663
  • 6,600 $1.3439
  • 13,200 $1.3215
  • 19,800 $1.2992
  • 26,400 $1.2768
$1.2768 / $1.3663 Buy Now
DISTI # 579-PIC12F629T-E/SN
Mouser Electronics 8-bit Microcontrollers - MCU 1.75KB 64 RAM 6 I/O Ext Temp SOIC8 RoHS: Compliant 4131
  • 1 $1.4000
$1.4000 Buy Now
DISTI # PIC12F629T-E/SN
Microchip Technology Inc 8 pin PIC with 10 bit A2D, flash, comparator, midrange core, SOIC, Projected EOL: 2034-10-09 COO: Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $1.2600
  • 25 $1.2300
  • 100 $1.2000
  • 1,000 $1.1000
  • 5,000 $1.0500
$1.0500 / $1.2600 Buy Now
DISTI # 70451424
RS 1.75 KB Flash, 64 RAM, 6 I/O8 SOIC 3.90mm(.150in) T/R Min Qty: 3300 Package Multiple: 1 Lead time: 33 Weeks, 0 Days Container: Bulk 0
  • 3,300 $1.6800
$1.6800 RFQ
Onlinecomponents.com Microcontroller - PIC 12F - 8-Bit - 20MHz - 5 I/O - 1.75KB (1K x 14) FLASH - 128 x 8 EEPROM - 64 x 8 RAM - 2 to 5.5V - 8-SOIC - T&R. RoHS: Compliant 0
  • 825 $3.8100
  • 1,650 $2.0200
  • 2,475 $1.4200
  • 3,300 $1.3900
$1.3900 / $3.8100 Buy Now
DISTI # PIC12F629T-E/SN
IBS Electronics MCU 8-BIT PIC RISC 1.75KB FLASH 2.5V/3.3V/5V AUTOMOTIVE 8-PIN SOIC N T/R Min Qty: 3300 Package Multiple: 1 0
  • 3,300 $1.7550
$1.7550 Buy Now
NAC 1.75 KB Flash, 64 RAM, 6 I/O - Package: 8 SOIC 3.90mm(.150in) T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $1.7200
  • 100 $1.5600
  • 500 $1.4400
  • 1,000 $1.4000
$1.4000 / $1.7200 Buy Now
DISTI # PIC12F629T-E/SN
Avnet Silica MCU 8bit PIC12 PIC RISC 175KB Flash 25V33V5V 8Pin SOIC N TR (Alt: PIC12F629T-E/SN) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC12F629T-E/SN
EBV Elektronik MCU 8bit PIC12 PIC RISC 175KB Flash 25V33V5V 8Pin SOIC N TR (Alt: PIC12F629T-E/SN) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Microcontroller - PIC 12F - 8-Bit - 20MHz - 5 I/O - 1.75KB (1K x 14) FLASH - 128 x 8 EEPROM - 64 x 8 RAM - 2 to 5.5V - 8-SOIC - T&R. RoHS: Compliant 0
  • 825 $3.8100
  • 1,650 $2.0200
  • 2,475 $1.4200
  • 3,300 $1.3900
$1.3900 / $3.8100 Buy Now
Vyrian Peripheral ICs 32384
RFQ

Part Details for PIC12F629T-E/SN

PIC12F629T-E/SN CAD Models

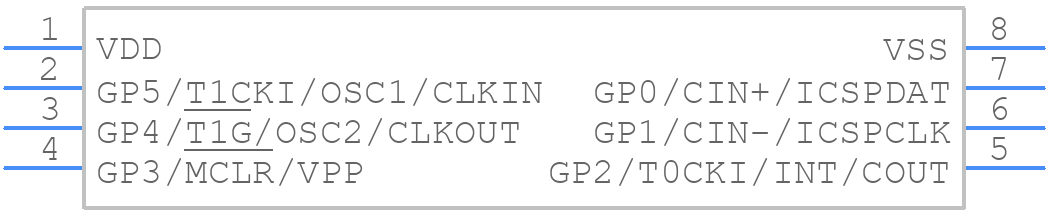

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC12F629T-E/SN Part Data Attributes

Parametric Data
PIC12F629T-E/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC12F629T-E/SN Microchip Technology Inc 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Mentor OK true
Has ADC NO
Additional Feature OPERATE AT 4MHZ AT 2VMIN
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC12
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Low Power Mode NO
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 6
Number of Terminals 8
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.23
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 64
ROM (words) 1792
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.75 mm
Speed 20 MHz
Supply Current-Max 3 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC12F629T-E/SN

This table gives cross-reference parts and alternative options found for PIC12F629T-E/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC12F629T-E/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC12F629-E/SN Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 PIC12F629T-E/SN vs PIC12F629-E/SN
PIC12F629-I/SN Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 PIC12F629T-E/SN vs PIC12F629-I/SN
Part Number Manufacturer Composite Price Description Compare
PIC12HV609-E/MF Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8 PIC12F629T-E/SN vs PIC12HV609-E/MF
PIC12HV609T-I/SN Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, LEAD FREE, PLASTIC, SOIC-8 PIC12F629T-E/SN vs PIC12HV609T-I/SN
PIC12F629-I/SN Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 PIC12F629T-E/SN vs PIC12F629-I/SN
PIC12F629-E/SN Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 PIC12F629T-E/SN vs PIC12F629-E/SN
PIC12F629T-I/MF Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, MLF-8 PIC12F629T-E/SN vs PIC12F629T-I/MF
PIC12HV609-I/SN Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, LEAD FREE, PLASTIC, SOIC-8 PIC12F629T-E/SN vs PIC12HV609-I/SN
PIC12HV609-E/MS Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, PLASTIC, MSOP-8 PIC12F629T-E/SN vs PIC12HV609-E/MS
PIC12F629T-I/MD Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 4 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 PIC12F629T-E/SN vs PIC12F629T-I/MD
PIC12F629-E/MF Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, MLF-8 PIC12F629T-E/SN vs PIC12F629-E/MF
PIC12F629-E/P Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8 PIC12F629T-E/SN vs PIC12F629-E/P

PIC12F629T-E/SN Frequently Asked Questions (FAQ)
