Part Symbol
-

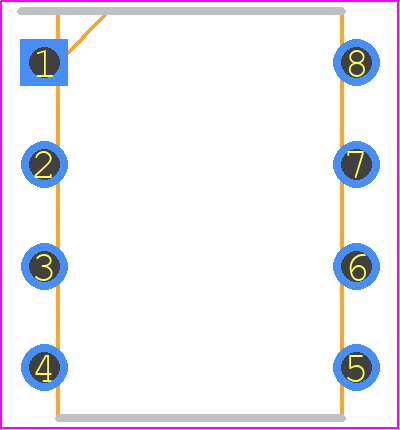

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PIC12F629-I/P by Microchip Technology Inc
Results Overview of PIC12F629-I/P by Microchip Technology Inc
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Industrial Automation
Healthcare
Medical Imaging
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Robotics and Drones
PIC12F629-I/P Information
PIC12F629-I/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC12F629-I/P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67K0822
|
Newark | Microcontroller Mcu, 8 Bit, Pic12, 20Mhz, Dip-8, Product Range:Pic12 Family Pic12F6Xx Series Microcontrollers, Device Core:Pic12, Operating Frequency Max:20Mhz, Program Memory Size:1.75Kb, No. Of Pins:8Pins, Ic Case/Package:Dip Rohs Compliant: Yes |Microchip PIC12F629-I/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2083 |
|
$1.4100 | Buy Now |
|
DISTI #
26AC2961
|
Newark | Pdip 1.75 Kb Flash, 64 Ram, 6 I/O Rohs Compliant: Yes |Microchip PIC12F629-I/P RoHS: Compliant Min Qty: 60 Package Multiple: 1 Date Code: 0 Container: Bulk | 58 |
|
$1.4100 | Buy Now |
|
DISTI #
PIC12F629-I/P-ND
|
DigiKey | IC MCU 8BIT 1.75KB FLASH 8DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
50122 In Stock |
|
$1.3400 | Buy Now |
|
DISTI #
PIC12F629-I/P
|
Avnet Americas | 8 Bit MCU, Flash, PIC12 Family PIC12F6xx Series Microcontrollers, PIC12, 20 MHz, 1.75 KB, 8 Pins - Rail/Tube (Alt: PIC12F629-I/P) RoHS: Compliant Min Qty: 60 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tube | 58 |
|
$1.2882 / $1.3785 | Buy Now |
|
DISTI #
67K0822
|
Avnet Americas | 8 Bit MCU, Flash, PIC12 Family PIC12F6xx Series Microcontrollers, PIC12, 20 MHz, 1.75 KB, 8 Pins - Bulk (Alt: 67K0822) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 4 Days Container: Bulk | 2083 Partner Stock |
|
$1.4700 | Buy Now |
|
DISTI #
579-PIC12F629IP
|
Mouser Electronics | 8-bit Microcontrollers - MCU 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 RoHS: Compliant | 4058 |
|
$1.4100 | Buy Now |
|
DISTI #
PIC12F629-I/P
|
Microchip Technology Inc | MCU CMOS 8 LD 1K FLASH, PDIP, Projected EOL: 2034-08-21 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube |
0 Alternates Available |
|
$1.0500 / $1.2500 | Buy Now |
|
DISTI #
70045474
|
RS | 8-Pin 1.75 KB Flash 64 RAM 6 I/O Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4400 / $1.7000 | RFQ |
|
|
Future Electronics | PIC12F Series 1.75 kB Flash 64 B SRAM Through Hole 8-Bit Microcontroller -PDIP-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Container: Tube | 23540Tube |
|
$1.3500 / $1.4300 | Buy Now |
|
|
Onlinecomponents.com | 8-Pin Flash-Based - 8-Bit CMOS Microcontroller - 20MHz - 2.0V-5.5V - 6I/O - Industrial Temperature - PDIP Package RoHS: Compliant |
1800 In Stock |
|
$1.3300 / $1.5500 | Buy Now |
Part Details for PIC12F629-I/P
PIC12F629-I/P CAD Models
PIC12F629-I/P Part Data Attributes
|
|
PIC12F629-I/P
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PIC12F629-I/P
Microchip Technology Inc
8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| parentfamilyid | 1365204 | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | DIP | |
| Package Description | DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Schedule B Code | 8542.31.00.00 | |
| Factory Lead Time | 5 Weeks, 4 Days | |
| kg CO2e/kg | 11.6 | |
| Average Weight (mg) | 569.675 | |
| CO2e (mg) | 6608.23 | |
| Samacsys Description | PIC12F629-I/P, 8 bit PIC Microcontroller 20MHz 1024 x 14 words, 128 B Flash, 64 B RAM, 8-Pin PDIP | |
| Samacsys Manufacturer | Microchip | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Total Weight | 486.7 | |
| Category CO2 Kg | 465 | |
| CO2 | 226315.5 | |
| Compliance Temperature Grade | Industrial: -40C to +85C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-01-21 | |
| CAS Accounted for Wt | 80 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 1333-86-4 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.22 | |
| Has ADC | NO | |
| Additional Feature | OPERATE AT 4MHZ AT 2VMIN | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | PIC12 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.271 mm | |
| Low Power Mode | NO | |
| Number of External Interrupts | 1 | |
| Number of I/O Lines | 6 | |
| Number of Terminals | 8 | |
| Number of Timers | 5 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | NO | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 64 | |
| ROM (words) | 1792 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 5.334 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 3 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for PIC12F629-I/P
This table gives cross-reference parts and alternative options found for PIC12F629-I/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC12F629-I/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PIC12F629-E/P | Microchip Technology Inc | $0.7352 | 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8 | PIC12F629-I/P vs PIC12F629-E/P |
PIC12F629-I/P Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the PIC12F629-I/P is 20 MHz.
-
The PIC12F629-I/P has 1.75 KB of flash memory.
-
Yes, the PIC12F629-I/P is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.
-
No, the PIC12F629-I/P does not have built-in ADCs. However, it can be used with external ADCs or other analog-to-digital conversion methods.
-
Yes, the PIC12F629-I/P has a low power consumption of 100 nA in sleep mode and 1.5 mA in active mode, making it suitable for low-power applications.
