Microcontrollers and Processors / Microcontrollers / PIC12F629-I/MF
Datasheets
PIC12F629-I/MF by: Microchip Technology Inc

8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, MLF-8

Part Details for PIC12F629-I/MF by Microchip Technology Inc

Results Overview of PIC12F629-I/MF by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Industrial Automation Healthcare Medical Imaging Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Robotics and Drones

PIC12F629-I/MF Information

PIC12F629-I/MF by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC12F629-I/MF

Part # Distributor Description Stock Price Buy
DISTI # 96K3772
Newark Microcontroller Mcu, 8 Bit, Pic12, 20Mhz, Dfn-8, Product Range:Pic12 Family Pic12F6Xx Series Microcontrollers, Device Core:Pic12, Operating Frequency Max:20Mhz, Program Memory Size:1.75Kb, No. Of Pins:8Pins, Ic Case/Package:Dfn Rohs Compliant: Yes |Microchip PIC12F629-I/MF RoHS: Compliant Min Qty: 540 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.2400
$1.2400 Buy Now
DISTI # 28AC0672
Newark Dfn-S 1.75 Kb Flash, 64 Ram, 6 I/O Rohs Compliant: Yes |Microchip PIC12F629-I/MF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
Buy Now
DISTI # PIC12F629-I/MF-ND
DigiKey IC MCU 8BIT 1.75KB FLASH 8DFN-S Min Qty: 1 Lead time: 7 Weeks Container: Tube 590
In Stock
  • 1 $1.2600
  • 25 $1.2300
  • 100 $1.2000
$1.2000 / $1.2600 Buy Now
DISTI # PIC12F629-I/MF
Avnet Americas MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin DFN-S EP Tube - Rail/Tube (Alt: PIC12F629-I/MF) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Tube 91
  • 1 $1.2454
$1.2454 Buy Now
DISTI # 579-PIC12F629-I/MF
Mouser Electronics 8-bit Microcontrollers - MCU 1.75KB 64 RAM 6 I/O Ind Temp DFN8 RoHS: Compliant 3268
  • 1 $1.2400
  • 25 $1.2000
$1.2000 / $1.2400 Buy Now
DISTI # PIC12F629-I/MF
Microchip Technology Inc No description available, DFN-S, Projected EOL: 2034-08-21 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 1920

Alternates Available
  • 1 $1.2600
  • 25 $1.2300
  • 100 $1.2000
  • 1,000 $1.1000
  • 5,000 $1.0500
$1.0500 / $1.2600 Buy Now
DISTI # 70413880
RS MCU 1.75K Flash 128B EEPROM 64B RAM DFN8 Min Qty: 540 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 540 $2.4200
  • 5,400 $2.3000
  • 27,000 $2.1800
  • 54,000 $2.0600
$2.0600 / $2.4200 RFQ
Onlinecomponents.com Microcontroller - PIC 12F - 8-Bit - 20MHz - 5 I/O - 1.75KB (1K x 14) FLASH Program Memory - 128 x 8 EEPROM - 64 x 8 RAM - 2 to 5.5V - 8-DFN-S (6x5). RoHS: Compliant 1920 Factory Stock
  • 135 $1.9000
  • 270 $1.4300
  • 405 $1.3300
  • 540 $1.3000
$1.3000 / $1.9000 Buy Now
NAC 1.75 KB Flash, 64 RAM, 6 I/O - Package: 8 DFN-S 6x5x0.9mm TUBE RoHS: Compliant Min Qty: 240 Package Multiple: 60 Container: Tube 0
  • 1 $1.7200
  • 100 $1.5600
  • 500 $1.4400
  • 1,000 $1.4000
$1.4000 / $1.7200 Buy Now
DISTI # PIC12F629-I/MF
Avnet Silica MCU 8bit PIC12 PIC RISC 175KB Flash 25V33V5V 8Pin DFNS EP Tube (Alt: PIC12F629-I/MF) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics Microcontroller - PIC 12F - 8-Bit - 20MHz - 5 I/O - 1.75KB (1K x 14) FLASH Program Memory - 128 x 8 EEPROM - 64 x 8 RAM - 2 to 5.5V - 8-DFN-S (6x5). RoHS: Compliant 1920 Factory Stock
  • 135 $1.9000
  • 270 $1.4300
  • 405 $1.3300
  • 540 $1.3000
$1.3000 / $1.9000 Buy Now

Part Details for PIC12F629-I/MF

PIC12F629-I/MF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

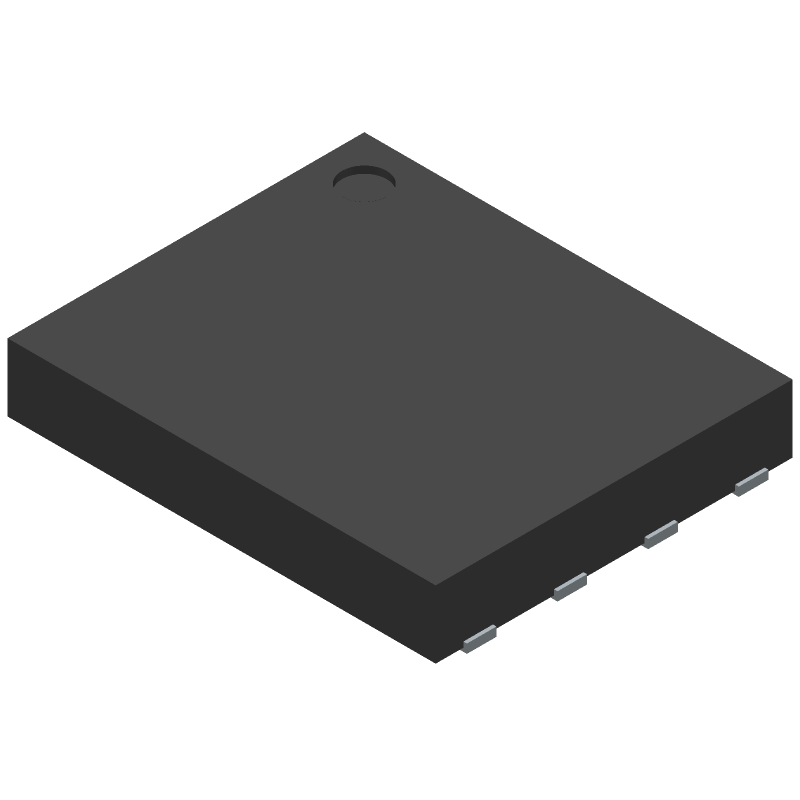

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC12F629-I/MF Part Data Attributes

Parametric Data
PIC12F629-I/MF Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC12F629-I/MF Microchip Technology Inc 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, MLF-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DFN
Package Description MLF-8
Pin Count 8
Manufacturer Package Code MLF
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Has ADC NO
Additional Feature OPERATE AT 4MHZ AT 2VMIN
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC12
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-N8
JESD-609 Code e3
Length 6 mm
Low Power Mode NO
Moisture Sensitivity Level 1
Number of External Interrupts 1
Number of I/O Lines 6
Number of Terminals 8
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.20,25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 64
ROM (words) 1792
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1 mm
Speed 20 MHz
Supply Current-Max 3 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC12F629-I/MF

This table gives cross-reference parts and alternative options found for PIC12F629-I/MF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC12F629-I/MF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC12F629-E/MF Microchip Technology Inc $1.5900 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, MLF-8 PIC12F629-I/MF vs PIC12F629-E/MF
PIC12F629T-I/MF Microchip Technology Inc $1.7000 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, MLF-8 PIC12F629-I/MF vs PIC12F629T-I/MF
Part Number Manufacturer Composite Price Description Compare
PIC12HV609-I/MS Microchip Technology Inc $1.1320 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, PLASTIC, MSOP-8 PIC12F629-I/MF vs PIC12HV609-I/MS
PIC12F629-E/MD Microchip Technology Inc $1.3958 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 4 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 PIC12F629-I/MF vs PIC12F629-E/MD
PIC12HV609T-E/MS Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, PLASTIC, MSOP-8 PIC12F629-I/MF vs PIC12HV609T-E/MS
PIC12F629-E/SNG Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 PIC12F629-I/MF vs PIC12F629-E/SNG
PIC12F629-C/SN Microchip Technology Inc Check for Price 8-Pin, Flash-Based 8-Bit CMOS Microcontrollers, 0C to +70C, 8-SOIC 150mil, TUBE PIC12F629-I/MF vs PIC12F629-C/SN
PIC12F629T-E/MD Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 4 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 PIC12F629-I/MF vs PIC12F629T-E/MD
PIC12F629T-I/SN020G Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 PIC12F629-I/MF vs PIC12F629T-I/SN020G
PIC12F629T-I/SNG Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 PIC12F629-I/MF vs PIC12F629T-I/SNG
PIC12F629T-E/SNV08 Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PDSO8 PIC12F629-I/MF vs PIC12F629T-E/SNV08
PIC12HV609T-E/MD Microchip Technology Inc Check for Price 8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO8, 4 X 4 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, DFN-8 PIC12F629-I/MF vs PIC12HV609T-E/MD

PIC12F629-I/MF Related Parts

PIC12F629-I/MF Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the PIC12F629 is 20 MHz.

  • The PIC12F629 consumes approximately 100 nA in sleep mode.

  • Yes, the PIC12F629 can operate with a power supply voltage range of 2.0V to 5.5V.

  • The PIC12F629 has 6 I/O pins.

  • Yes, the PIC12F629 has 128 bytes of built-in EEPROM.
